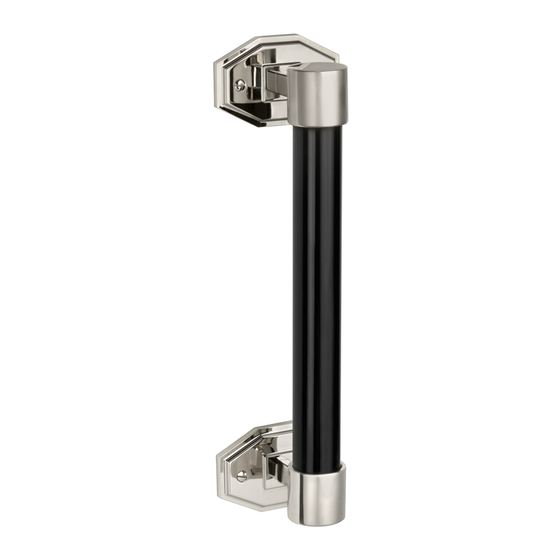

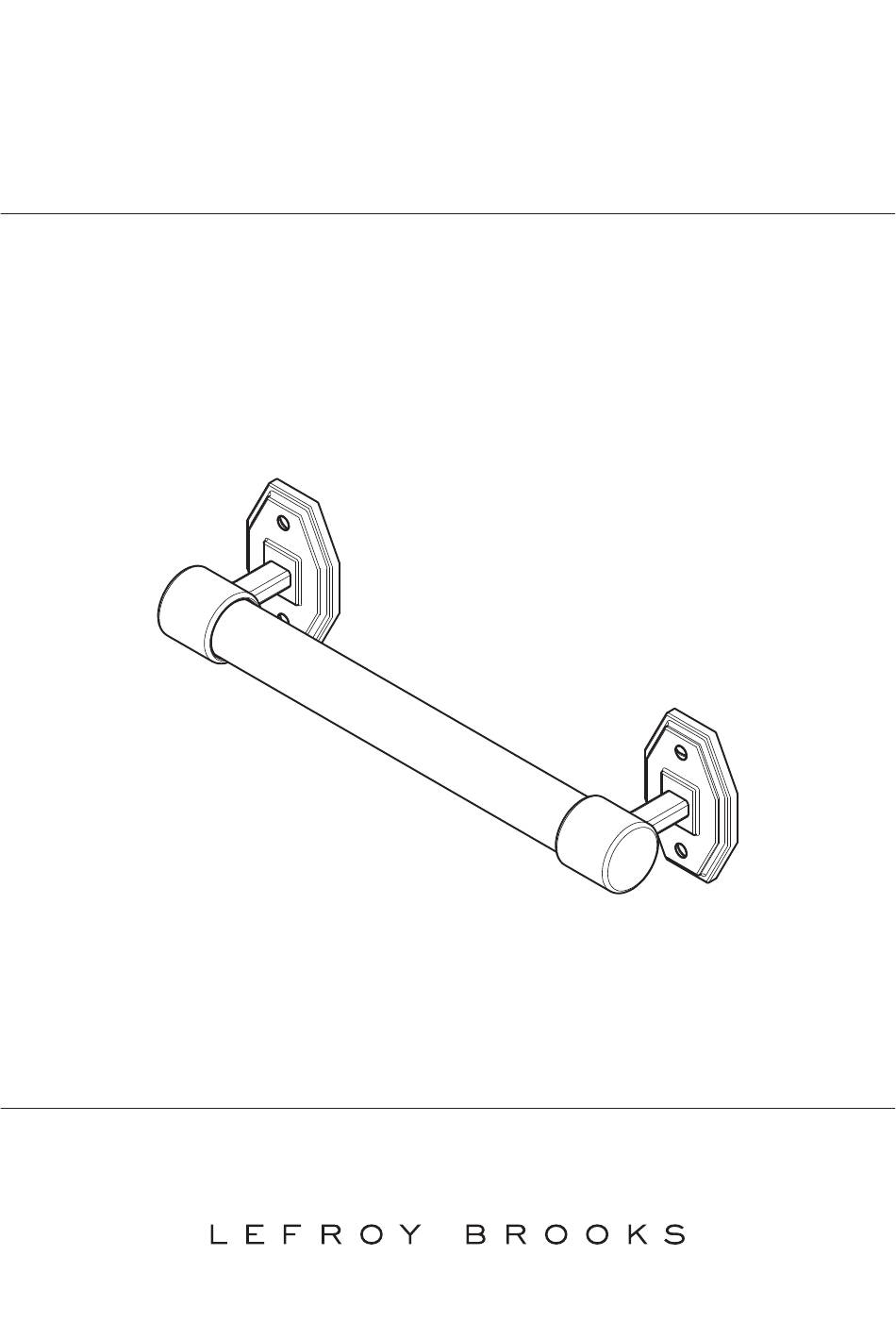

- Page 1 MK 4660 MACKINTOSH GRAB BAR INSTALLATION GUIDE...
- Page 2 DIMENSIONS 282mm centres 60mm 90mm centres 82mm 342mm TOOLS REQUIRED Powered drill with Ø6mm drill bit Flat blade screwdriver Spirit level...
- Page 3 INSTALLATION 1 Mark the hole positions on the mounting 2 Drill holes using a Ø6mm drill bit. surface. Use a spirit level to ensure the grab 3 Insert the wall plugs into the holes then secure bar is level. the grab bar using the screws supplied.
- Page 4 20.065.208A / JANUARY 2016 CUSTOMER SUPPORT +4 4 (0)1992 70 8 316 L E F R O Y B R O O K S . C O . U K Whilst every effort is made to ensure the accuracy of these, they are subject to change without notice as part of the company’s product development process.
