Transformerless off grid solar inverter charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.sigineer.com
Transformerless Off Grid
Solar Inverter Charger

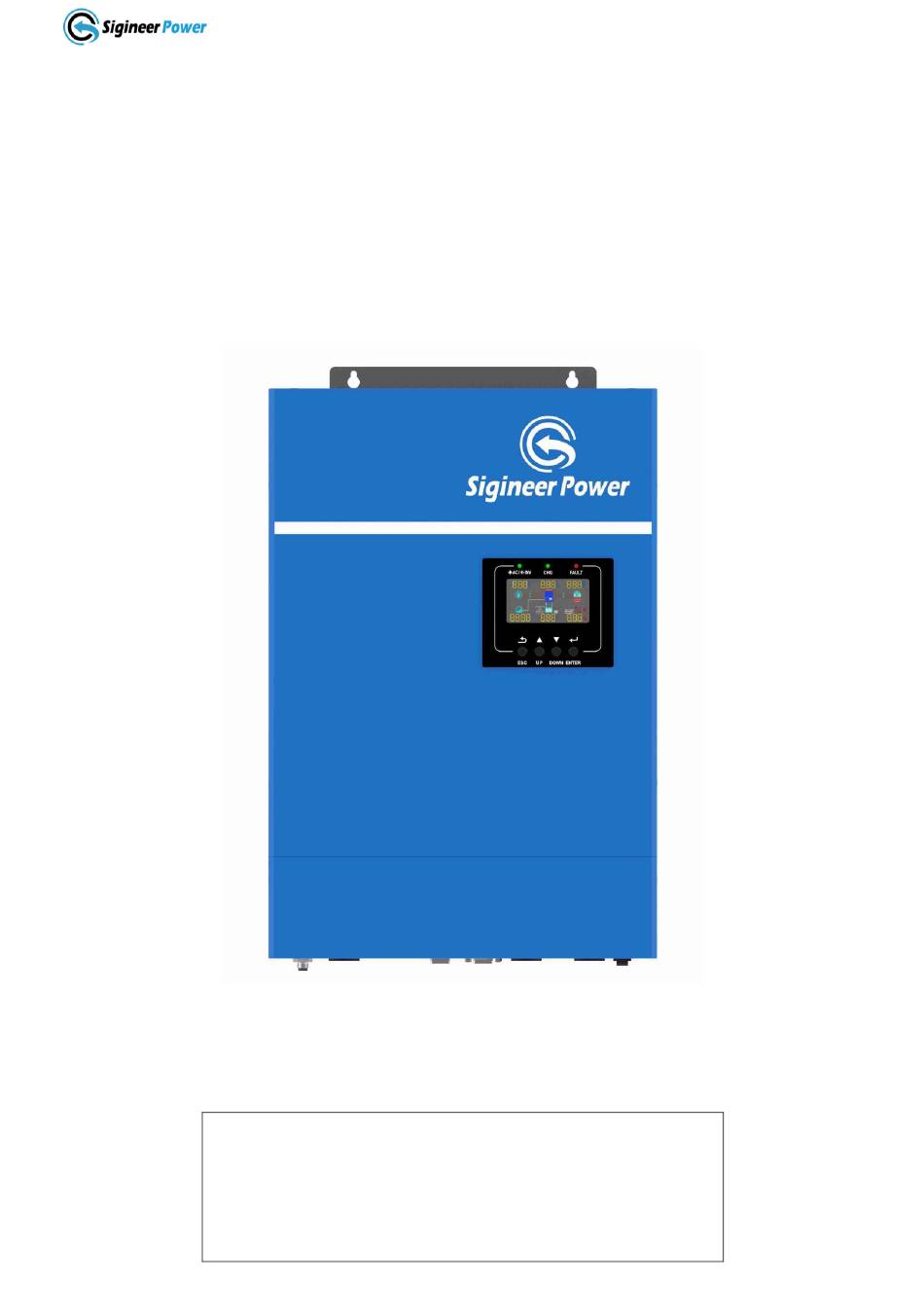

User's Manual
For Model:
M3048BP
M5000H-48BP
Version 2.1 (PN:M35202111222)
