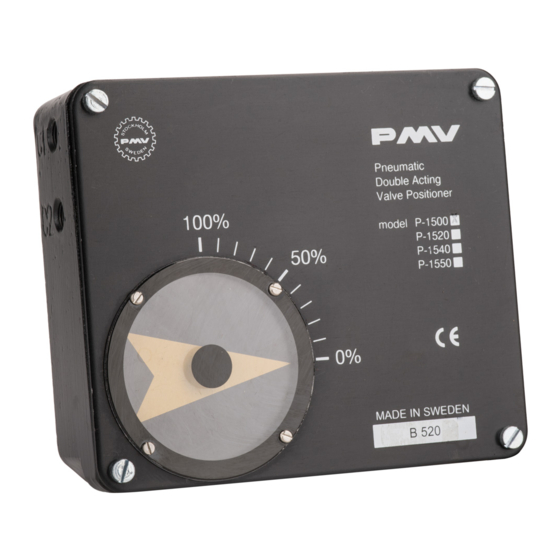

- Page 1 Manual P-1500 P-1520 P-1700 P-1720 P-1710 P-1730 P-1700 P-1500 – 1 – P-1500/P-1700-manual from PMV 14321-99.6...
- Page 2 également que leur mise en service est interdite tant qu'il n'a pas été constaté que cette macine/application satisfait également à la directive 89/392/CEE. Cette déclaration de fournisseur est valable pour les types d'appareils PMV suivants: P-1500, P-1520, P-1700, P-1710, P-1720, P-1730. Mr. Jan-Eric Andersson President, Palmstiernas Instrument AB –...
- Page 3 Appropriate precautions should be taken to protect units while in storage. Warehouse storage Stored in original PMV shipping containers, units should be stored in an environmentally controlled area, i.e. clean, cool (15-26°C, 6~80°F) and dry, out of direct sunlight or weather exposure.
- Page 4 The cam (6), lower arm (8), spring (14), balance arm (19) and spool (39) will move so that the pressure difference created in the cylinder will counter-balance the external force. – 4 – P-1500/P-1700-manual from PMV 14321-99.6...
- Page 5 The PMV Rotary Positioner Air preparation For large pressure variations of the supply air, a The PMV Rotary Positioner can work with supply pressure regulator should be mounted between pressure up to 10 bar (150 psi). In order to obtain...
- Page 6 Figure 10 Turn the spring and the top spring guide clockwise to allow space for the free end of the spring when reducing the amount of effective spring length. Fig 11 Figure 11 – 6 – P-1500/P-1700-manual from PMV 14321-99.6...
- Page 7 (fully open for units piped to close on increasing signal or fully closed on units piped to open on increasing signal). – 7 – P-1500/P-1700-manual from PMV 14321-99.6...
- Page 8 Remove the screws. Fig 21 Figure 20 Carefully remove the valve body. Fit so that the spool slides easily and does not bind against the balance arm. Fig 22 Figure 21 – 8 – P-1500/P-1700-manual from PMV 14321-99.6...
- Page 9 Replace the cover to check the setting of the indicator. Make fine adjustments if necessary. Tighten the locking screw. Do not tighten screw too hard, otherwise the indicator will crack. Mount the cover and tighten the four screws. – 9 – P-1500/P-1700-manual from PMV 14321-99.6...
-
Page 10: Exploded Drawing
Exploded drawing – 10 – P-1500/P-1700-manual from PMV 14321-99.6... - Page 11 Dimension drawing P1500/P-1700 – 11 – P-1500/P-1700-manual from PMV 14321-99.6...
- Page 12 Fax: +46 (0) 54 52 14 42 Internet: www.pmvusa.com E-mail: info@palmstiernas.se Internet: www.palmstiernas.se (The information in this brochure is subject to change without notice.) Distributor (The information in this manual is subject to change without notice.) – 12 – P-1500/P-1700-manual from PMV 14321-99.6...
