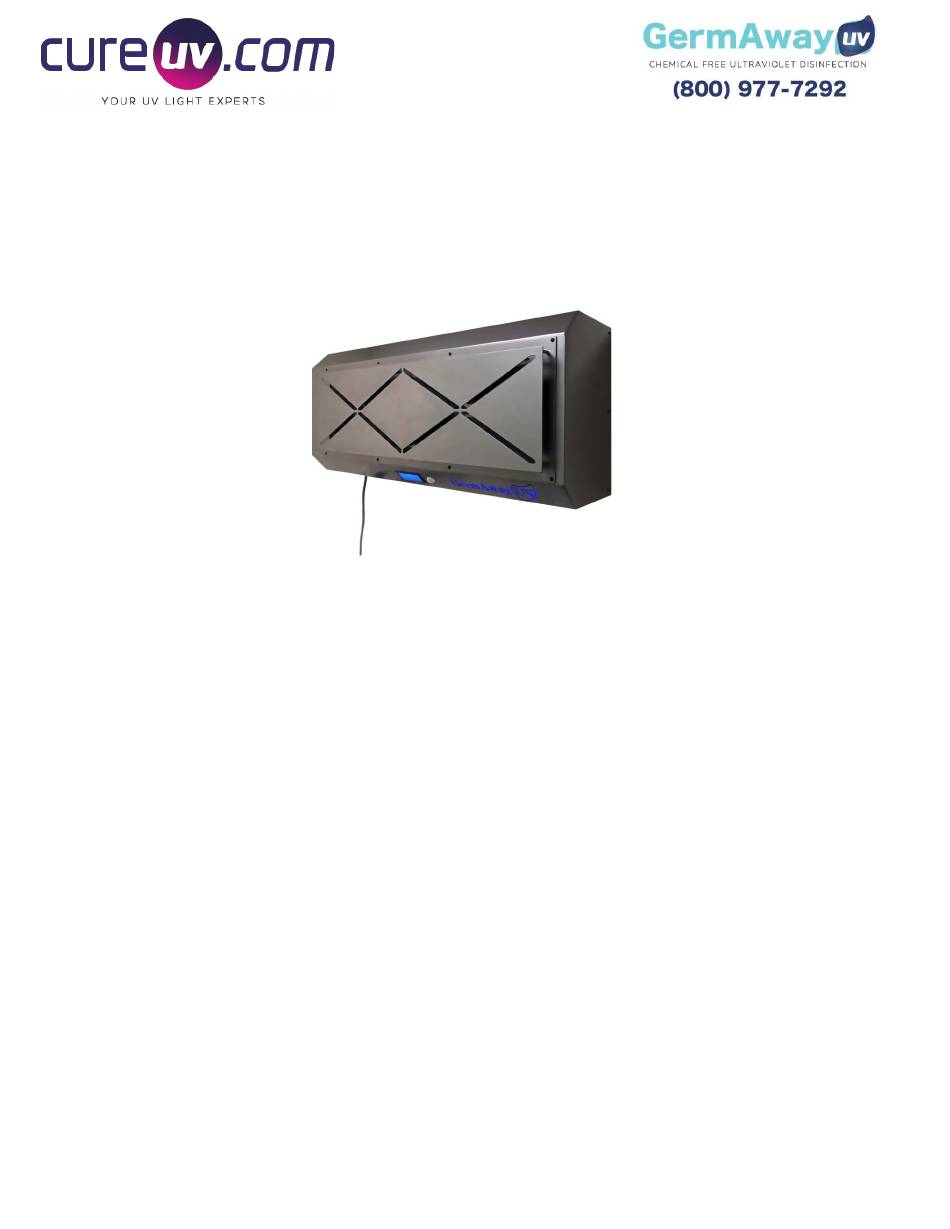

Centurion High Occupancy 240 Watt Ultraviolet Air
Sanitizer and Disinfection System Operation Manual
SKU: 201105
The Centurion is a state of the art device utilizing a cross-flow filtration
system and UV-C germicidal bulbs to catch and eradicate nearly all viral
particles, germs, bacteria, and other contaminants from the air without risk
of UV light exposure to you or your clients. A premiere SMART device, the
Centurion offers web enabled application to control, schedule, and monitor
the air in any given space right from your smartphone!
5 YEAR
WARRANTY
Advertisement
Related Manuals for GermAway 201105
Summary of Contents for GermAway 201105
- Page 1 Centurion High Occupancy 240 Watt Ultraviolet Air Sanitizer and Disinfection System Operation Manual SKU: 201105 The Centurion is a state of the art device utilizing a cross-flow filtration system and UV-C germicidal bulbs to catch and eradicate nearly all viral particles, germs, bacteria, and other contaminants from the air without risk of UV light exposure to you or your clients.
- Page 2 GermAwayUV Centurion Mounting Instructions (Mount unit at a minimum of 7 feet from the floor) Installing into Wooden Studs: Before you get started on your GermAwayUV Centurion installation, here are a few things you’ll want to have on hand: Items Needed: Stud Finder: For drywall installation, make sure you’re mounting to a stud for •...
- Page 3 3. Mark and drill your pilot holes. These are the small holes that will allow your mounting screws to enter the wall. You’ll probably want a partner for this. • Hold the GermAwayUV mounting bracket up to the wall. Use a level to make sure it’s straight.
- Page 4 Installing into Concrete: Before you get started on your GermAwayUV Centurion installation, here are a few things you’ll want to have on hand: Items Needed: • Power Drill: We highly recommend using a power drill to speed things up for this project.
- Page 5 Attach the 5/32” drill bit to your drill, and drill holes where you marked • using the mount. 3. Attach the mounting bracket to the wall. Hold your mount to the wall and drive the 4 concrete anchors into the pilot holes you made in the previous step. Drive them until the concrete anchors are snug but DO NOT OVERTIGHTEN.
- Page 6 Bulb Installation and Replacement Step 1: Remove Front Door with Filter by unscrewing 8 captive screws. Step 2: Release the bulb from the socket by pushing the red button on bulb the socket. Take out bulb by sliding away from socket and releasing bulb from bulb clips as shown.
- Page 7 Using the Centurion System 1. To power on your Centurion device, activate the “ON/OFF” switch on the front of the machine, which will make an audible click when activated. Note: The only way to turn the Centurion device off is by physically switching the power button, the remote controlled “Stop”...
- Page 8 Menu Options Overview: 1.Motion Clean (ON/OFF) Allows you to enable/disable the device’s Motion Clean sensor, which makes the machine kick on and run a 30-minute cycle whenever someone enters the room—ensuring air circulation. 2.Fan Speed Allows you to pick one of four fan speeds: Low, Medium, High, and Maximum. The device defaults to Medium.
- Page 9 Centurion WIFI Setup & App Overview 1. Download the App from IOS Marketplace or Google Play Store You can search “GermAway UV Smart Control” 1.1. 1.2. QR for IOS 1.3. QR for Android 5 YEAR WARRANTY...
- Page 10 2. Once the app is installed your first screen will look like this example. 2.1. 2.2. Please login or create and account 3. Login with your newly created account 3.1. 3.2. Enter with email and password 5 YEAR WARRANTY...
- Page 11 4. ou will now be on the home screen of the app 4.1. Select “+ Add New Device” 4.2. 5. This will be the next page and the start of setting up a centurion 5.1. 5.2. Enter the credential (Only required for first device) 5.2.1.
- Page 12 6. The next page after Wi-Fi will be this example 6.1. 6.2. Do not hit ready until the next few steps. 6.2.1. Place your mobile device to the side 5 YEAR WARRANTY...
- Page 13 6.3.4. Hit OK on the Remote 6.3.5. You will have 1 minute to connect your phone to the device for pairing 6.3.5.1. Pick up your mobile device 6.3.5.2. Do NOT close the “GermAway UV Smart Conrol App” 5 YEAR WARRANTY...
- Page 14 6.3.5.3. Leave the app open and go to WIFI Setup as if you are connecting to a new network 6.3.5.4. Select the “CenturionXXXXX” Device 5 YEAR WARRANTY...
- Page 15 6.3.5.5. Your mobile device should now both look like this 6.3.5.5.1. 6.3.5.5.2. 5 YEAR WARRANTY...
- Page 16 7. Once you see Device Connected on the centurion please navigate back to “GermAway UV Smart Conrol App” 7.1. 7.2. You may now hit ready 5 YEAR WARRANTY...
- Page 17 8. You will proceed to this page 8.1. If the centurion still reads “Device Connected” you 8.1.1. can select “already connected” and the device will begin connecting to Wi-Fi 8.1.1.1.1. If the centurion reads nothing you can go back to steps 6.2 WI-FI setup 5 YEAR WARRANTY...
- Page 18 9. If everything is correct and the system connects you will see this example 9.1. 9.1.1. This means the device is working on connecting 9.1.2. If it fails it will notify you otherwise the app will continue 5 YEAR WARRANTY...
- Page 19 9.2. 9.2.1. If you see this page congratulations! Create a name such as the location and hit finish. 10. Once finished it will take you to the home page 10.1. 5 YEAR WARRANTY...
- Page 20 11. From the home page to enter the device controls *HOLD your finger on the device* 12. You may now begin operating your new centurion! 12.1. 12.2. Continue on for App Control Overview or hit the help button for in App details. 5 YEAR WARRANTY...
- Page 21 App Control Overview Quick Control: Allows easy control of the device, including Fan Speed and Sleep Timer. 5 YEAR WARRANTY...
- Page 22 Scheduler: Allows weekly scheduling of run times 5 YEAR WARRANTY...
- Page 23 Motion Clean: Alerts you when the motion sensor goes off, triggering a device run. 5 YEAR WARRANTY...
