Primary Harness (H1), 12-pins connector wiring description

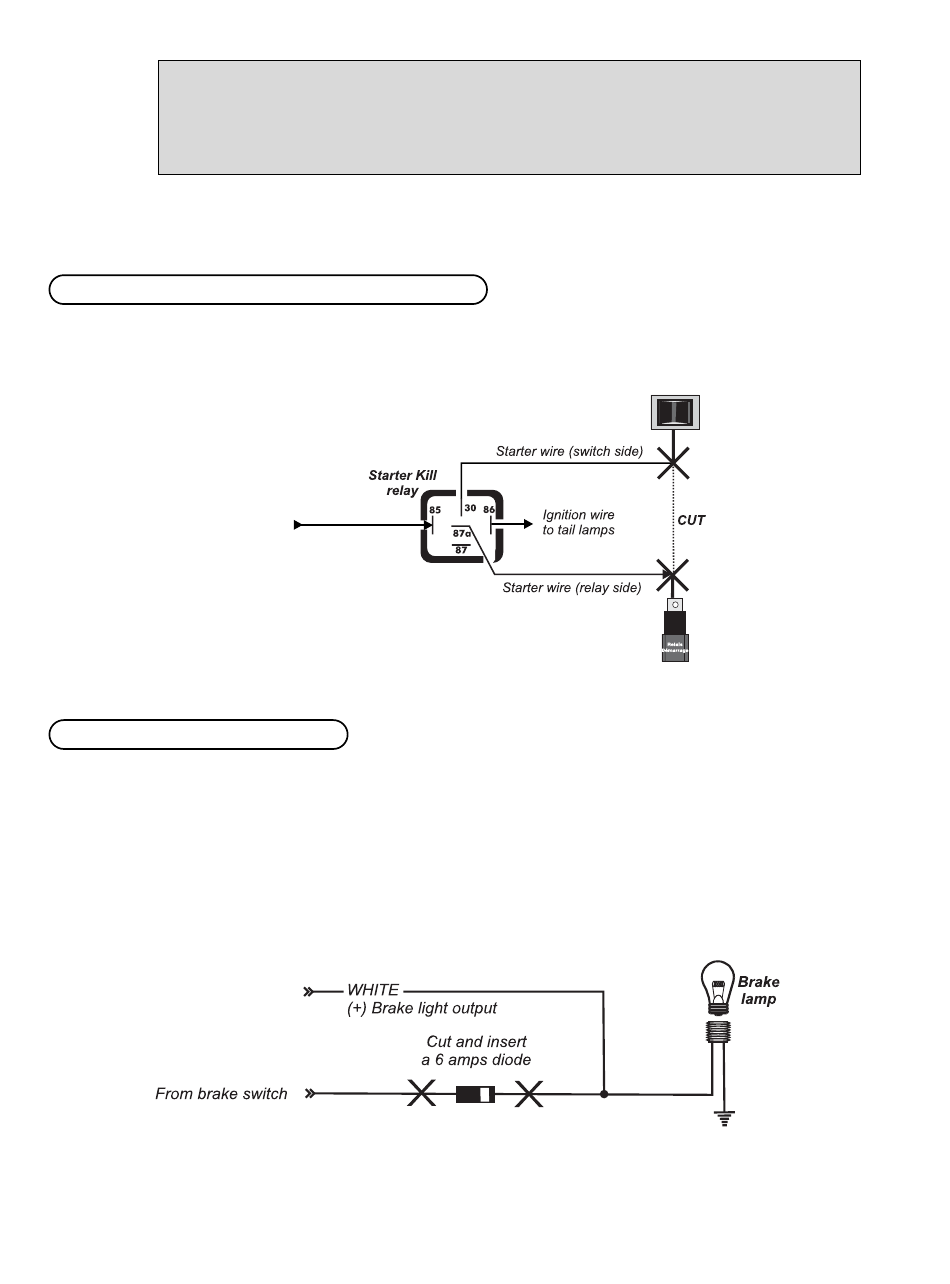

H1/1 ORANGE Ground-when-armed output (-) 500 mA
This wire supplies a (-) 500 mA ground as long as the system is armed. This output ceases as soon as the system is dis-
armed. The orange wire is pre-wired to control the Directed Electronics 8618 Starter Kill relay included.
From Orange H 1/1 (-)
Ground-when-armed output
H1/2 WHITE (+) Brake lamp output
As shipped, this wire should be connected to the (+) brake lamp wire. This wire will flash the brake light once
when armed and twice when disarmed. It also flashes the brake lamp when security system is triggered. A diode
must be inserted inline with the factory brake lamp wire.
4
IMPORTANT! : You must use non-conductive grease on each of the connectors of the
security system to avoid premature deterioration of the pins and connectors. Failure
to do so could cause oxidation and prevent the security system from functioning cor-
rectly thus voiding the product warranty.
