Senquip ORB-X1 Quick Start Manual

1. What is in the Box?

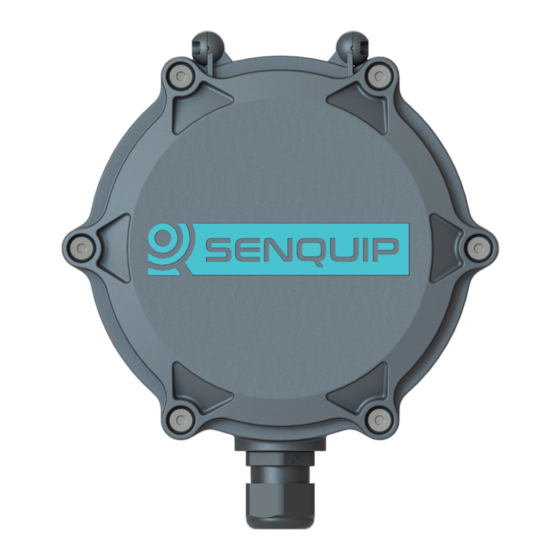

ORB-X1
Allen key

3. Insert SIM Card

5. Enter Setup Mode

Press the setup
button to enter
setup mode and
activate the ORB
webserver. The
green light will
flash.

7. Configure the ORB

Configure Wi-Fi or
GSM connectivity
using the Network
tab. Save settings.
If using GSM, set
the correct APN for
your SIM.
Close the lid to exit
setup mode.

8. Mounting the ORB

ORB-X1 Quick Start Guide
Mounting brackets
Gland inserts
Mounting screws
If using GSM and the
ORB does not contain
an internal SIM, insert
a SIM card, note the
orientation carefully.
The image on left shows the
ORB brackets in the wall
mount position; to pole
mount rotate the brackets
by 180 degrees. To wall
mount, remove the brackets
and screw directly into the
ORB mount points.

2. Open the ORB

4. Apply Power

6. Connect to the Webserver

Use a phone or tablet to connect
to the ORB's Wi-Fi using the SSID
and Wi-FI password located
under the lid.
Using a web-browser, go to
192.168.4.1.
"admin" and the ORB's setup
password to access the ORB's
webserver.

8. Access your Data

Create an
account on the
Senquip Portal
(portal.senquip.
com) to view
data and
configure your
ORB.

7. LED Status Guide

STATUS NETWORK
Off Off
Flash (1Hz) Off
On Flash (1Hz)
On On
Fast Flash Fast Flash
Off Fast Flash
Slow Flash Off
Using the 3mm Allen
key provided, loosen
the 6 cover screws
ensuring that all 6
screws have ejected
before opening.
Apply power to
pin 1 and ground
to pin 2 of the
header or insert 4
x AA batteries.
The green light
will go on and
orange light will
flash.
Enter username
Meaning
Device is sleeping
Setup Mode
No internet connection
Internet connection
Factory Reset
Firmware Update
Pre-charge mode
