Summary of Contents for POLTI Vaporetto Lecospira Parquet

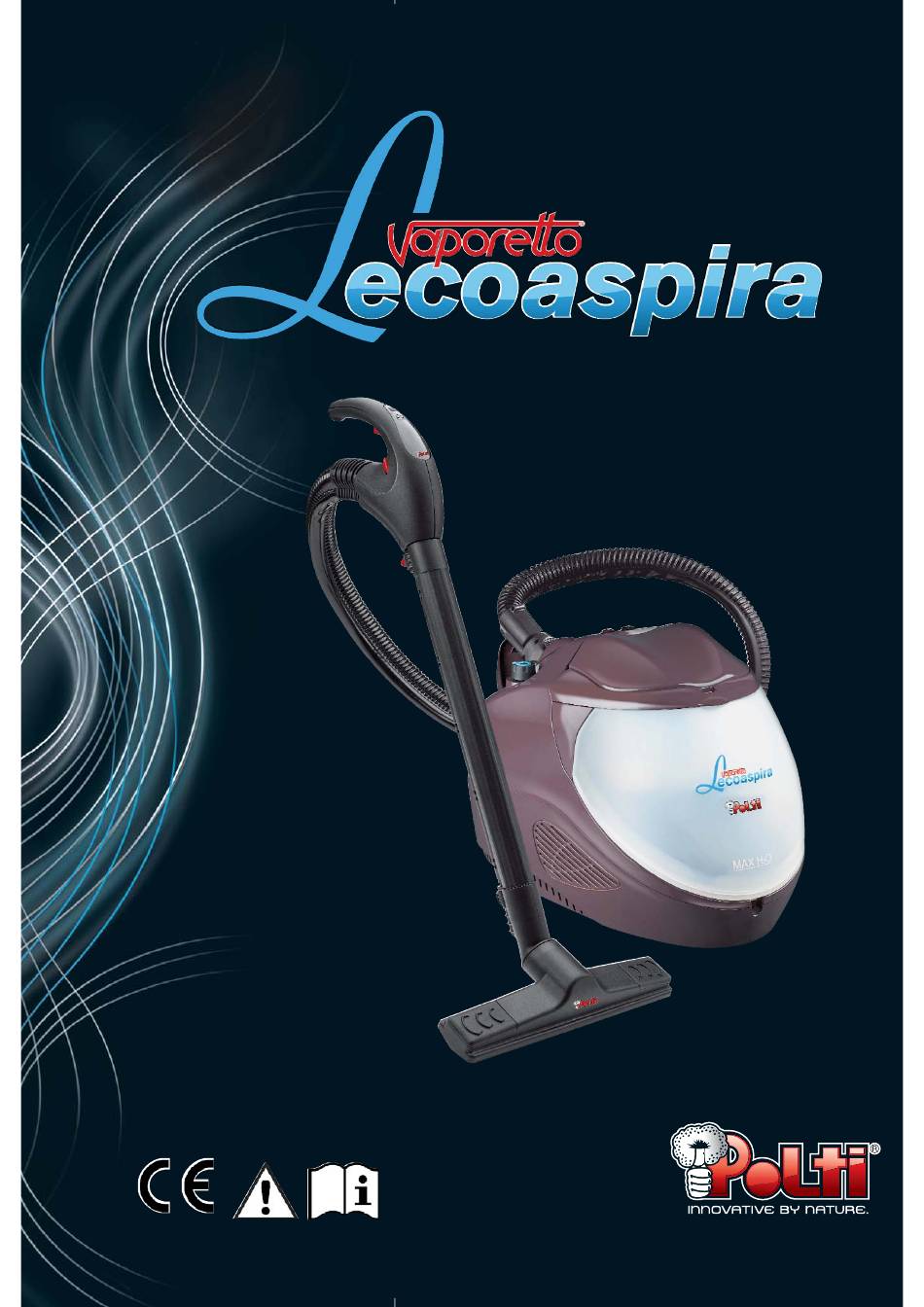

  • Page 1 PARQUET...
  • Page 2 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 6a Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11c Fig. 12 Fig. 11a Fig. 11b Fig. B Fig. C Fig. D Fig. A1 Fig. A2 Fig.
  • Page 3 A4 A2 OPTIONAL S1 S2 S4...

  • Page 4: Suction Accessories

    LECOASPIRA PARQUET D1) 200 mm window cleaning insert for stem+suction nozzle 1) Main switch D2) 130 mm window cleaning insert for 2) Boiler button – terracotta / parquet floor steam+suction nozzle function D3) Bristle insert for steam+suction nozzle 2A) Parquet function indicator light E) 120°...
  • Page 5 The heart of the filtration system is represented by the exclusive “Eco-Active” water filter, patented by Polti. The “Eco-Active” water filter uses the natural purifying force of water to trap dirt, preventing dispersion of dust into the environment. In addition, the HEPA filter collects impurities including pollen as well as dust mites.

  • Page 6: Safety Warnings

    LECOASPIRA PARQUET PRECAUTIONS KEEP THESE INSTRUCTIONS Read these instructions carefully before using the appliance. Any use which does not comply with these instructions will invalidate the warranty. SAFETY WARNINGS Risk of electric shock and/or short circuit: - The wiring system to which the appliance is connected must always comply with the laws in force. - Before connecting the appliance, make sure that the mains voltage is the same as the voltage indica- ted on the data label of the appliance and that the power outlet is connected to earth.
  • Page 7 This allows avoiding scale formation and protec- ting the metal walls of the boiler. KALSTOP FP 2003 can be found in small appliance stores and Polti service centres. Alternatively, use a 50/50 mixture of tap water and demineralised water.

  • Page 8: Correct Use Of The Product

    Polti S.p.A. declines all liability for any damage or accident deriving from any use of this appliance which is not in conformity with the instructions contained in this booklet.

  • Page 9: Preparing For Use

    LECOASPIRA PARQUET Lecoaspira Parquet is a multi-function appliance which, depending on the need and type of clea- ning you want to do, can be used: - Just as a vacuum to remove dust from surfaces. In this case, remember to add water to the dirt collection container (see Paragraph 1 of the “preparing for use”) - Just as a steam cleaner to sanitise surfaces.
  • Page 10 Do not use only demineralised water but mix it as described above with tap water. We recommend you use original Polti products only, as products of other brands may not be suitable for use in Polti products and could cause unwelcome problems. Never use distilled water or scented water.

  • Page 11: Telescopic Suction Tube

    LECOASPIRA PARQUET 4.2) STEAM ONLY MODE Press the boiler button - terracotta/parquet floor function (2). Wait for the pressure indicator lamp (4) to come on. This indicates that the appliance is ready for use. By pressing the steam button (A5) on the handle you can dispense steam. To stop the steam flow, simply release the button (A5).

  • Page 12: Connecting The Accessories

    LECOASPIRA PARQUET 5.4) CONNECTING THE ACCESSORIES All the Vaporetto Lecoaspira accessories can be connected directly to the connecting accessories (A1) or to the extension tubes (B) or (B1), previously assembled (see paragraph 5.1). To connect the specific accessories for the suction and steam features (B-B1-C-D-E) proceed as follows: - Move the locknut (B2) of the accessory, if present, to the OPEN position (Fig.
  • Page 13 LECOASPIRA PARQUET 5.5) ASSEMBLY INSERTS To fit the inserts on the universal brush (C): To fit the insert (C1 - C2 - C3), move outwards the two slides (C4) on the back of the brush. Fit the insert into the lower part of the brush and block it by moving the slides (C4) inwards. To fit the inserts on the steam-suction nozzle (D): To fit the insert (D1 - D2 - D3), first insert the external side (1c), then turn it until it clicks into place (2c).
  • Page 14 LECOASPIRA PARQUET A - ORDINARY CLEANING A1) HARD FLOORS (MARBLE, GRANITE, TILE) ACCESSORIES TO BE USED: extension tubes (B-B1) or telescopic suction tube (I) only in suc- tion mode, universal brush (C) with insert, as per the following table: REFERENCE ACCESSORIES PICTURE FUNCTION...
  • Page 15 LECOASPIRA PARQUET A2) CARPETS/RUGS N.B. Before treating delicate fabrics with steam, consult the manufacturer’s instructions and al- ways carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred. ACCESSORIES TO BE USED: extension tubes (B-B1) or telescopic suction tube (I) only in suc- tion mode, universal brush (C) with insert, as per the following table: REFERENCE...
  • Page 16 LECOASPIRA PARQUET A3) PARQUET AND TERRACOTTA The parquet function is specifically for cleaning parquet and delicate floors. The function involves the combined action of a delicate intermittent flow of steam with adequate suction force. Delicate surfaces must always be cleaned using the special parquet cloth (O3) provided, fitted onto the uni- versal brush(C) (Fig.

  • Page 17: Vacuum Function

    LECOASPIRA PARQUET PARQUET AND TERRACOTTA VACUUM FUNCTION To vacuum up dirt and dust on parquet/terracotta Press the suction button (A4) to begin vacuuming. Adjust suction to level 2 (see paragraph 4.1) to vacuum up dust or liquid. To stop suction, just press the button (A4) once. WASHING FUNCTION To wash parquet or delicate floors N.B.
  • Page 18 LECOASPIRA PARQUET A4) BATHROOMS/TAPS AND FITTINGS/KITCHEN WORK SURFACES ACCESSORIES TO BE USED: 120º accessory (E) with insert as shown in the following table: REFERENCE ACCESSORIES PICTURE FUNCTION LETTER 120º accessory + steam Steam delivery* lance + coloured brush E+E1 + E3 + O2 (to reach hidden cor- + cloth ners and to remove...
  • Page 19 LECOASPIRA PARQUET A5) TILED WALLS ACCESSORIES TO BE USED: steam + suction nozzle (D) with insert as per the following table: REFERENCE LET- ACCESSORIES PICTURE FUNCTION Steam + suction nozzle To vacuum and clean and 200 mm window D + D1 large surfaces with...
  • Page 20 LECOASPIRA PARQUET B - EXTRAORDINARY CLEANING B1) GLASS/MIRRORS/SHOWER CUBICLE ACCESSORIES TO BE USED: steam + suction nozzle (D) with insert as per the following table: REFERENCE ACCESSORIES PHOTO FUNCTION LETTER Steam nozzle + Vacuum/steam cleaning suction window D + D1 for large surfaces cleaning fitting 200 mm Steam nozzle +...
  • Page 21 LECOASPIRA PARQUET B2) REMOVING STAINS FROM CARPETS/UPHOLSTERY ACCESSORIES TO BE USED: accessory 120° (E) with accessory as per the following table: REFERENCE ACCESSORIES PHOTO FUNCTION LETTER Suction / 120º accessory + cloth E + O2 steam delivery STEAM-VACUUM FUNCTION To eliminate a specific mark Switch on the boiler and set the steam pressure according to how dirty the surface to be treated is, following the instructions in the relative paragraph (4.2).
  • Page 22 LECOASPIRA PARQUET B3) UPHOLSTERY/WALL COVERINGS/CAR INTERIORS N.B. Before treating leather or delicate fabrics with steam, consult the manufacturer’s instructions and always carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred.
  • Page 23 LECOASPIRA PARQUET UPHOLSTERY/WALL COVERINGS/CAR INTERIORS VACUUM FUNCTION To vacuum up dust, human hair and animal hair. Press the suction button (A4) to begin vacuuming. To vacuum up dust, adjust suction to level 2 (see paragraph 4.1). To stop suction, just press the button (A4) once. STEAM-VACUUM FUNCTION Clean fabrics, eliminate mites and unpleasant odours Before steaming surfaces, we recommend vacuuming up any hair or dust, using the vacuum...
  • Page 24 LECOASPIRA PARQUET B4) BEDS/MATTRESSES ACCESSORIES TO BE USED: suction nozzle (G), steam/suction nozzle (D) with accessory as per the following table: REFERENCE ACCESSORIES PICTURE FUNCTION LETTER Upholstery suction noz- Suction Steam+suction nozzle + bristle insert + terry D + D3 + O1 Steam delivery* cloth *After fitting the bristled insert (D3), the steam + suction nozzle (D) must be covered with the terry...
  • Page 25 LECOASPIRA PARQUET B5) LIMESCALE/SPACE BETWEEN TILES ACCESSORIES TO BE USED: accessory 120° (E) with accessory as per the following table: REFERENCE ACCESSORIES PICTURE FUNCTION LETTER Accessory 120° + small To remove dirt with the suction nozzle + colou- E + E2 + E3 steam, wiping the surfa- red brushes ce and vacuuming.
  • Page 26 LECOASPIRA PARQUET B6) DOUBLE CURTAINS ACCESSORIES TO BE USED: steam/suction nozzle (D) with insert as per the following table: REFERENCE ACCESSORIES PICTURE FUNCTION LETTER Steam nozzle+ bristle D + D3 + O1 Steam delivery insert + terry cloth N.B. After having assembled the bristle insert, the steam + suction nozzle must be covered with the cloth supplied (O1).

  • Page 27: Steam Function

    Do not swallow. Keep out of the reach of children. CONTAINS: Eugenol, Citral, Cinnamal* Contents: 100 ml Bioecologico is available in pine or citrus scents. Bioecologico is available to purchase from your local Polti retailer. *May cause allergic reaction (in direct contact with the skin).

  • Page 28: Turbo Brush

    Vaporetto Lecoaspira (Mod. PFEU0021). The iron can be purchased from Polti service centres and the best electrical appliance stores. • Plug the built-in plug (A6)of the iron (3) into the built-in socket (10) switch on the appliance by pres- sing the main switch ((1), and then proceed as indicated in paragraph 4.2.

  • Page 29: Mini Turbo Brush

    When surfaces and fabrics are sanitised using the Steam Disinfector, the risk of contagion deriving from surface contamination is drastically reduced. The Steam Disinfector is a Polti exclusive and is only available from the best electrical appliance stores.

  • Page 30: Cable Storage

    Separate all the components and rinse them under running water. (If the filter sponge has tears, replace it. To purchase one, contact an authorized Polti Service centre). After drying the various components of the “Eco-Active ” water filter, reinsert the water filter assem- bly, in the water container (20).

  • Page 31: General Maintenance

    LECOASPIRA PARQUET • Replace the filter with a new one if it is torn. • The filter should be cleaned every 4 months. • To correctly position the HEPA filter (17) make sure that it is lodged in its housings (19) and is then blocked by the lever (18) (Fig.14).

  • Page 32: Troubleshooting

    LECOASPIRA PARQUET TROUBLESHOOTING PROBLEM CAUSE SOLUTION The vacuum does not start No power Check the cable, plug and socket You can hear Air in the boiler circuit Switch off the appliance, leave it to the boiler refilling cool, and repeat the operations of pump running constantly chapters 3 and 4.
