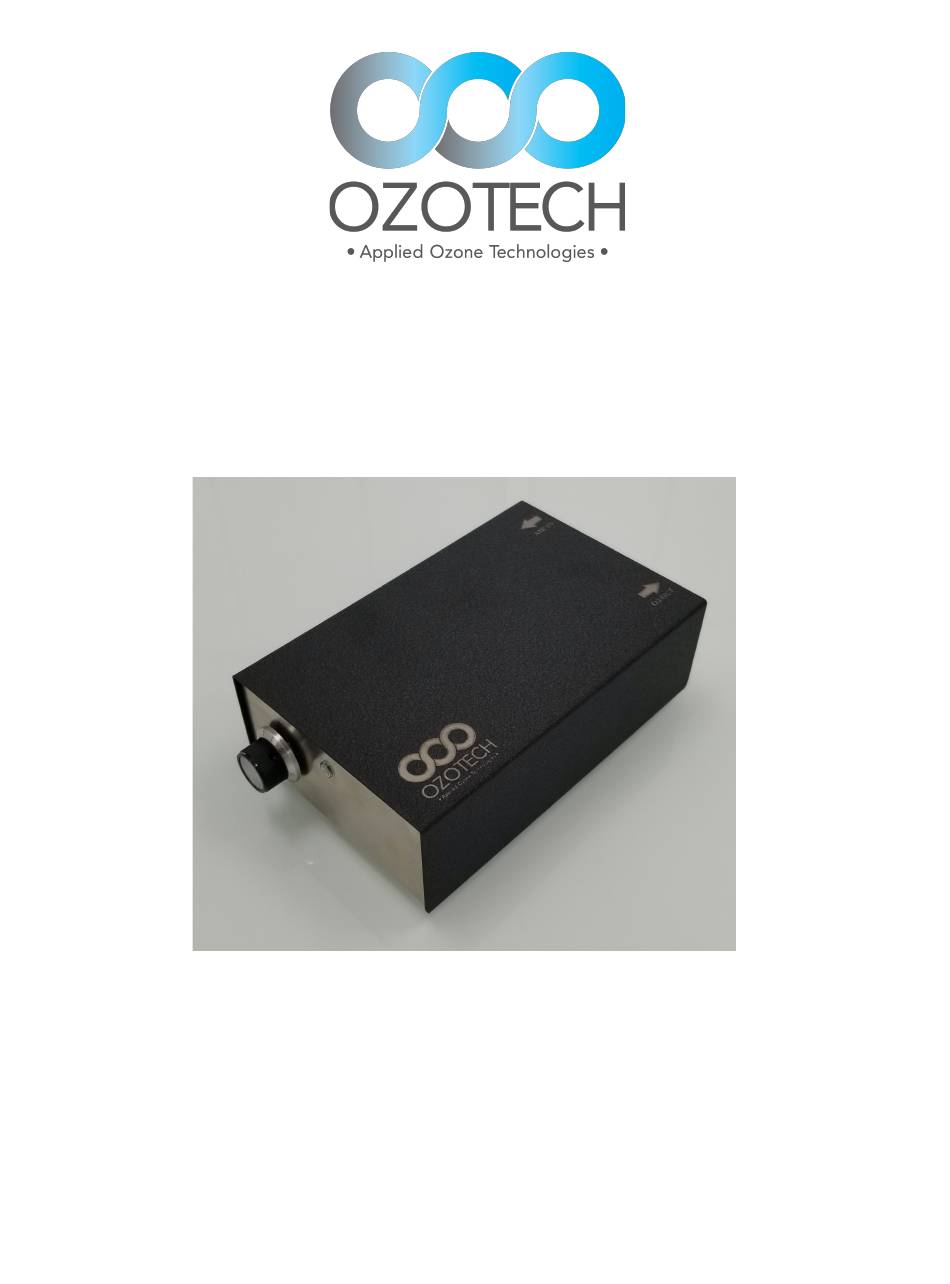

- Page 1 Owner's Manual Poseidon Series Ozone Generators Designed and Manufactured Exclusively by Ozotech, Inc.
-
Page 2: Table Of Contents
Table of Contents 1.0 Limited Warranty 2.0 Service Returns 3.0 Caution 4.0 Theory of Operation 4.1 “Pulse Modulated” Corona Discharge Ozone Generation 5.0 Operating Conditions 5.1 Operating Environment 5.2 Input Power Requirements 6.0 Maintenance 6.1 Ozone Generator Maintenance 6.2 Corona Discharge Cell Servicing 7.0 Spare/Replacement Parts 8.0 Fusing 9.0 Troubleshooting Guide... -
Page 3: Limited Warranty
1.0 Limited Warranty Ozotech, Inc., warrants the Poseidon series ozone generators to be free from defects in parts and workmanship for (12) months from date of invoice, under conditions of normal use. The corona discharge cell is warrantied against catastrophic electrical failure for 3 years from date of invoice. All other parts, repaired or replaced, will be warranted only for the remainder of the original warranty period. -
Page 4: Service Returns
Shipments that are not factory authorized will be refused. It is recommended that you ship with a reputable and reliable shipping company, and that the contents of the package are insured. Ozotech, Inc., accepts no responsibility for damage or loss of equipment in transit. -
Page 5: Caution
! The equipment must be operated using a properly grounded electrical circuit that is protected by either a fuse or circuit breaker. ! Ozotech, Inc., assumes no liability for damages or injuries incurred by misuse of this product. ! Do not use an extension cord to supply power to this equipment. -
Page 6: Operating Conditions
Your ozone generator is designed to be operated under a negative or positive pressure situation. Your Ozotech ozone generator has been factory tested to operate at a maximum positive pressure of 5 psi. Warranty coverage of your equipment is contingent upon strict compliance with the operating conditions specified in this manual. -
Page 7: Maintenance
wide range of applications. Configurations include a standard AC to DC wall transformer, a cigarette lighter adapter or twisted wire for connection to a hard 12 VDC source such as a car, boat or RV battery circuit. Most supply voltages fluctuate, so it is necessary to monitor your voltage and assure it is within acceptable variance values listed below. -
Page 8: Corona Discharge Cell Servicing
6.2 Corona Discharge Cell Servicing This is a throw-away item should it fail. Electrical failure is usually the result of a mechanical failure. For example, should the cell become plugged with nitric byproducts or should water back into the cell, it could be the cause of a catastrophic electrical failure. -
Page 9: Troubleshooting Guide
9.0 Troubleshooting Guide Symptom Possible Cause Remedy Unit does not turn on. Refer to label on side of chassis for Unit is not connected to power source or voltage/frequency requirements. is connected to improper power source. Connect unit to proper power source. ON/OFF switch not turned to the ON position. -
Page 10: Component Replacement
10.0 Component Replacement 10.1 Ozone Cell Replacement (Refer to illustrations below) Disconnect unit from power source. Remove four press-in rivets that secure cover and remove cover. Pull the CD cell out of the fuse clips then disconnect hoses and Hi-Voltage wire that is connected to the male spade lug on the printed circuit.
