CB432-TY Din-Rail Relay
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THS 317-ET and is the answer not in the manual?

Questions and answers

Related Manuals for Owon THS 317-ET

Summary of Contents for Owon THS 317-ET

  • Page 1 CB432-TY Din-Rail Relay Quick Start Guide...

  • Page 2: Safety Handling

    Safety Handling WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the relay and other property. Read all the safety notices below before using the relay. • Avoid high humidity or extreme temperatures. • Avoid long exposure to direct sunlight or strong ultraviolet light.

  • Page 3: Technical Specifications

    Technical Specifications Wireless Connectivity Wi-Fi • 802.11 B/G/N20/N40 RF Characteristics • Operating frequency: 2.4GHz Physical Specifications Operating Voltage • 100~240 Vac 50/60 Hz • ≤ 100W ( Within ±2W ) Calibrated Metering Accuracy •  >100W ( Within ±2% ) • 63 A Max. Load Current • Temperature: -20℃...

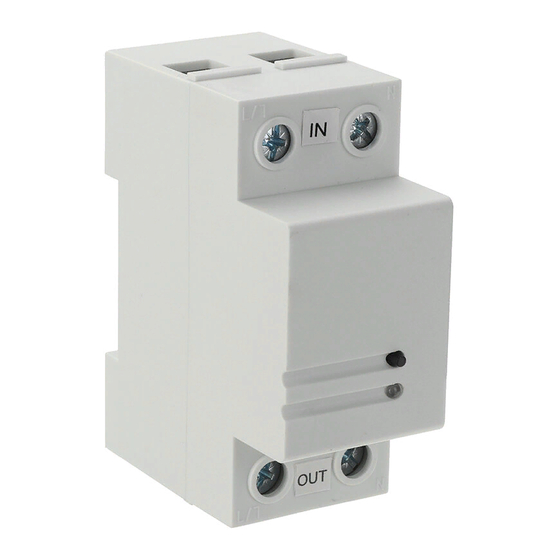

  • Page 4 Welcome The Din-Rail Relay CB432-TY is a device with electricity functions. It allows you to control On/Off status and to check real-time energy usage via mobile App. This guide will provide you an overview of the product and help you to get through the initial setup.
  • Page 5 Features: • Tuya compliant • Support Tap-to-Run and automation with other Tuya device • Control your home device via Mobile APP • Schedule the device to automatically power electronics on and off • Measures Voltage, Current, PowerFactor, ActivePower and total energy consumption of the connected devices •...

  • Page 6: Installation

    Installation Important safety information! • The Din-Rail Relay must be installed and serviced only by qualified electrical personnel. • Do not touch the terminals of the device during the testing. • Turn off all power supplying this equipment before installing. • Make sure that the power supply is off before connecting or disconnecting it to the auxiliary device.

  • Page 7: Get To Know Your Device

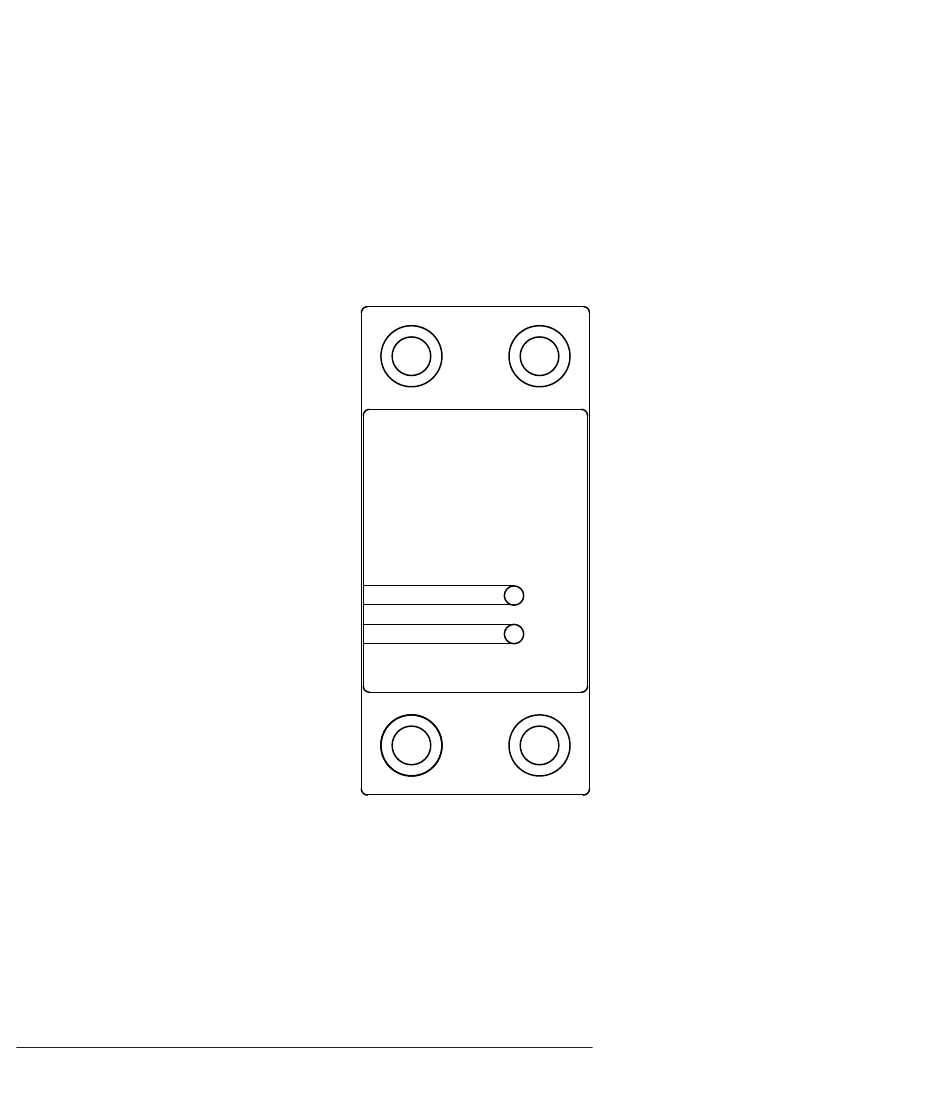

    Get to know your device Reset Button & ON/OFF button LED indicator Reset button • Reset. Press and hold the Reset button for about 5 seconds until the LED indicator flashes three times (energy data will be cleared). ON/OFF button Press once to switch the relay ON/OFF.
  • Page 8 LED indicator The LED status gives the following information of the Relay: LED status What it means Rapidly blink EZ mode Slowly blink AP mode Yellow LED solid on Device is ON when connected with router. Green LED solid on Device is OFF when connected with router.

  • Page 9: Configure Network

    Configure Network 4.1 To get started, you will need: • Connect your phone to the 2.4Ghz Wi-Fi network. • A mobile phone with a 'SmartLife' APP installed. Then follow the steps below: • 1. Power on the Din-Rail Relay. • 2. Make sure the LED indicator is blink rapidly. If not, please reset 4.2 Add devices 1.
  • Page 10 5. Enter your home Wi-Fi account and password (Only support 2.4Ghz Wi-Fi), then tap 'Next' button.
  • Page 11 6. Place the router, mobile phone and Din-Rail Relay as close as possible to waiting for connection. Confirm the green indicator on your device is rapidly blink, then tap 'Next'. 7. After successful connection, you can rename the it and click 'Done' to complete.
  • Page 12 1. Configure the network in AP mode. 1. Reset the deviec in EZ mode, it will switch to AP mode. The indicator on your device will blink slowly. 2. Then switch the network configuration mode to AP mode at the upper right corner of the APP when you add the device.
  • Page 13 4. Find and connect the device's hotspot in the Wi-Fi list. 5. After the connection succeeds, you can rename it and click 'Done' to complete the configuration. (If failed, please refer to FAQ2 to troubleshoot) 2. Wi-Fi configuration of the device failed - Confirm the entered router password is correct.
  • Page 14 Put the phone besides your device and make sure they are in the same network environment, try to open a website to judge if the network can be used. - If your router supports both 2.4Ghz and 5Ghz, please enable the 2.4Ghz channel and add device under 2.4G Wi-Fi channel.
  • Page 15 - If you have already upgrate the iOS system to 14, you need to enable the 'Local network' of the App. - If it still does not work, it is recommended to change the router and try again.
  • Page 16 3. Device offline - Confirm whether the Din-Rail Relay is powered on. - Please confirm whether the home Wi-Fi network is normal, or whether the Wi-Fi name and password has been modified. - If there still have problems after the above checking, it is recommended to remove the device or change the router to add it again.
