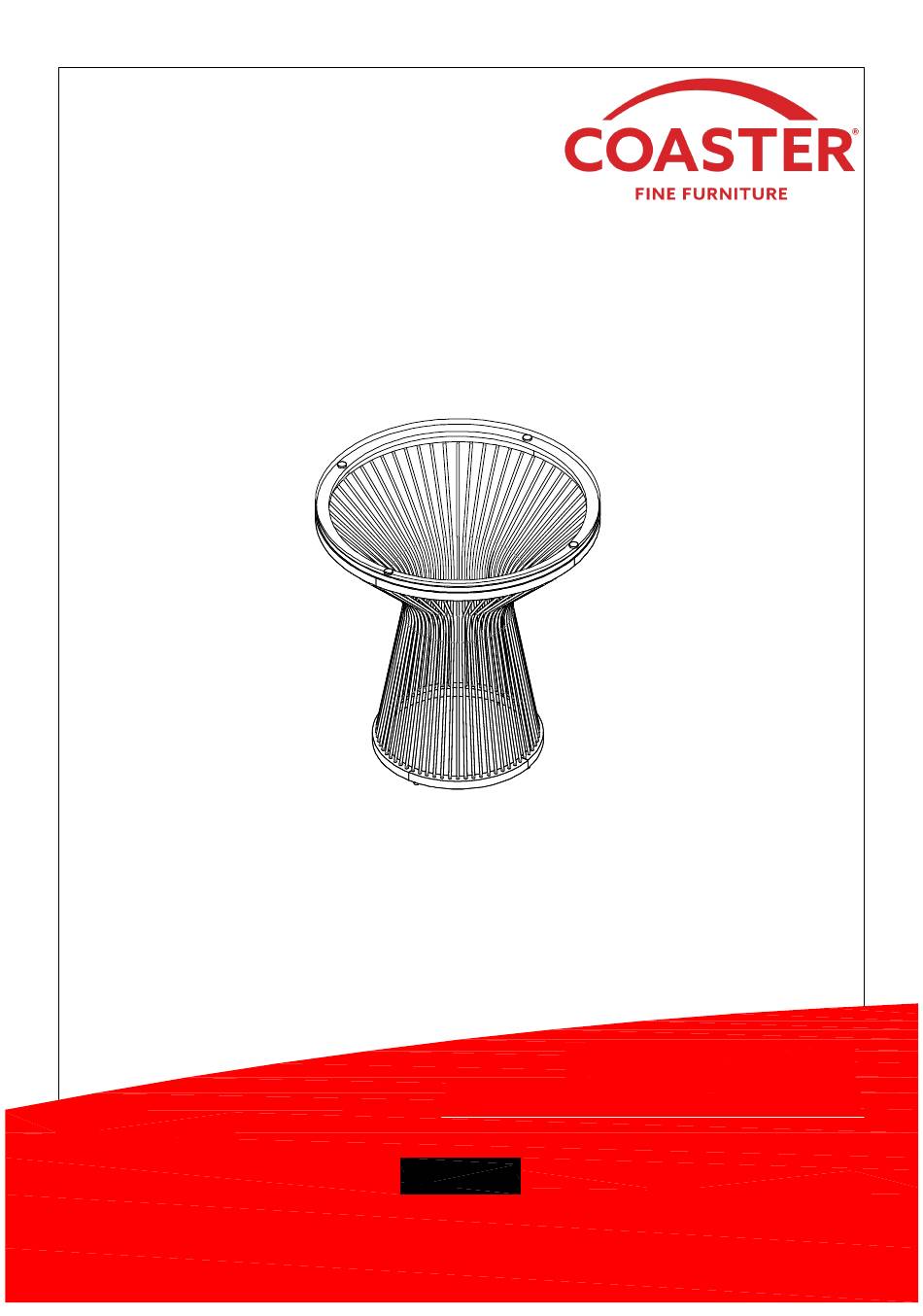

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 724227 END TABLE REVISION 0 : 05/04/2020 REVISION 1 : 07/24/2020 PAGE 1 OF 6 COASTERFURNITURE.COM...
- Page 2 724227 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
- Page 3 724227 ITEM: ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS STEP 1 Do not tighten until each step is completed or instructed. STEP 2 PAGE 3 OF 7 PAGE 3 OF 6 COASTERFURNITURE.COM COASTERFURNITURE.COM...
- Page 4 724227 ITEM: ASSEMBLY INSTRUCTIONS STEP 3 STEP 4 PAGE 4 OF 6 COASTERFURNITURE.COM...
- Page 5 724227 ITEM: ASSEMBLY INSTRUCTIONS STEP 5 STEP 6 PAGE 5 OF 6 COASTERFURNITURE.COM...
- Page 6 724227 ITEM: ASSEMBLY INSTRUCTIONS Product Size : 597 DIA X 610 H (MM) Product Size : 23 " DIA X 24" 610mm 24" 430mm 17" 597mm " Note : Dimension tolerance ±5% PAGE 6 OF 6 COASTERFURNITURE.COM...
