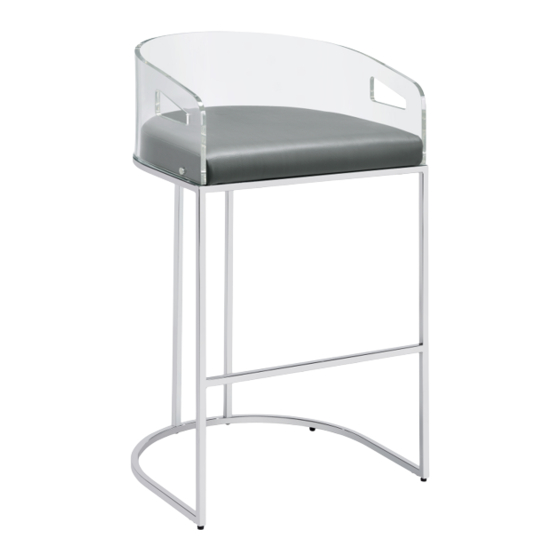

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 183406 BAR STOOL REVISION 0 : 06/23/2020 REVISION 1 : 07/02/2020 PAGE 1 OF 6 COASTERFURNITURE.COM...
- Page 2 183406 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
- Page 3 183406 ITEM: ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS HARDWARE IDENTIFICATION SHORT BOLT 3PCS (1/4" x 21mm SR) MEDIUM BOLT 10PCS (1/4" x 28mm SR) 3PCS (1/4") LEVELER 5PCS (1/4" x 12mm BLK) 2PCS (16 x 16mm) WASHER 2PCS ∅ 16mm) PLASTIC WASHER 3PCS ∅...
- Page 4 183406 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 Do not tighten until each step is completed or instructed. STEP 2 PAGE 4 OF 6 COASTERFURNITURE.COM...
- Page 5 183406 ITEM: ASSEMBLY INSTRUCTIONS STEP 3 FIRST STEP 4 PAGE 5 OF 6 COASTERFURNITURE.COM...
- Page 6 183406 ITEM: ASSEMBLY INSTRUCTIONS Product Size : 546 X 489 X 978 H (MM) Product Size : 21.5" X 19.25" X 38.5" 978 mm 365 mm 38.5" 14.25" 792 mm 31.25" 325 mm 12.75" 508 mm 20" 546 mm 489 mm 21.5"...
