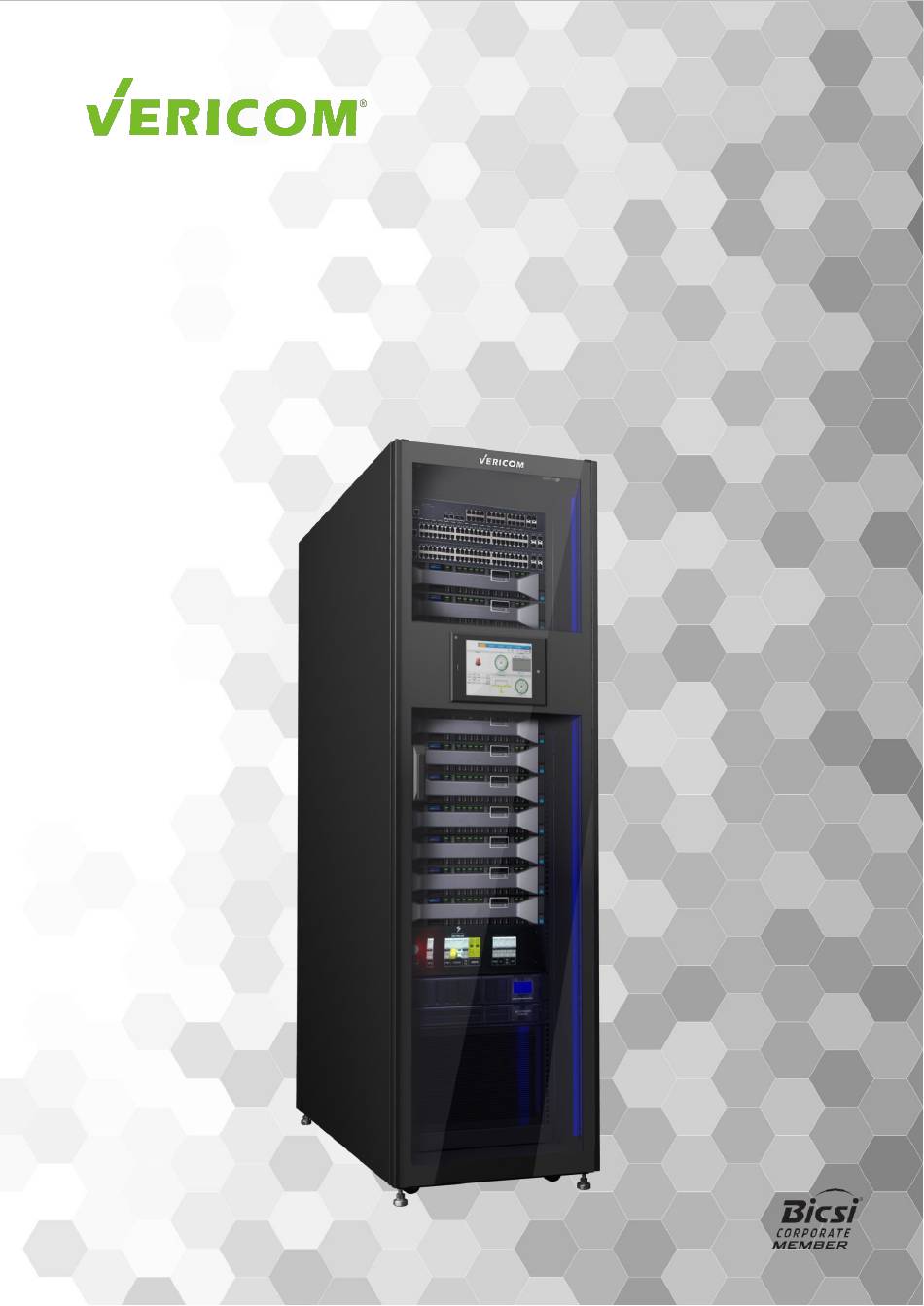

- Page 1 Micro Data Center – Technical Data Manual Micro Data Center Technical Data Manual...
-
Page 2: Table Of Contents
Micro Data Center – Technical Data Manual Contents INTRODUCTION ............................ 3 Product Introduction ..........................3 Major Components Introduction ......................5 Environmental Requirements ......................... 6 TECHNLCAL DATA ..........................7 INSTALLATION DATA ..........................9... -
Page 3: Introduction
1. INTRODUCTION 1.1 Product Introduction A Micro data center is a standalone rack-level system containing all the components of a 'traditional' data center including precision cooling, UPS power supply, power backup, cabinets, security, and monitoring systems. Their size, versatility and plug & play features make them an ideal solution for use in remote locations, branch offices, or even for temporary use in high risk zones. - Page 4 Micro Data Center – Technical Data Manual Figure 1-2 Internal Layout Leveling feet castors Air Conditioner Battery Pack Power distribution module Temperature and Humidity Mechanical lock Backlight Sensor Switch Lighting Smoke Sensor Water Leakage Rope...
-
Page 5: Major Components Introduction
Micro Data Center – Technical Data Manual 2.1 Major Components Introduction ⚫ UPS——The UPS has two main functions, one is to optimize the input power supply to provide clean power to the critical load equipment, the second is the use of battery backup for the critical load equipment after the main power supply fails or drops to an unacceptable level. -
Page 6: Environmental Requirements
Voltage 230V/380V±10% Frequency 50Hz±2Hz Storage Environment Table 1-2 Product Storage Environment Item Requirements Environment Clean (no dust), good ventilation Temperature -40℃~+60℃ Humidity 5%RH~95%RH without condensation Duration less than 6 months, (If more than 6 months, please contact Vericom technical support) -
Page 7: Technlcal Data
Micro Data Center – Technical Data Manual 2. TECHNLCAL DATA Table 2-1 Vericom Micro Data Center Technical Specifications Model VRMDC3000-R1G-U6KVA1-C4KW1-M-PD2 Available Space Width per Cabinet Depth 1200 per Cabinet Height 2000 per Cabinet Cabinet System Load- 1500kg bearing Aisle Hot and cold aisle containment... - Page 8 Micro Data Center – Technical Data Manual Long Time Delay Optional Battery Lightning/Surge C-Class Protection Manual Maintenance Support Bypass PDU Type Basic（16A） PDU Qty PDU interface (C13*12+C19*4) Cooling System Cooling Capacity 1*4.2 (KW) Configuration N, Support teamwork control Sensible Heat...
-
Page 9: Installation Data
Micro Data Center – Technical Data Manual 3. INSTALLATION DATA Table 3-1 Micro Data Center Product Dimension Model Width-mm Depth-mm Height-mm VRMDC3000-R1G- U6KVA1-C4KW1-M- 1200 2050 Table 3-2 Dimension of Outdoor Unit Model Width-mm Depth-mm Height-mm D06WP13VSG-04-S2 Table 3-3 Dimension and Gross Weight of Outdoor Unit After Packing Model Dimension after packing(mm)W×D×H...
