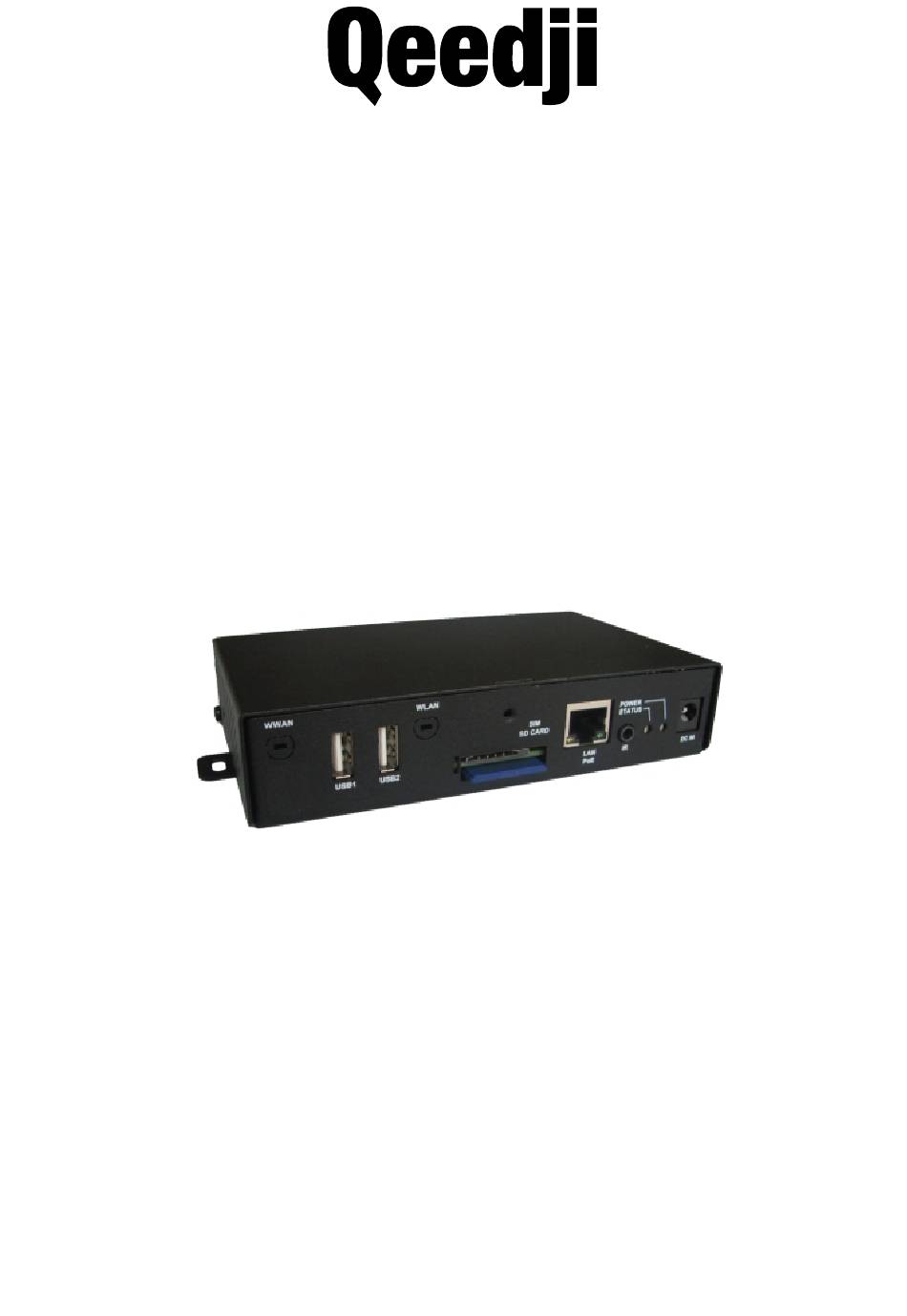

  • Page 1 User manual SMA30 0 4.13.15 0 0 2D...
  • Page 2 Product information Product design and specifications are subject to change at any time and `Qeedji` reserves the right to modify them without notice. This includes the hardware, the embedded software and this manual, which should be considered as a general guide to the product. The accessories supplied with the product may differ slightly from those described in this manual, depending on the developments of the various suppliers.

  • Page 3: Table Of Contents

    Part IV : Configuration by script Configuration by script Part V : Technical information Technical specifications Conformities Part V I : Contacts Contacts Part V II : Appendix Appendix: Device status (status.xml) Appendix: Qeedji PowerPoint publisher For Media Players Appendix: scrolling text overlay...

  • Page 4: Part I : Description And Installation

    Description and installation Part I...

  • Page 5: Introduction

    1.1  Introduction This manual explains how to install and configure your SMA300 device. Recommendations and warnings This device is designed to be used indoor. This device is intended to work with the power supply unit. This power supply unit must be connected to a mains socket conforming to standard NF C 15-100.

  • Page 6: Getting Started With The Device

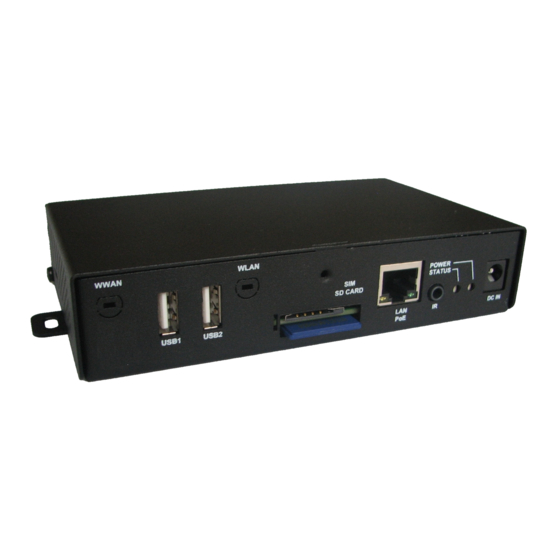

    1.2  G etting started with the device Device front face H DMI output connector, Audio connector. Device rear face WWAN antenna slot, USB 1 2.0 H ost connector, USB 2 2.0 H ost connector, WLAN antenna slot, SIM & SD Card connector, LAN PoE RJ 45 connector, GPIO1/IR connector, Status green LED,...

  • Page 7: Device Fixture

    1.2.1  Device fix ture...

  • Page 8: Device Dimensions

    1.2.2  Device dimensions...

  • Page 9: Labelling

    1.2.3  Labelling Product label The model of the device, the power supply characteristics, the serial number (PSN) and the MAC address are written on a label stuck on the case. Packingbox label This is the label stuck also on the packingbox. It is showing information on: the device model, the serial number (PSN).

  • Page 10: Device Start-Up Step

    1.2.4  Device start-up step Step 1 (T0 = 0 s) Step 2 (T ~ 11 s) Step 3 (T ~ 38  s) Device start-up initialisation Device start-up finalisation Nominal mode This phase duration is depending on During this step, the device has to some variable values ( lik e NTP) , play the App content.

  • Page 11: Test Card

    1.2.5  Test card At the factory, the device content set by default is the . The chart displays important information to assist in the device configuration: Test Card   ☛ The star pictogram is showing the chosen identifi cation method in the device. It can be .

  • Page 12: Leds Behaviour

    1.3  LEDs behaviour LED POWER behaviour (power on device) State Information OK: Power supplied Error: Power supply issue ¹ LED LAN behaviour (power on device) State Information There is no network traffic on the Ethernet connector. B linking The blinking frequency is indicating the data rate on Ethernet connector. LED STATUS behaviour depending on device start-up steps •...
  • Page 13 ¹ If the problem persists in despite of an appropriate power-supply, contact support@ qeedji.tech. ² If the problem persists, it is recommended to find out the media not supported yet by the system and remove it from content. ³ If the problem persists after a partition repairing, contact support@ qeedji.tech.

  • Page 14: Connectors Pin-Out

    1.4  Connectors pin-out Power supply connector (12 V DC - 0 .6 A) LAN connector Ethernet RJ -45 PoE. 10/100 B aseT. It is recommended to use shielded cables. Audio J ack 3.5 mm connector (stereo L+ R) It is recommended to use cables whose length is less than 3 meters. J ack 3.5 mm connector (G PIO1/ IR) N°...
  • Page 15 Two wires configuration for GPIO1: Output configuration for GPIO1: Configuration GPIO1 connector configuration can be done through system preferences edition with device Web user interface or with a configuration script. The GPIO1 configuration part for this script is described here: H ow to configure the J ack 3.5 mm connector: //Set Jack 3.5 mm mode infrared if (aDirection = =...

  • Page 16: Part Ii : Applicative User Interface

    Applicative user interface Part II...

  • Page 17: Applicative User Interface

    2.1  Applicative user interface The SMA300 device has a Web user interface that can be accessed with a Web browser. The supported browsers are: Google Chrome Mozilla Firefox MS-Edge MS-Edge (Chromium) It is accessible from the URL: http://<device_ IP_ addr>/ B y default, the login credentials for the device Web user interface are:...

  • Page 18: Part Iii : Administration Console User Interface

    Administration console user interface Part III...

  • Page 19: Administration Console User Interface

    3.1  Administration console user interface The SMA300 device has a Web user interface that can be accessed with a Web browser. The supported browsers are: Google Chrome Mozilla Firefox MS-Edge MS-Edge (Chromium) It is accessible from the URL: http://<device_ IP_ addr>/...

  • Page 20: Configuration > Administrator

    ☛ The same login credentials are used to access to the WebDAV server. It is recommended that you enter one unique value for each device. In case several SMA300 devices are located in different buildings or Hostname geographical locations, we recommend that you enter hostname values with information about the building and the location (e.g.

  • Page 21: Configuration > Lan

    Q eedj i devices for all the 802.1X authentication methods are the LAN MAC address value of the SMA300 device, any new Q eedj i device entry must be registered in your RADIUS server with these specifi c values with the format...

  • Page 22: Configuration > Wlan

    Q eedj i devices for all the 802.1X authentication methods are the LAN MAC address value of the SMA300 device, any new Q eedj i device entry must be registered in your RADIUS server with these specifi c values with the format...

  • Page 23: Configuration > Output

    While doing so, it is recommended to display the test Qeedji pattern of the device. When using the overscan, for a good configuration of your device, please make sure that your screen is not in mode.

  • Page 24: Configuration > App

    3.1.5  Configuration > App pane, select the App menu to select how the App must be loaded. From the Configuration For each mode, you can use the buttons at any time to remove the from the device or restart it, respectively. Purge the App Restart the App ☛...
  • Page 25 ☛ To fi nd out which software suites are capable of publishing an App on devices, contact support@ q eedj i.tech. Qeedji : allows to configure the device so that it can regularly load or update an App from a remote WebDAV server. Once the App is loaded, Pull WebDAV it starts immediately.
  • Page 26 . Once this PowerPoint Add-on is installed Qeedji PowerPoint publisher for media players on your computer, it allows to publish a PowerPoint presentation on some of your media players. For further information, refer to the chapter § Appendix: Qeedji PowerPoint publisher For Media Players...

  • Page 27: Configuration > Servers

    3.1.6  Configuration > Servers pane, select the Servers menu to define the configuration of the servers peripheral to your device. In the Configuration status, software installation and configuration servers. Status server : URL of the remote server' s WebDAV frontend for the broadcast of the device status file.
  • Page 28 Proxy server ¹ If your device does not have access to the Internet, it is possible to turn an MS-Windows computer into an NTP server. For further information, contact your IT department.

  • Page 29: Configuration > License

    3.1.7  Configuration > License pane, select the License menu to view your device license number. In the Configuration This license number is registered at the factory when the device is ordered. It is then sent to you by e-mail. If it has disappeared due to a handling error or after formatting your device, an error message indicating that the license is invalid will appear on your screen.

  • Page 30: Configuration > Date And Time

    3.1.8   Configuration > Date and time pane, select the Date and Time menu to check the system date and time of your device. From the Configuration To update the date and time of your device, click on the value and then click on the button.

  • Page 31: Configuration > Regionality

    3.1.9   Configuration > Regionality pane, select the Regionality menu to choose the language in which information messages or error messages related to the From the Configuration device need be displayed. The supported languages are: English, Spanish, German, French.

  • Page 32: Configuration > Tasks

    3.1.10   Configuration > Tasks pane, select the Tasks menu to: From the Configuration program a device reboot task, program an energy management task for the appliance to reduce its energy consumption. Device restart tasks To create a restart task, click on the  button and then the button.
  • Page 33 It is possible to create several energy manager tasks in the same day. These settings for scheduled power level, start time, end time, occurrence, and exception are stored in ICAL format in the user preference innes.power-manager.calendar Example value (ICAL format): BEGIN:VCALENDAR VERSION:1.0 BEGIN:VEVENT...
  • Page 34 Function Related User Preferences Sound: activated = false innes.power-manager.level.max.<>.mute Screen: on innes.power-manager.level.max.<>.power-mode Volume: 100% = 100 innes.power-manager.level.max.<>.volume Opacity: 0% innes.power-manager.level.max.<>.opacity B rightness: 100% = 100 innes.power-manager.level.max.<>.brightness B acklight: 100% = 100 innes.power-manager.level.max.<>.backlight ☛ The values of these user preferences are all modifi able.

  • Page 35: Configuration > Variables

    3.1.11  Configuration > V ariables pane, select the V ariables menu to set variable (or TAG) values for this device. From the Configuration The variable names are: field1 field2 field3 field4 field5 These variable values can then be used in Apps to perform specific processing for certain devices only. ☛...

  • Page 36: Configuration > Av Commands

    3.1.12  Configuration > AV commands pane, select the AV Commands menu to enable the control of screens by AV (Audio-Video) commands through the From the Configuration connectors: RS232 ETHERNET HDMI AV Command name Description brighness screen brightness control mute screen mute control power-mode screen saver control back -light...
  • Page 37 For screen control via AV Command LAN, select the option. With the  button, configure the LAN interface of your device by adding: the IP address(es) of the screen(s) to drive, the port to be used (for example, port 1015) for sending AV commands. ☛...

  • Page 38: Maintenance > Test Card

    3.1.13  Maintenance > Test card pane, select the Test card menu to enable or disable the test pattern. The test pattern is often enabled during: From the Maintenance installing devices on the network, the development of the output resolution and overscan. ☛...

  • Page 39: Maintenance > Middleware

    3.1.14  Maintenance > Middleware pane, select the Middleware menu to view the version of the middleware installed on your device. From the Maintenance ☛ Corrective and evolutive maintenance software versions are regularly made available on the Q eedj i Web site. It is therefore advisable to regularly update your device.

  • Page 40: Maintenance > Logs

    ☛ These logs can only be interpreted only by software developers who are familiar with the software brick s that have been developed. Activating the logs with a level other than should only be done after a request from support. Qeedji Enabling traces with a level can significantly disrupt the operation of the ◬...

  • Page 41: Maintenance > Preferences

    B efore changing any value of a preference, please consult your support. ◬ Qeedji Double click on a preference to change its value. button resets a subset of preferences allowing the device to reprogram its factory preferences. Restore factory preferences H ere are some user preferences that may be useful.

  • Page 42: Maintenance > Tools

    App. If the problem persists, and the Format button is available, clicking on the button will format the content. It is then necessary to publish again the App. Format ☛ If the problem persists after formatting the SD card, contact your support. Qeedji...

  • Page 43: Information > Device

    : label and version of the embedded middleware, Middleware : model of the device, Model Qeedji : name of the device on the network, Hostname : MAC address (value used in particular to generate the license key of the device), : Universal Unique IDentifier, UUID : Product Serial Number.

  • Page 44: Information > Network

    3.1.19   Information > Network pane, select the Network menu to view a summary of the device' s network configuration. In the Information...

  • Page 45: Information > Screens

    3.1.20   Information > Screens pane, select the Screens menu to view information about the connected display in H DMI. From the Information...

  • Page 46: Part Iv : Configuration By Script

    Configuration by script Part IV...

  • Page 47: Configuration By Script

    4.1  Configuration by script The SMA300 device can auto-configure with a configuration script. The configuration script can be either hosted on remote WebDAV server, or broadcasted by your DH CP server (code 66) or injected through an USB storage device. For further information, refer to the configuration-by-script...

  • Page 48: Part V : Technical Information

    Technical information Part V...

  • Page 49: Technical Specifications

    5.1  Technical specifications Model Manufacturer SMA300 Qeedji Processors   Freescale iMX 6 Vivante Peripherals 2x USB 2.0 H ost (Low/Full/H igh Speed) 1x J ack 3.5 mm configurable in GPIO or Infrared Storage Information Internal Flash Memory for Qualified SD cards: SANDISK / SDSDAA-032G / 32 GB , SANDISK / SDSDB -032G-B 35 / 32 GB , SANDISK / SDSDAA-...
  • Page 50 Power supply 12 V DC (600 mA) PoE power (Power Over Ethernet) Operating temperature Storage temperature + 0 ° C to + 35 ° C -20 ° C to + 60 ° C Operating humidity Storage humidity < 80 % <...

  • Page 51: Conformities

    5.2  Conformities In conformity with the following European directives: LVD 2014/35/EU EMC 2014/30/EU...
  • Page 52 Contacts Part V I...

  • Page 53: Contacts

    Refer to the Web site for FAQ, application notes, and software downloads: https://www.qeedji.tech/ Qeedji Qeedji FRANCE INNES SA 5A rue Pierre Joseph Colin 35700 RENNES Tel: + 33 (0)2 23 20 01 62 Fax: + 33 (0)2 23 20 22 59...
  • Page 54 Appendix Part V II...

  • Page 55: Appendix: Device Status (Status.xml)

    7.1  Appendix : Device status (status.x ml) The SMA300 device is updating regularly its device status stored in its WebDAV directory: /.status http://<device-ip-addr>/.status/ This file can be periodically sent to a remote WebDAV server for monitoring purpose. Status.x ml ex ample: <device-status xmlns= "ns.innes.device-status">...

  • Page 56: Appendix: Qeedji Powerpoint Publisher For Media Players

    ( default value) , are supported. http:// Prerequisite: the SMA300 device needs to be purged from any existing App. It is advised to set the App mode to the value. For further information, Push WebDAV refer to the chapter §...
  • Page 57 PowerPoint and open it again to use the new version. ☛ In some rare cases, the warning message PowerPoint has problems with the Qeedji complement. If the problem persists, disable this add-on could be prompted when opening a MS-Offi ce PowerPoint. In this case, do and check for updates.
  • Page 58 Select then the only SMA300 devices on which you want to publish, by double clicking on them. ☛ The SMA300 devices sorting order in the list is decisive because it is tak en into account during the publication. The slides of the fi rst section, or the fi...
  • Page 60 Q eedj i PowerPoint Publisher for For Media Players: publish To publish a content on your media players through the SMA300 devices, open you MS-Office Powerpoint presentation. Then: click on the menu, Qeedji on the ribbon, click on the item.
  • Page 61 The PowerPoint presentation slideshow is now running on the media players. User interactivity The user interactivity with key pressed is supported as soon as the PowerPoint presentation is played on the media player. If the CEC is activated on your screen, and the CEC passthrough properly supported: Press on the key of the screen remote control to go to the next slide, RIGHT ARROW...

  • Page 62: Appendix: Scrolling Text Overlay

    7.3  Appendix : scrolling tex t overlay In full H D resolution, the device supports a scrolling text in overlay until 1226 characters per line in the text file. The max height for the banner area in which a scrolling text is played must be lower than 10% of the screen height.
