Qeedji SMA300 User Manual
Hide thumbs
Also See for SMA300:
- User manual (45 pages) ,
- User manual (62 pages) ,
- User manual (70 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Qeedji SMA300
Summary of Contents for Qeedji SMA300

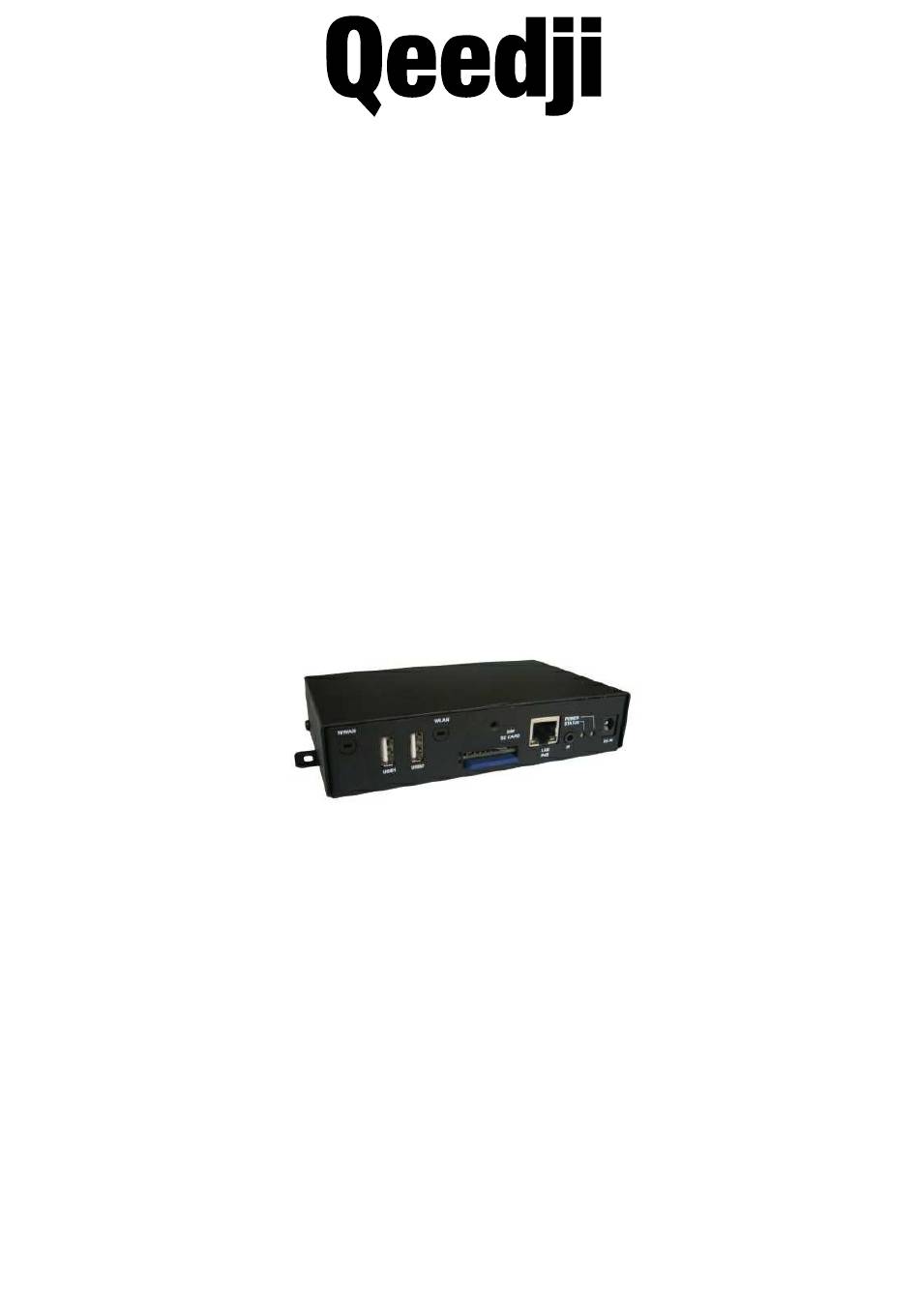

- Page 1 User Manual SMA300 4.12.10 001C...
- Page 2 Please read carefully the following instructions before switching the product on: - WARNING! Correct fitting and installation is of the utmost importance. Incorrect fitting and/or installation may result in personal injury or loss. Qeedji disclaims all liability, of whatever kind, if the product is assembled, fitted and/or installed in an incorrect manner.
-
Page 3: Table Of Contents
Table of Contents Introduction Getting Started LEDs Connectors Configuration Web interface Launch your own App Technical specifications Troubleshooting Conformities Contacts 1.10... -
Page 4: Introduction
This device is intended to work with the supplied power supply unit. This power supply unit must be connected to a mains socket conforming to standard NF C 15-100. If the AC power cable is damaged, it must be replaced. It is possible to order a replacement mains unit by sending a request to the email address sales@qeedji.tech. -
Page 5: Getting Started
Getting started with the device Device front face SMA300 AUDIO OUT HDMI OUT HDMI output connector Audio connector Device rear face WLAN WWAN SIM/ SD CARD POWER STATUS DC IN LAN P oE USB1 USB2 WWAN antenna slot USB1 2.0 Host connector USB2 2.0 Host connector... - Page 6 The model of the device, the power supply characteristics, the serial number (PSN) and the MAC address are written on a label which is stuck on the case. Some additional tags may be present in case of built-in options. ☛ The serial number of the device can be requested in case of technical support. www.qeedji.tech 5A rue P ierre Joseph C olin 35000 R E NNE S...
- Page 7 At the factory, the device content set by default is the . The chart displays important information to assist in the device configuration: Test Card Disable the by using the WebUI. Test Card If your monitor does support the CEC with its pass-through feature, the test card can be activated or inactivated thanks to the monitor remote control with the key combination [left, right, left, right] pressed in less than 10 seconds.
-
Page 8: Leds
LEDs behaviour LED POWER behaviour (power on device) State Information OK: Power supplied Error : Power supply issue ¹ LED LAN behaviour (power on device) State Information There is no network traffic on the Ethernet connector Blinking The blinking frequency is indicating the data rate on Ethernet connector LED STATUS behaviour depending on device start-up steps •... - Page 9 ¹ If the problem persists in despite of an appropriate power-supply, contact the technical support. ² If the problem persists, it is recommended to find out the media not supported yet by the system and remove it from content. ³ If the problem persists after a partition repairing, contact the technical support.
-
Page 10: Connectors
Connectors pin-out Power supply connector (12VDC-0.6A) DC IN LAN connector Ethernet RJ-45 PoE. 10/100 BaseT. It is recommended to use shielded cables. Audio Jack 3.5mm connector (stereo L+R) It is recommended to use cables whose length is less than 3 meters. HDMI OUT AUDIO OUT Jack 3.5mm connector (GPIO1/IR) - Page 11 SMA300 PERIPHERAL 3.3V 1 (Jack) 3 (Jack) Input Switch CPU/GPIO1 2 (Jack) Two wires configuration for GPIO1: SMA300 PERIPHERAL 3 (Jack) Input CPU/GPIO1 Switch or dry loop 2 (Jack) Output configuration for GPIO1: Power supply SMT210 PERIPHERAL 3 (Jack) CPU/GPIO4...
-
Page 12: Configuration Web Interface
Hostname Identification method It is recommended to enter a unic for each device used on your locak network. When using several devices SMA300 spread on several ⚠ Hostname buildings or on several locations, it is recommended to enter values having a specific key word reminding the building and the location of the... - Page 13 (for example, the monitor could not be able to wake up back at the end of the sleep preriod). It is highly recommended that your device SMA300 is on time. When it is possible, synchronize the time & date with a NTP server.
- Page 14 Examples of applications are available here Link to the github SDK-G4 API Using a third-party software The third method is to use third-party software such as a CMS to publish your application. For more information, contact your Qeedji dealer.
-
Page 15: Technical Specifications
Technical specifications Model Manufacturer SMA300 Qeedji Processors Freescale iMX6 Vivante Peripherals 2x USB 2.0 Host (Low/Full/High Speed) 1x Jack 3.5 configurable in GPIO or Infrared Storage Information Internal Flash Memory for OS SD card Qualified SD cards: SANDISK / SDSDAA-032G / 32 GB, SANDISK / SDSDB-032G-B35 / 32 GB, SANDISK / SDSDAA-008G / 8 GB Software eLinux 3.10.17... - Page 16 Power supply 12V DC (600mA) PoE power (Power Over Ethernet) Working temperature Storage temperature +0°C to +35°C -20°C to +60°C Working humidity Storage humidity < 80% < 85% Weight Dimensions (WxHxD) 0,450 Kg 144 x 89 x 29 mm...
-
Page 17: Troubleshooting
Error while playing a media: message "This content <media path/file name> is not compatible with this device" Troubleshooting To solve the issue, remove this not supported media from your playout and publish again. ¹ ¹ For further information, read the document gekkota-supported-medias-and-performances.pdf ² For further information, contact support@qeedji.tech... -
Page 18: Conformities
Conformities In conformity with the following European directives: LVD 2014/35/EU EMC 2014/30/EU... -
Page 19: Contacts
Contacts 1.10 For further information, please contact us at + 33 (0)2 23 20 01 62 or by e-mail: Technical support: support@qeedji.tech Sales department: sales@qeedji.tech FAQ and download at : https://www.qeedji.tech/en/ Qeedji INNES SA 5A rue pierre Joseph Colin 35700 RENNES...
