- Page 1 User Manual 4K@60Hz HDMI Extender By CAT (Extend IR/ UHD/HDR/UP TO 100m) Model No：HDEX0027M1...

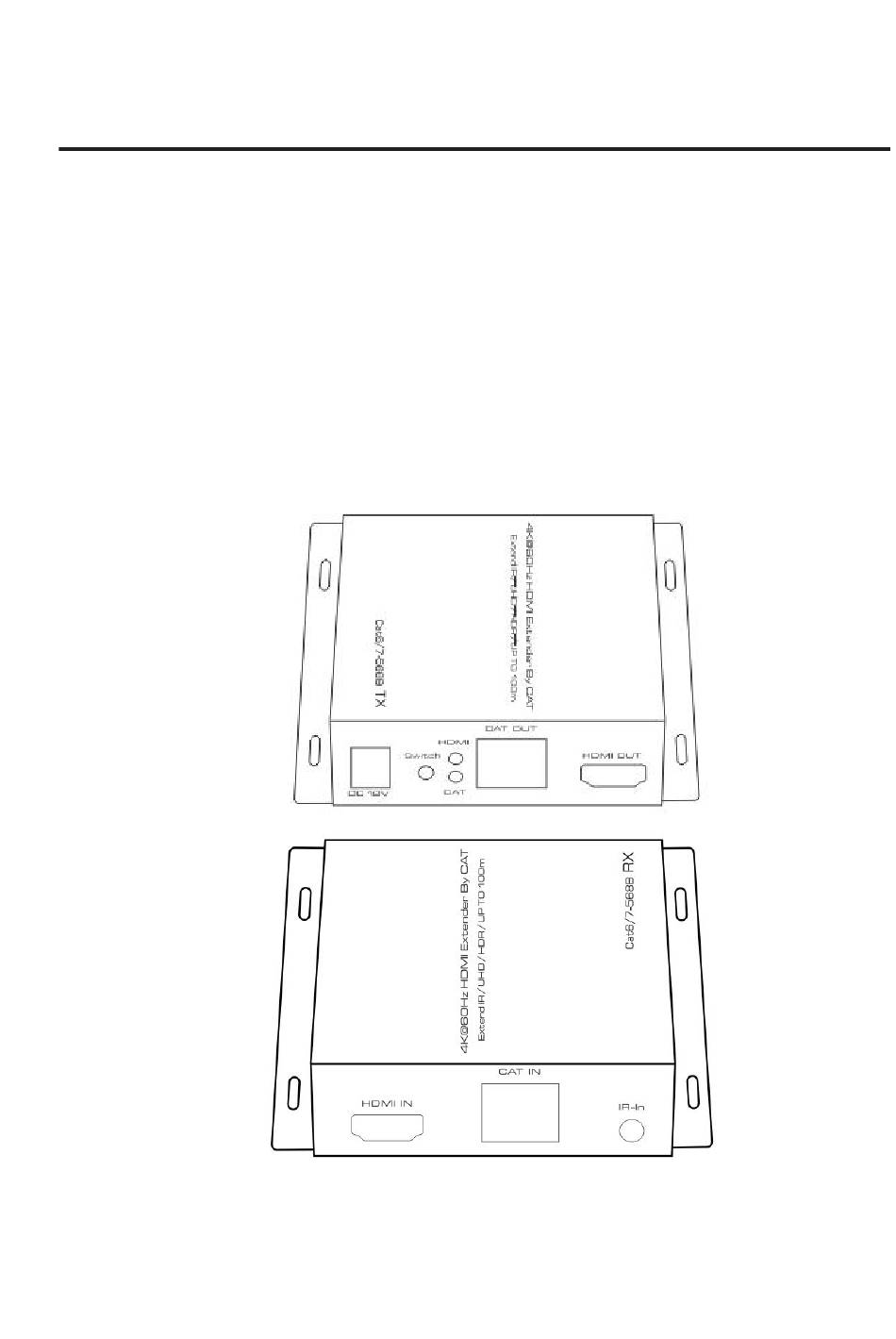

- Page 2 INTRODUCITON Picture 1.0 Transmitter (TX) Picture 1.1 Receiver (RX)
- Page 3 Connection and operation: One-to-one connection One-to-Many connection...
- Page 4 Note: to follow above connecting diagram shows, you can connect HD Signal source → HDMI Extender Transmitter → HDMI Extender Receiver → Display→IR Transmitter→IR Receiver-Power 1. Connect the HDMI IN Port of the TX to the HDMI output port of signal source/PC over one HDMI cable.
-
Page 5: Specifications
SPECIFICATIONS: Model No. HDEX0027M1 Model name 4K@60Hz HDMI Extender By CAT 4K/1080P/720P/576P/576i/480P/480i@24Hz/25Hz/30Hz/50Hz/60Hz, HDMI resolution Supports1080P@120Hz etc,(not support Dolby Vision video format.) HDMI Audio format AC-3/DTS/PCM HDMI Max bandwidth 600MHz Max HDMI Max baud rate 18Gbps Max Network cable interface Standard IEEE-568B wiring method If need more longer ≤100m (Cat 6e 4K@30Hz/1080P@60Hz) - Page 6 Output HDMI cable 2160P/AWG 26 ≤3m distance 1080P/AWG 26 ≤8m Power adapter AC 100~240V/DC 5V/1.5A specification Max working current 600mA Working temperature 0 ~ +40℃ range Working humidity range 5 to 85%RH（No Condensation） Storage temperature -15 to 55℃ Storage humidity 5 ~95%RH(No Condensation) Size 93.5x93.8x28(mm)
