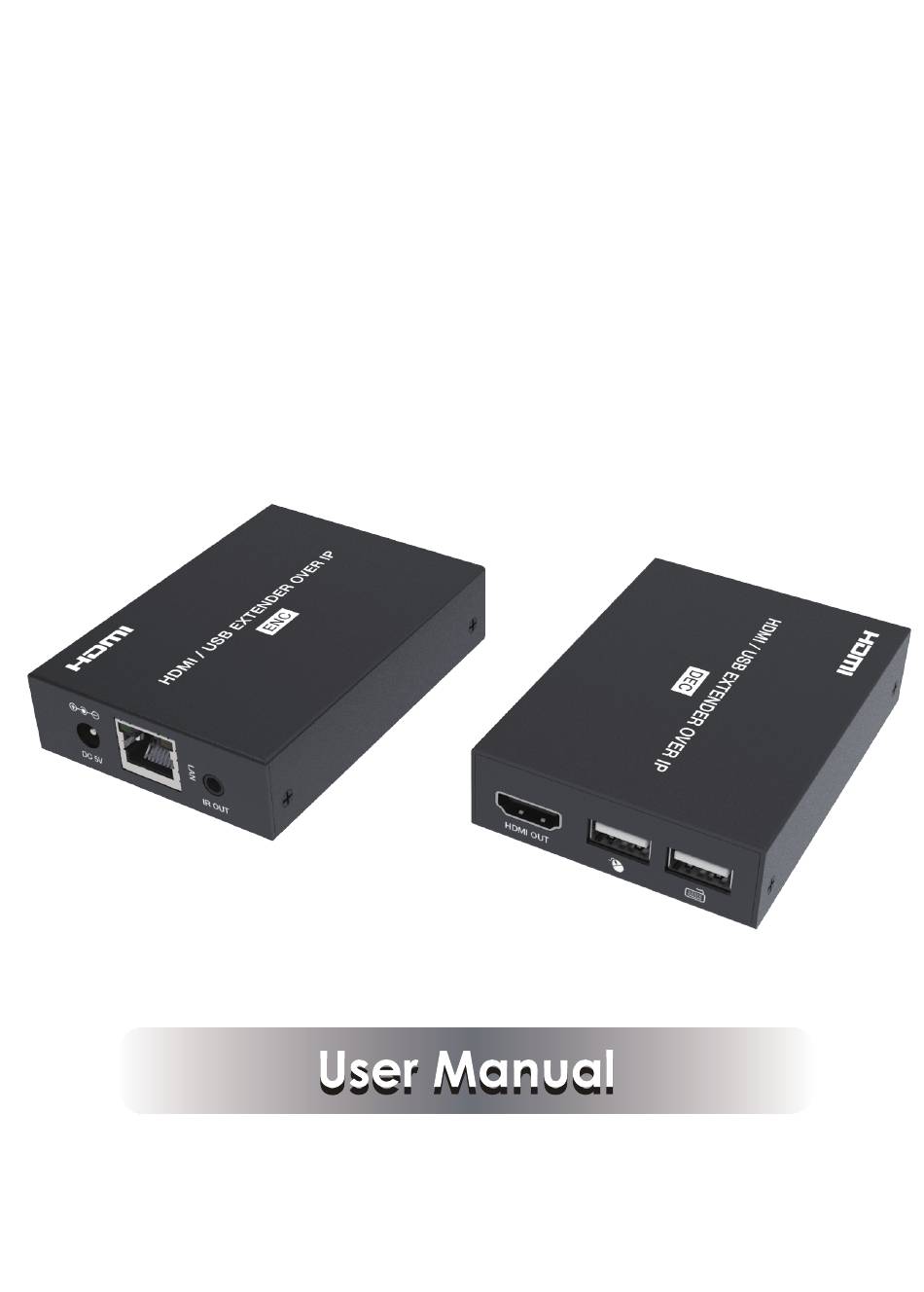

- Page 1 HDMI over IP Extender with USB KVM Function (150M) VER 1.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 1. Introduction HDMI over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 150m/492ft between encoder and decoder via a Cat5e/6 cable.
- Page 4 4. Specifications Technical HDCP Compliance HDCP 1.4 USB Version USB 1.1 Video Bandwidth 6.75Gbps Video Resolution 640x480@60Hz~1920x1200@60Hz HDMI Audio Formats LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz IR Frequency 20Hz ~ 60KHz Compression H.265 Technology Request for Switcher Support 1 GMP, Support DHCP /Router Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2...
- Page 5 Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Resolution / 1920x1200@60Hz - Feet / Meter Distance CAT 5e/6 cable 492ft / 150 meters Resolution / 1920x1200@60Hz - Feet / Meter Cable length HDMI IN / OUT 50ft / 15 meters 5.
- Page 6 5.2 Decoder Panel HDMI OUT DC 5V IR IN Name Function Description DC 5V 5V 1A input for power supply. The LAN port is connected to encoder’s LAN port or connected to switcher / router / hub with CAT cable. Connect to IR receiver cable.
- Page 7 6. Application Example Encoder HDMI IN DC 5V IR OUT Power Supply IR Blaster DVD or Blu-ray Player Ethernet Cat5e/6 Decoder HDMI OUT DC 5V IR IN Power Supply USB keyboard Mouse IR Receiver Figure 1: Encoder directly connects to Decoder 5 / 6...
- Page 8 HDMI IN DC 5V IR OUT Encoder HDMI cable Ethernet Cat5e/6 DVD or Blu-ray Player Switcher Ethernet Cat5e/6 HDMI OUT DC 5V IR IN Decoder HDMI cable HDMI OUT DC 5V IR IN Decoder HDMI cable HDMI OUT DC 5V IR IN Decoder HDMI cable...
