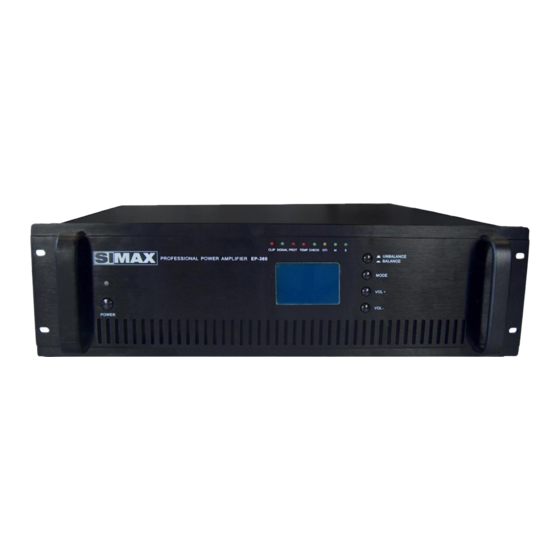

LDA Audio Tech SiMax EP Series Support Handbook

EQUIPMENT OF THE EP SERIES
Support Handbook

Button of balanced/unbalanced.

When pressing the button balanced/unbalanced, the attenuation of the signal will be lower, so the
power will suffer a great loss. For correct exit of signal, the button should be without pressing.

Standby mode.

The Standby mode in the high power stages (EP1000 / EP1500) if there is no input signal in the
equipment, it goes into energy saving mode. When the stage detects a input signal, it is activated
again.
When it doesn´t detect a signal in one minute, the light "Power"(1) will turn off. When there is
input signal again, then the light "Power" (1) turns on and the light "prot"(2) will also light up for a
second. Once the light "prot"(2) is off, the sound will start to come out.
1 2
