Owner's Operator And Maintenance Manual

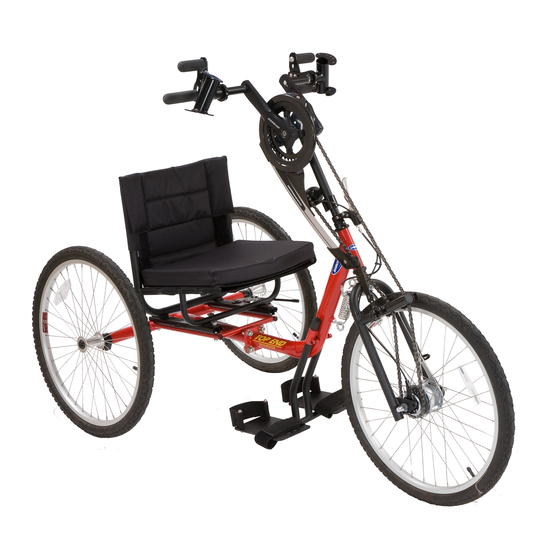

EXCELERATOR™ XLT SERIES
Excelerator
Excelerator
Excelerator
Excelerator
DEALER:
THIS MANUAL MUST BE GIVEN TO THE USER OF
THE HANDCYCLE.
REFER TO THE DEALER/TECHNICIAN INFORMATION ON PAGE 5 OF
THIS MANUAL.
USER:
BEFORE USING THIS HANDCYCLE, READ THIS MANUAL
AND SAVE FOR FUTURE REFERENCE.
Invacare products, parts, and services,
™
™
XLT Gold
™
For more information regarding
please visit: www.invacare.co
®
XLT
™
XLT Jr.
XLT Pro
m
