User Guide

Personal Computer
V G C - V A 1 ( P C V - E 5 1 M )

Advertisement

Table of Contents
loading

Related Manuals for Sony VGC-VA1

Summary of Contents for Sony VGC-VA1

  • Page 1: User Guide

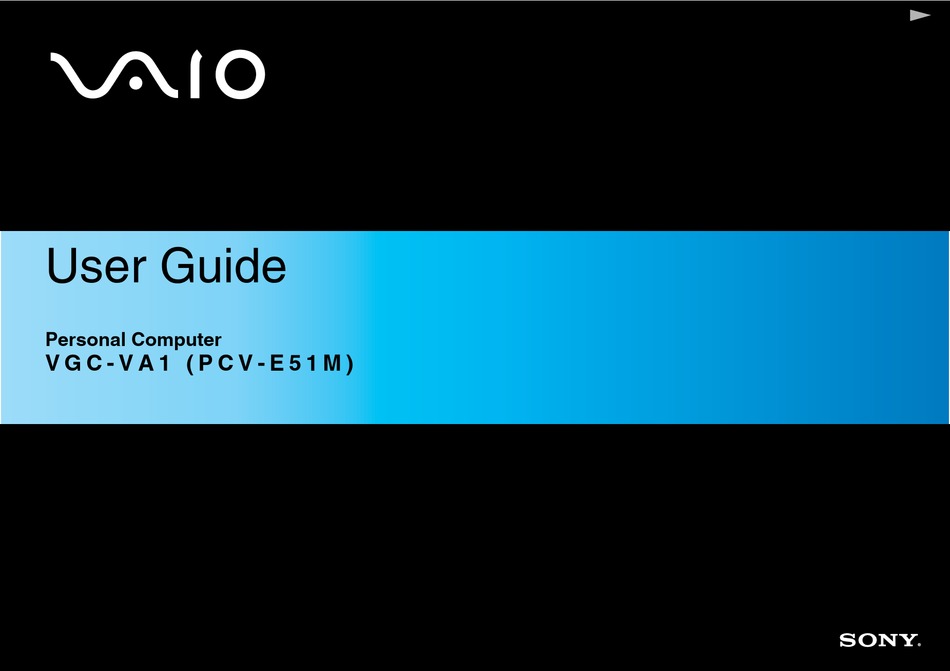

    User Guide Personal Computer V G C - V A 1 ( P C V - E 5 1 M )

  • Page 2: Before Use

    In the manual, the ™ or ® marks are not specified. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.
  • Page 3 Documentation Your documentation includes printed information and user guides to read on your VAIO computer. Guides are provided in PDF format, which you can easily browse through and print out. The My Club VAIO portal is a perfect starting point to use your computer — a comprehensive collection of everything you need to get the most from your computer.

  • Page 4: Printed Documentation

    ❑ Troubleshooting Guide — Contains solutions to common problems. ❑ Recovery Guide — Contains an explanation of how to recover your computer's system if you need to. ❑ Booklets containing the following information: Sony Guarantee conditions, Safety Regulations, Modem Regulations and Wireless LAN Regulations.
  • Page 5 Feeling creative? Click this icon for an overview of your software and check out our upgrade options. ❑ Wallpapers Click this icon and check out our most popular Sony and Club VAIO wallpapers. ❑ Links Click this icon and check out our most popular Sony and Club VAIO web sites. Before Use...

  • Page 6: Help And Support Center

    Before Use Help and Support Center Help and Support Center is a comprehensive resource for practical advice, tutorials, and demonstrations to help you learn to use Microsoft Windows XP and your computer. Use the Search feature, Index, or table of contents to view all Windows Help resources, including those that are on the Internet.

  • Page 7: Ergonomic Considerations

    Ergonomic Considerations Whenever possible, you should attempt to take account of the following ergonomic considerations: ❑ Position of your computer – Place the display directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, pointing device, or external mouse. Let your upper arms hang naturally at your sides.
  • Page 8 ❑ Viewing angle of the display – Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well. ❑...

  • Page 9: Getting Started

    Getting Started Getting Started This section describes how to get started with using your VAIO computer. ❑ Locating Controls and Ports (page 10) ❑ About the Indicator Lights (page 13) ❑ Connecting the Power Cord (page 14) ❑ Shutting Down Your Computer Safely (page 15)

  • Page 10: Locating Controls And Ports

    Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages. Front Power indicator (page 13) Drive indicator (page 13) MONITOR OFF indicator (page 13) MONITOR OFF button for turning off the display output and the speaker volume.
  • Page 11 Right Power button Hi-Speed USB (USB 2.0) port (page 69) ® i.LINK (IEEE1394) S400 port (page 72) AC Input port (page 14) Supports high-/full-/low- speeds. Getting Started...
  • Page 12 Left Composite Audio In connectors (page 37) Composite Video In connector for connecting a cable or satellite set-top box (STB) without the S Video Out connector. S Video In connector (page 37) VHF/UHF port (page 33) PC Card slot (page 47) WIRELESS LAN indicator (page 59) WIRELESS LAN switch...

  • Page 13: About The Indicator Lights

    About the Indicator Lights Your computer is equipped with the following indicator lights. Indicator Functions Power 1 Illuminates in green when the power of the computer is on, illuminates in orange when the computer is in Standby mode, and turns off when the computer is in Hibernate mode or off. Media Access Illuminates when data is read from or written to a memory card.

  • Page 14: Connecting The Power Cord

    Connecting the Power Cord Your computer's power cord must be plugged into an AC power source, such as an AC wall outlet, surge protector, or Uninterruptible Power Supply (UPS), before you can establish communication with your wireless keyboard and wireless mouse.

  • Page 15: Shutting Down Your Computer Safely

    Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start and then Turn Off Computer. The Turn off computer window appears.

  • Page 16: Using Your Vaio Computer

    Using Your VAIO Computer This section describes how to get the most out of using your computer. ❑ Using the Keyboard (page 17) ❑ Using the Mouse (page 22) ❑ Using the Optical Disc Drive (page 27) ❑ Using the TV Function (page 33) ❑...

  • Page 17: Using The Keyboard

    Using the Keyboard Your computer is supplied with a wireless keyboard. The wireless keyboard uses a standard key arrangement with additional keys that perform specific functions. HEADPHONES ✍ The above illustration may appear different from your model. Function keys Perform certain tasks. The task associated with each function key varies among software applications.
  • Page 18 POINTING D POINTING DEVICE VICE Using Your VAIO Computer Keyboard feet Extend to adjust the keyboard height. CONNECT button Press to enable the keyboard to communicate with the main unit. Battery compartment Storage compartment for the AA batteries. Pointing device switch Slide the switch to turn the pointing device on and off.
  • Page 19 Before You Use the Keyboard Four AA alkaline batteries are supplied with your computer for use in the wireless keyboard. Before attempting to use the wireless keyboard, you must install the batteries and establish communication between the computer and the keyboard. To connect your wireless keyboard, it must be located within a range of approximately 30 cm from the computer.
  • Page 20 To connect the wireless keyboard Insert the supplied four AA batteries (1) into the battery compartment on the bottom of the wireless keyboard. Turn on the computer. Slide the POWER switch (2) at the top of the keyboard to turn on the keyboard. Press the CONNECT button (3) on the left of the computer.
  • Page 21 Using Your VAIO Computer ✍ You can check the battery indicator ( ) in the LCD window on the keyboard for its battery power level. If the wireless keyboard does not operate properly, the batteries may need to be replaced. If the wireless keyboard is not being used for an extended period of time, remove the batteries to avoid possible damage from battery leakage.

  • Page 22: Using The Mouse

    Using the Mouse Your computer is supplied with a wireless optical mouse, which has no cables to plug in and uses a light-emitting diode (LED) instead of a ball. Using Your VAIO Computer Left button Click or double-click the left button to select items. To drag and drop items, hold the left button down while sliding the mouse, then release the button to drop the item.
  • Page 23 Before You Use the Mouse Two AA alkaline batteries are supplied with your computer for use in the wireless mouse. Before using the wireless mouse, you must install the batteries and establish communication between your computer and the mouse. To connect the wireless mouse, it must be located within a range of approximately 30 cm from the computer.
  • Page 24 To connect the wireless mouse Insert the two AA batteries (supplied with your computer) into the wireless mouse as shown below. Turn on the computer. Press the CONNECT button (1) on the left of the computer. Using Your VAIO Computer...
  • Page 25 Using Your VAIO Computer Turn over the wireless mouse, slide the power switch to the ON position, and press the CONNECT button. Communication between the wireless mouse and the computer should now be established. Steps 3 and 4 must be completed within 10 seconds of each other. ✍...
  • Page 26 Adjusting the Mouse Functions Click Start and then Control Panel. Click Printers and Other Hardware. Click Mouse. The Mouse Properties window appears. Change the settings. Using Your VAIO Computer...

  • Page 27: Using The Optical Disc Drive

    Using the Optical Disc Drive Your computer is equipped with an optical disc drive. To insert a disc Turn on the computer. Press the drive eject button (1) to open the drive. The tray slides out. Place a disc in the middle of the tray with the label side facing up and gently push until the disc clicks into place. 4 Close the tray by pushing it in gently.
  • Page 28 Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO CD drives with discs that not compliant with the official "CD"...
  • Page 29 ✍ Supports writing to DVD-RW discs compliant with DVD-RW version 1.1/1.2. Supports writing to DVD-R discs compliant with DVD-R for General version 2.0/2.1. Supports 8cm disc reading, but does not support 8cm disc writing. Writing to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording. Notes on writing data onto a disc ❑...

  • Page 30: Playing Cds

    Notes on playing DVDs To achieve optimum performance when playing DVDs, you should follow these recommendations. ❑ Close all open applications before playing a DVD movie. ❑ Do not use memory-resident utility software to speed up disc access when playing a DVD. This may cause the computer to malfunction.

  • Page 31: Copying Files To Cds

    Copying Files to CDs To determine which type of CD your computer supports, see Reading and Writing CDs and DVDs To copy files to a CD-RW or CD-R Do not strike or shake the computer while writing data onto a disc. Insert a blank CD-R or CD-RW disc into the optical disc drive.

  • Page 32: Playing Dvds

    Playing DVDs To play a DVD Close all open programs. Insert the DVD into the optical disc drive. Click Start and point to All Programs. Select a DVD software program to play the DVD. For instructions on how to use a program, see the help guide included with the DVD software program. Copying Files to DVDs To copy files to a DVD-R or DVD-RW Insert the disc into the optical disc drive.

  • Page 33: Using The Tv Function

    Using Your VAIO Computer Using the TV Function Your computer has a TV tuner board installed along with the Microsoft Windows XP Media Center Edition operating system to enhance your computing experience. Media Center provides you with a wide range of TV, DVD, and video viewing, as well as music recording and playback. This section describes how to set up your TV, set-top box, and other equipment.

  • Page 34: Setting Up Tv Connections

    Using Your VAIO Computer Setting Up TV Connections The following connections may not be available depending on the country of your residency. The best method of connecting your computer system, TV monitor or display, and cable service access, depends on the type of cable connection available in your home.

  • Page 35: Connecting To Standard Cable Access (Catv)

    Connecting to standard cable access (CATV) To connect in CATV mode Connect one end of the TV coaxial cable (1) (not supplied) to your cable service access (wall outlet) (2). Connect the other end of the coaxial cable to the VHF/UHF port (3) on the computer. Using Your VAIO Computer...

  • Page 36: Connecting To A Standard Antenna

    Connecting to a standard antenna You can connect your computer to an indoor/outdoor antenna system. ✍ If you are connecting to an indoor/outdoor antenna, you may need to reorient the antenna for best reception. Move the antenna cable away from other power sources or connectors to reduce reception interference.

  • Page 37: Connecting With A Cable Or Satellite Set-Top Box (Stb)

    Connecting with a cable or satellite set-top box (STB) You can connect your computer to cable service access that uses a set-top box (cable or satellite). When using the set-top box (STB) setup, you can only change channels through the STB, using its controls or supplied remote control. When using the STB setup: ❑...
  • Page 38 Using Your VAIO Computer...
  • Page 39 To connect in STB mode (Option 2) Connect one end of the TV coaxial cable (1) (supplied) to your cable service access (wall outlet) (2). Connect the other end to the VHF/UHF IN connector on the back panel of your set-top box (STB) (3). Connect a second TV coaxial cable (4) (not supplied) to the VHF/UHF OUT connector on your STB unit (3).
  • Page 40 Using Your VAIO Computer...

  • Page 41: Using The Remote Control

    Using the Remote Control Your computer is supplied with a remote control for using Media Center features, including TV channel selection. Using Your VAIO Computer MY MUSIC button Press to view and listen to your music playlists. MY TV button Press to view the My TV menu.
  • Page 42 BACK button Press to return to the previous window. VOL button Press to increase (+) or decrease (-) the volume. RECORDED TV button Press to view previously recorded TV programs (In My TV window). GUIDE button Press to view the TV program guide for your area. Channel number buttons (0-9) Press to select specific channels or enter text.
  • Page 43 Before you use the remote control Before using the remote control, you need to insert the supplied AA batteries and connect the remote sensor to enable communication between the computer and the remote commander. To insert batteries Turn the remote commander over. Press in the tab (1) and lift the battery cover up.
  • Page 44 To connect the remote sensor Choose the USB port (1) you prefer to use. Plug the remote sensor cable (2) into the USB port. Position the remote sensor (3) to enable unobstructed communication with the remote control. ✍ If you are using a cable or satellite set-top box, you can attach the remote sensor control to the remote sensor, which enables you to control the set- top box with the remote control.
  • Page 45 To connect the remote sensor control Plug the remote sensor control cable (1) into either connector (1 or 2) on the back of the remote sensor (2). Remove the adhesive tape cover from the bottom of the remote sensor control. Attach the remote sensor control (3) onto the set-top box (4) near the infrared port (5).

  • Page 46: Using Pc Cards

    Using PC Cards PC Cards allow you to connect portable external devices to your computer. Inserting a PC Card Some PC Cards or their functions may not be compatible with the computer. You do not need to shut down the computer before inserting or removing a PC Card. To insert a PC Card Hold the PC Card with the label facing toward the front of the computer.

  • Page 47: Removing A Pc Card

    ✍ Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not recognized.

  • Page 48: Using A Memory Stick

    Because it is removable, it can be used for external data storage. For the latest information on Memory Stick devices, visit the Sony online support Web site at http://www.memorystick.com. Write-protecting a Memory Stick Some versions of Memory Stick are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting.
  • Page 49 Using Your VAIO Computer Some Memory Stick versions do not have an erasure prevention switch.
  • Page 50 Inserting a Memory Stick There are two ways you can insert a Memory Stick into your computer: ❑ Using the Memory Stick slot; ❑ Using a PC Card slot. To do this, you need an optional PC Card adapter. The Memory Stick slot is located behind a protective cover on the front of the computer. You need to open the cover before accessing the memory card slots.
  • Page 51 Using Your VAIO Computer Be sure to hold the Memory Stick with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging the computer or the Memory Stick, do not force the Memory Stick into the slot if it does not insert smoothly. Do not insert more than one Memory Stick into the Memory Stick slot.
  • Page 52 To view the contents of the Memory Stick Click Start and then My Computer to open the My Computer window. Double-click the Memory Stick icon To format a Memory Stick Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details. to view the list of data files saved on the Memory Stick.
  • Page 53 Removing a Memory Stick To remove a Memory Stick using the Memory Stick slot Check that the Media Access indicator is off. Push the Memory Stick in toward the computer. The Memory Stick ejects. Pull the Memory Stick out of the slot. Always remove the Memory Stick gently, or it may pop out unexpectedly.

  • Page 54: Using Other Memory Cards

    Using Other Memory Cards In addition to the Memory Stick slot, your computer is equipped with three other memory card slots to accommodate many popular types of memory cards. You can use these slots to transfer data between digital cameras, camcorders, music players, and other audio/video devices.

  • Page 55: Inserting A Memory Card

    Inserting a Memory Card To insert a memory card Flip the front panel down, using your fingertip. Do not use force to open the cover. Locate the appropriate slot for the memory card you want to use. Hold the memory card with the arrow facing up and toward the memory card slot. Carefully slide the memory card into the slot until it clicks in place.

  • Page 56: Removing A Memory Card

    Removing a Memory Card The correct way to remove a memory card from a memory card slot varies, depending on the media or slot. Use care when removing a memory card to avoid damage to the slot or card. Do not remove a memory card while the To remove a memory card Check that the Media Access indicator is off.

  • Page 57: Using The Internet

    Using the Internet Setting Up a Dial-up Internet Connection Before you can connect to the Internet, you need to connect your computer to a telephone line via a telephone cable (not supplied). Once you set up your telephone cable, you're ready to connect to the Internet. To connect a telephone cable Plug one end of the phone cable (1) into the modem port Plug the other end into the wall jack (2).

  • Page 58: Using Wireless Lan (Wlan)

    Using Wireless LAN (WLAN) Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each other through a powerful network. A WLAN is a network in which a user can connect to a local area network (LAN) through a wireless (radio) connection.

  • Page 59: Communicating Without An Access Point (Ad-Hoc)

    Using Your VAIO Computer Communicating without an Access Point (Ad-hoc) An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or Access Point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.
  • Page 60 To communicate without an Access Point (ad-hoc) Turn on the WIRELESS or WIRELESS LAN switch. The WIRELESS LAN indicator lights up. Click Start and then Control Panel. Click Network and Internet Connections. Click Network Connections. The Network Connections window appears. Right-click Wireless Network Connection, then click Properties.
  • Page 61 14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the bottom of the screen. 15 Click OK. Your Network name appears in the Preferred networks. 16 Click Advanced. The Advanced window appears. 17 Select the Computer-to-computer (ad hoc) networks only option button.
  • Page 62 To disconnect from a computer-to-computer (ad-hoc) network Click Start and then Control Panel. Click Network and Internet Connections. Click Network Connections. The Network Connections window appears. In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection. The Wireless Network Connection Status window appears. Click Properties.
  • Page 63 An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an Access Point, for example the Sony Access Point. The Access Point bridges the wireless and wired LAN and acts as a central controller for the Wireless LAN.
  • Page 64 To connect to a wireless network Make sure an access point is set up. See the instructions that accompanied the access point for more information. Turn on the WIRELESS LAN switch. The WIRELESS LAN indicator lights up. Click Start and then Control Panel. Click Network and Internet Connections.
  • Page 65 To connect to a wireless network (Models with the VAIO Wireless Utility software only) Use the VAIO Wireless Utility software to guide you through the set up process and provide you with more detailed information about wireless connections. Make sure an access point is set up. See the instructions that accompanied the access point for more information.

  • Page 66: Using Peripheral Devices

    Using Peripheral Devices Using Peripheral Devices You can add functionality to your computer by using the various ports on the computer. ❑ Connecting an External Microphone (page 68) ❑ Connecting a Universal Serial Bus (USB) Device (page 69) ❑ Connecting a Printer (page 71) ❑...

  • Page 67: Connecting An External Microphone

    Connecting an External Microphone If you need to use a sound input device (for example, to chat on the Internet) you need to plug in an external microphone. To connect an external microphone Plug the microphone cable (1) into the microphone connector (2) m. ✍...

  • Page 68: Connecting A Universal Serial Bus (Usb) Device

    Connecting a Universal Serial Bus (USB) Device Connecting a USB Floppy Disk Drive You can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive Choose the USB port you prefer to use. Plug the USB floppy disk drive cable into the USB port.

  • Page 69: Disconnecting A Usb Floppy Disk Drive

    Disconnecting a USB floppy disk drive You can disconnect a USB floppy disk drive when the computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction. If the computer is off, you can unplug the USB cable directly from the computer.

  • Page 70: Connecting A Printer

    Connecting a Printer You can connect a Windows-compatible printer to your computer to print documents. Connecting a Printer using the USB Port You can connect a USB printer compatible with your version of Windows to the computer. ✍ You need to slide the back panel cover up to access the USB ports on the bottom panel. To connect a printer using the USB port Plug the printer power cord into an AC outlet (1).

  • Page 71: Connecting An I.link Device

    Connecting an i.LINK Device Notes on connecting i.LINK devices ❑ The computer includes an i.LINK (IEEE1394) port, which you can use to connect to an i.LINK device such as a digital video camera recorder or to connect two VAIO computers in order to copy, delete or edit files. ❑...

  • Page 72: Connecting A Digital Video Camera Recorder

    On Sony digital video cameras, ports labeled DV Out, DV In/Out or i.LINK are i.LINK-compatible. The Sony digital video camera recorder shown here is an example; your digital video camera recorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick when using an i.LINK connection.

  • Page 73: Connecting To A Network (Lan)

    Connecting to a Network (LAN) You can connect your computer to 100BASE-TX/10BASE-T-type networks via an Ethernet network cable. Connect one end of an optional network cable to the Network (Ethernet) port on the left of the computer and the other end to your network. For detailed settings and devices needed to connect to the network, see your network administrator.
  • Page 74 Telephone lines cannot be connected to the Network (LAN) connector on your computer. If the Network (LAN) connector is connected to the telephone lines mentioned below, high electric current to the connector may cause damage, overheating or fire. - Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone) - Public telephone subscriber line - PBX (private branch exchange) Do not plug a telephone cable into the network port.

  • Page 75: Customizing Your Vaio Computer

    Customizing Your VAIO Computer Customizing Your VAIO Computer This section briefly describes how to change the main settings of your computer. ❑ Setting the Password (page 77) ❑ Setting Up Your Computer with VAIO Control Center (page 80) ❑ Using the Power Saving Modes (page 81)

  • Page 76: Setting The Password

    Customizing Your VAIO Computer Setting the Password Use one of the BIOS functions to set the password. Once you have set the password, you will have to enter the password after the VAIO logo appears to start your computer. The power-on password will allow you to protect your computer from unauthorized access.

  • Page 77: Adding The Power-On Password

    Adding the Power-on Password Once you have set the power-on password, you cannot start the computer without entering the password. Make sure not to forget the password. Write down your password and keep it safe and private from other people. If you forget the power-on password and need assistance to reset, a password reset fee will be charged, and your computer may need to be sent in for depot service for password reset.

  • Page 78: Changing/Removing The Power-On Password

    Changing/Removing the Power-on Password To change or remove the power-on password Turn on the computer. Press the F2 key when the VAIO logo appears. Enter the current password for Enter Current Password: The BIOS setup screen appears. Use the < or , key to select Security on the Boot menu to display another screen, select Change Supervisor Password, and then press the Enter key.

  • Page 79: Setting Up Your Computer With Vaio Control Center

    Setting Up Your Computer with VAIO Control Center The VAIO Control Center utility allows you to consult system information and specify preferences for system behavior. To use VAIO Control Center Click Start, point to All Programs, and click VAIO Control Center. The VAIO Control Center window appears.

  • Page 80: Using The Power Saving Modes

    Using the Power Saving Modes In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate. The color of the power indicator light behind the power button tells you which mode the computer is in. Power indicator Mode Green...

  • Page 81: Using Standby Mode

    Using Standby Mode Standby mode turns off the LCD screen and sets the hard disk and the CPU to a low power consumption mode. The umber power light flashes in this mode. To activate Standby mode Click Start and then Turn Off Computer. Click Stand By.

  • Page 82: Using Hibernate Mode

    Using Hibernate Mode In Hibernate mode, the state of the system is saved on the hard disk and power is turned off. The power indicator light is off in this mode. To activate Hibernate mode Click Start and then Turn Off Computer. Click Hibernate.

  • Page 83: Upgrading Your Vaio Computer

    Upgrading Your VAIO Computer Upgrading Your VAIO Computer Your computer and memory modules use high precision components and electronic connectors technology. To avoid the invalidation of your guarantee due to mishandling, we recommend that: ❑ You contact your dealer to install a new memory module. ❑...

  • Page 84: Before Upgrading Your Computer

    Before Upgrading Your Computer The upgrading procedures described in this section assume that you are familiar with the general terminology associated with personal computers, safety practices, required regulatory compliances, and the modification of electronic equipment. Disconnect the computer from its power source and from telecommunications links, networks, or modems before you open the computer or follow any procedures in this section.

  • Page 85: Adding And Removing Memory

    Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. The number of available slots depends on the configuration of your model.
  • Page 86 ❑ Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from electrostatic discharge. ❑ Introducing any liquids or any foreign substances or objects into the memory slots, or other internal components of the computer, will result in damage to the computer and any repair costs will not be covered by the warranty.

  • Page 87: Removing And Installing A Memory Module

    Removing and Installing a Memory Module If you remove the top panel immediately after you shut down the computer, the internal components may be too hot to touch. Wait about one hour to let the components cool down before you attempt to remove the panel. To change or add a memory module Shut down the computer and turn off all peripheral devices, such as a printer.
  • Page 88 Upgrading Your VAIO Computer Press and hold the release button (1), slide the top panel (2) toward the back of the computer, lift the panel, and set it aside.
  • Page 89 Unscrew the two screws on the memory cover (1), lift the cover, and set it aside. Touch a metal object (such as the chassis frame) to discharge static electricity. Upgrading Your VAIO Computer...
  • Page 90 Locate the memory module(s) you wish to remove. Push down on the latches (1), located on both sides of the module, to gently eject it from the slot. Grasp the memory module by the sides and remove from the computer. Store the module in a static-free bag. Upgrading Your VAIO Computer...
  • Page 91 Locate the center notch (1) on the bottom edge of the memory module and align it to the center bump in the open module slot. 10 Firmly insert the lower edge of the module (2) into the slot by pressing down evenly against the module's upper corners. The side latches (3) snap into position, holding the memory module in place.
  • Page 92 Upgrading Your VAIO Computer 11 Replace the memory cover (1) and tighten the two screws. 12 Gently slide the top panel onto the computer until it snaps into place.

  • Page 93: Viewing The Amount Of Memory

    Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, point to All Programs, and click VAIO Control Center. Click the System Information tab in the VAIO Control Center window. Double-click the System Information folder. Double-click the System Information icon.

  • Page 94: Installing The Hard Disk Drive

    Upgrading Your VAIO Computer Installing the Hard Disk Drive Your computer may be equipped with open internal bays to hold additional 3.5-inch hard disk drives. See the online Specifications for details about the installed hard disk drive. Review the manufacturer's information provided with your new hard disk drive before attempting to install it in the computer. Replacing the Original Hard Disk Drive If you replace the original, factory-installed hard disk drive, you may need to correct the drive mapping, and/or create a VAIO Recovery Media Kit.
  • Page 95 About hard disk drive recovery When you replace the original hard disk drive, the preinstalled VAIO Recovery utility cannot restore the drive partitions, operating system, or original software programs. Before replacing the hard disk drive, create a VAIO Recovery Media Kit. ✍...
  • Page 96 Drive letter assignment When a new hard disk drive is installed, an identifying drive letter is assigned. The drive letter assignment becomes effective after you register for the first time or after recovering your computer with the VAIO Recovery utility. The Click to DVD software creates a new folder location on the new hard disk drive.

  • Page 97: Installing An Additional Hard Disk Drive

    Installing an Additional Hard Disk Drive You can install up to two SATA hard disk drives to the internal hard disk drive bay. If you remove the back panel immediately after you shut down the computer, the internal components may be too hot to touch. Wait about one hour to let the components cool down before you attempt to remove the panel.
  • Page 98 Unscrew the four screws on the bottom of the back panel (1). Slide the back panel toward the bottom of the computer, lift the panel, and set it aside. Upgrading Your VAIO Computer...
  • Page 99 Unscrew the two screws on the hard disk cover (1), lift the cover, and set it aside. Unscrew the four screws on the drive holder (1). Upgrading Your VAIO Computer...
  • Page 100 Upgrading Your VAIO Computer Pull the drive holder slightly out and detach the power and interface cables from the original hard disk drive that is preinstalled in the computer.
  • Page 101 Slide the drive holder completely out. 10 Slide a new drive into the drive holder and align the holes on each side of the drive bay. 11 Secure the drive to the drive holder with screws, through the holes on each side of the drive holder. ✍...
  • Page 102 Upgrading Your VAIO Computer 12 Align the drive holder with the tracks on the inside of the chassis. Connect the power and internal SATA cables to the original and new hard disks and slide the drive holder in completely. 13 Replace the hard disk cover and the back panel, and then place the computer upright.

  • Page 103: Identifying The Additional Hard Disk Space

    Identifying the Additional Hard Disk Space When you initialize the new hard disk, it must be configured as an extended partition in Windows NT file system (NTFS) format. To identify the additional hard disk space Log on to Windows as a user with administrator rights. Click Start and right-click My Computer.
  • Page 104 Precautions Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. ❑ On Handling the LCD Screen (page 106) ❑ On Using the Power Source (page 107) ❑ On Handling Your Computer (page 108) ❑...

  • Page 105: On Handling The Lcd Screen

    On Handling the LCD Screen ❑ Do not leave the LCD facing the sun. This could damage the LCD. Be careful when using the computer near a window. ❑ Do not scratch the LCD or exert pressure on it. This could cause a malfunction. ❑...

  • Page 106: On Using The Power Source

    ❑ Unplug the computer from the AC outlet if you are planning to not use the computer for a long time. ❑ Make sure that the AC outlet is easily accessible. ❑ Use the power cord supplied with the computer or genuine Sony products. Do not use any other power cord as it may cause a malfunction.

  • Page 107: On Handling Your Computer

    On Handling Your Computer ❑ Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of the computer. ❑...
  • Page 108 If any problems occur, unplug the computer and contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site.

  • Page 109: On Handling Discs

    On Handling Discs ❑ Do not touch the surface of the disc. ❑ Do not drop or bend the disc. ❑ Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below: ❑...
  • Page 110 On Handling a Memory Stick ❑ Do not use the Memory Stick in locations that are subject to static electricity or electrical noise. ❑ Do not touch the Memory Stick connector with your finger or metallic objects. ❑ Use only the label supplied with the Memory Stick as a label. ❑...

  • Page 111: On Handling The Hard Disk

    On Handling the Hard Disk The hard disk has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock or dust. Although the hard disk has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling the computer.

  • Page 112: Troubleshooting

    Troubleshooting This section describes how to solve common problems you might encounter when using your computer. Many problems have simple solutions. Try these suggestions before visiting the Sony online support Web site at http://www.vaio-link.com. ❑ Computer (page 114) ❑ System Security (page 121) ❑...
  • Page 113 Computer What should I do if my computer won't start? ❑ Make sure the computer is securely plugged into a power source and turned on. Make sure the power indicator shows the power is on. ❑ Make sure the optical disc drive (if applicable) is empty. ❑...
  • Page 114 The Save configuration changes and exit now? window appears. Select OK, and press the Enter key. The computer restarts. If this occurs on a regular basis, contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site. Troubleshooting...
  • Page 115 What should I do if the power indicator (Green) lights but my screen does not display anything when I turn on my computer? If nothing still appears on your screen after a while Press the power button for more than four seconds to check that the power indicator goes out. Then turn on the computer again.
  • Page 116 What should I do if the message "Operating system not found" appears when my computer starts, and why won't Windows start? ❑ Make sure the computer does not have a "non-bootable" CD or DVD in the optical disc drive (if applicable). ❑...
  • Page 117 What should I do if my computer or software stops responding? ❑ It is best to turn off the computer using the Turn Off Computer option on the Microsoft Windows Start menu, located on the taskbar. Using other methods, including those listed below, may result in loss of unsaved data. ❑...

  • Page 118: Why Won't My Computer Enter Standby Or Hibernate Mode

    Why won't my computer enter Standby or Hibernate mode? The computer may become unstable if the operating mode is changed before the computer completely enters Standby or Hibernate. To restore the computer to normal operating stability Close all open programs. Restart the computer.
  • Page 119 What should I do if I cannot remember the password? If you have forgotten the password, contact an authorized Sony Service Center to cancel it. A cancellation fee will be charged. To find the nearest center or agent, visit the Sony online support Web site.

  • Page 120: System Security

    System Security This section provides information about keeping your computer operating smoothly and protecting against potential threats to the computer's security. How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on the computer. The best way to protect the computer against security threats, such as viruses, is to download and install the latest Windows updates regularly.

  • Page 121: How Do I Keep My Antivirus Software Updated

    To visit the Windows Updates web site Connect to the Internet. Type http://windowsupdate.microsoft.com/ in the address bar of your browser. The Microsoft Windows Update and Security Warning windows appear. In the Security Warning window, start installation and run Windows Update. In the Microsoft Windows Update window, select an installation type, and follow the on-screen instructions.
  • Page 122 ❑ Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone. ❑ Make sure the telephone number the program is dialing is correct. ❑ Make sure the software you are using is compatible with the computer's modem. (All preinstalled Sony programs are compatible.) ❑...

  • Page 123: Why Is My Modem Connection Slow

    Troubleshooting Why is my modem connection slow? The computer is equipped with a V.92/ V.90 compatible modem. Many factors may influence modem connection speed, including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider (ISP), follow these steps: ❑...
  • Page 124 Networking Why can't my computer connect to a wireless LAN access point? ❑ Connection availability is affected by distance and obstructions. You may need to move the computer away from obstructions or closer to any access point you may be using. ❑...

  • Page 125: Why Is The Data Transfer Speed Slow

    Why is the data transfer speed slow? ❑ The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed, move the computer away from obstructions or closer to any access point you may be using.
  • Page 126 ❑ Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. ❑ If you are using a wireless LAN access point, see connectivity information contained in your access point instructions.

  • Page 127: Cds And Dvds

    CDs and DVDs Why does my computer freeze when I try to read a disc? The disc the computer is trying to read may be dirty or damaged. Follow these steps: Restart the computer by clicking Start, Turn Off Computer, and Restart. Eject the disc from the optical disc drive.
  • Page 128 What should I do if the optical disc drive isn't playing my CD or DVD properly? ❑ Make sure the disc was inserted into the optical disc drive with the label facing up. ❑ Make sure the necessary program(s) is installed according to the manufacturer's instructions. ❑...
  • Page 129 Double-click the optical disc drive device to open the submenu. Double-click the listed drive, and select the Properties tab. Click to select the Enable digital CD audio for this CD-ROM device check box, if it is not selected. You can confirm the driver software by selecting the Driver tab, and clicking Driver Details. Click OK to close the window.

  • Page 130: What Should I Do If I Cannot Write To Dvd

    What should I do if I cannot write to CD? ❑ Do not launch any software application or allow any to launch automatically, not even a screen saver. ❑ Do not use the keyboard. ❑ Do not use a CD-R/RW disc that has a label affixed to it. This could cause a write error or other damage. What should I do if I cannot write to DVD? This Q &...
  • Page 131 Display Why did the computer screen (LCD) go blank? ❑ The computer screen may go blank if the computer has lost power or has entered a power saving mode (Standby or Hibernate). If the computer is in Standby mode, press any key to activate the computer screen. See Using the Power Saving Modes (page 81) for more information.
  • Page 132 Printing Why can't I print a document? ❑ Make sure the printer is on, and the printer cable is securely connected to the ports on the printer and computer. ❑ Make sure the printer is compatible with the Windows operating system installed on the computer. ❑...
  • Page 133 Troubleshooting Microphone Why doesn't my microphone work? If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the Microphone jack on the computer.
  • Page 134 Mouse What should I do if the computer doesn't recognize the mouse? ❑ Confirm that the supplied AA batteries are properly installed. ❑ Press the CONNECT button on the mouse and the computer to re-establish the connection between the two devices. What should I do if the pointer doesn't move when I use the mouse? ❑...
  • Page 135 Speakers Why won't my speakers work? ❑ The speaker volume may have been turned off. Press the MONITOR OFF button on the front of the computer or press the Mute button on the keyboard. ❑ The keyboard also has a volume control, make sure the volume is turned up loud enough to hear sound. Why can't I hear sound from my speakers? ❑...
  • Page 136 Keyboard What should I do if the keyboard configuration is wrong? ❑ The language layout of the computer's keyboard is specified on the sticker on the box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. ❑...

  • Page 137: Floppy Disks

    Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? The computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port. If you need to secure the connection, wait a few moments for the computer to recognize the drive.
  • Page 138 ❑ Make sure the PC Card is compatible with the Microsoft Windows operating system installed on the computer. ❑ See the instructions that accompanied your PC Card. You may need to install driver software if you are not using a Sony PC Card.
  • Page 139 Sony used only to designate that a product contains an IEEE1394 connection. The i.LINK connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may not communicate with each other.

  • Page 140: Memory Stick

    ❑ Using recorded music requires permission of the copyright holders. ❑ Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources. Can I copy images from a digital video camera using a Memory Stick? Yes, and you can view video clips that you have recorded with Memory Stick-compatible video camera recorders.
  • Page 141 Peripherals What should I do if I cannot connect a USB device? ❑ If applicable, check the USB device is switched on and using its own power supply. For example, if you are using a digital camera, check the battery is charged. If you are using a printer, check the power cable is connected properly to the AC outlet.
  • Page 142 Mastering Studio, VAIO Control Center, VAIO Edit Components, VAIO Media, Image Converter, My Club VAIO, VAIO Update, Memory Stick, the Memory Stick logo, VAIO and the VAIO logo are trademarks of Sony Corporation. Intel and Pentium are trademarks or registered trademarks of Intel Corporation.

Table of Contents
