AS90000
ENGLISH
Dental Air Abrasion & Polishing Unit
Installation & Operation Maintenance Manual
ATTENTION:
DO NOT CONNECT TO THE AIR SUPPLY BEFORE READING THIS GUIDE.
AquaCare
40°C
CLASS
80%
User Manual Iss. 6
IIa
I/LIT0101 Issued 07/2016
15°C
10%
Medical Device
Temperature Limit
1.95KG
9051184
0120
www.velopex.com
MEDIVANCE INSTRUMENTS LTD. • Barretts Green Road • Harlesden • London • NW10 7AP
https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ
Advertisement
Table of Contents
Related Manuals for AquaCare AS90000
Summary of Contents for AquaCare AS90000

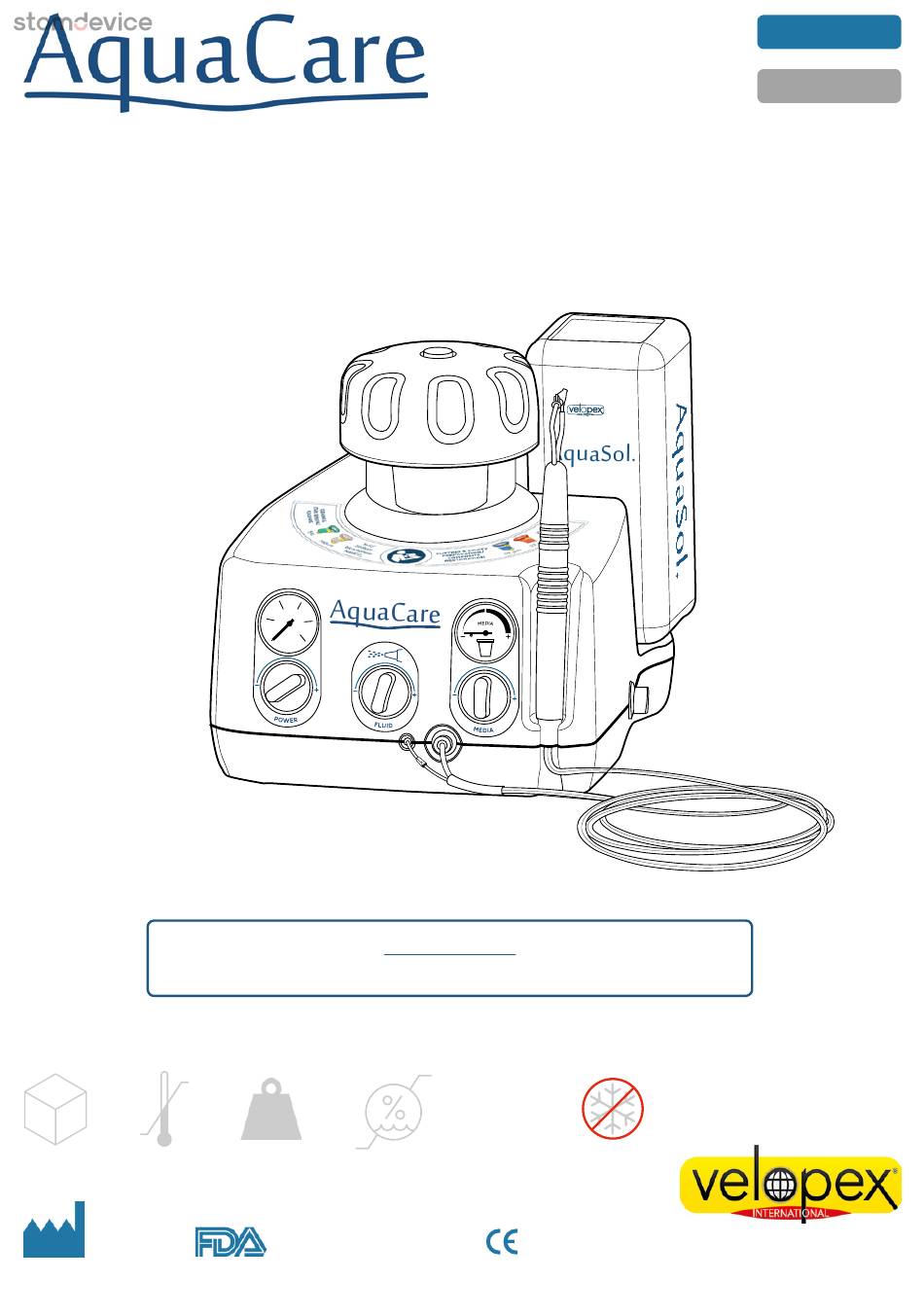

- Page 1 AS90000 ENGLISH Dental Air Abrasion & Polishing Unit Installation & Operation Maintenance Manual ATTENTION: DO NOT CONNECT TO THE AIR SUPPLY BEFORE READING THIS GUIDE. AquaCare 40°C CLASS User Manual Iss. 6 I/LIT0101 Issued 07/2016 15°C Medical Device Temperature Limit 1.95KG...
-
Page 2: Table Of Contents
FITTING THE DISPOSABLE FEEDLINE AND TIP CONNECTING THE AIR SUPPLY INSTALLATION TEST REMOVING THE DOSING CHAMBER LID INSERTING THE POWDER CARTRIDGES PREPARING THE AQUACARE FOR FIRST USE AquaCare: Introduction https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 3: Contents
Contents OPERATION FIRST STEPS TO MASTERING THE AQUACARE SUGGESTED TREATMENT METHODS PREPARATIONS BEFORE TREATMENT TREATMENTS - Cleaning - Fissure Caries - Cavity Preparation - Removal of Composite Restorations - Bonding Orthodontic Brackets MAINTENANCE STERILISING THE HANDPIECE HANDPIECE MAINTENANCE TWIN TUBE ASSEMBLY MAINTENANCE... -
Page 4: Indications For Use And Contraindications
Contraindications For Use The AquaCare is not intended for removal of calculus. The AquaCare is not intended for cutting or removal of amalgam. Please refer to INTRODUCTION: SAFETY WARNINGS, Pg 5/6, and read these safety notes carefully before using the machine. -
Page 5: Safety Warnings
ALWAYS AIM TOWARDS THE INCISAL EDGE OF THE TOOTH. The AquaCare Twin may cause soft tissue damage, including inflammation, bleeding, and creation of an air embolism. The AquaCare Twin may cause hard tissue damage, including etching or abrasion of enamel or exposed root surfaces of the teeth. - Page 6 Do not place the unit in direct sunlight. When turning the AquaCare on and off, ensure that the nozzle is aimed into the inlet of your evacuation unit, and that the evacuation unit is switched on.
-
Page 7: Table Of Symbols
1. The Power and Media controls operate by continuous rotation (approximately 7 turns) from the minimum to maximum position. 2. The Fluid control has approxiamately 3 rotations from minimum to maximum position. AquaCare: Introduction https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 8: Technical Description
READ THIS MANUAL FULLY BEFORE ATTEMPTING TO INSTALL OR USE THE AQUACARE MACHINE. The AquaCare is a fluid abrasion unit which cuts by emitting a stream of air, fluid and powder from its handpiece. It can be loaded with two different powders for use in cutting and cleaning operations. -
Page 9: Contents Of The Packaging
1 x Cartridge of gamma irradiated aluminium oxide, 29 micron (Blue). J. 1 x Cartridge of gamma irradiated fine granular sodium bicarbonate (Clear). K. 1 x Cartridge of gamma irradiated Sylc for AquaCare (Green). L. 1 x Pack of 5 glass slides. -
Page 10: Aquacare Parts And Features

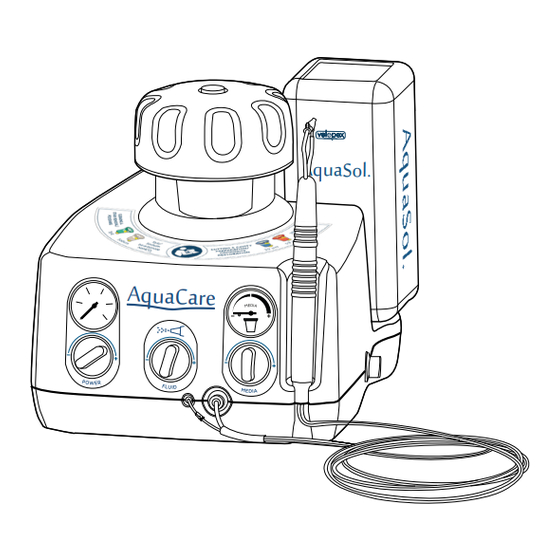

Handpiece Nozzle/Tip Fluid Control Handpiece Power Control Handpiece Holder Air Pressure Gauge ON/OFF Switch Media Gauge Foot Pedal Dosing Chamber Foot Pedal Lifting Arch AquaCare: Parts and Features https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 11: Rear View Of Aquacare
Rear View Of AquaCare Unused Connection + Blanking Plug Foot Pedal Connection Black WATER (4 Way Tubing) Foot Pedal Connection White FOOT PEDAL (4 Way Tubing) 20. Air In Supply - Blue Foot Pedal Connection Green (4 Way Tubing) Foot Pedal Connection Yellow... -
Page 12: Handpiece
Handpiece Fluid Connection Powder Connection Feedline And Tip Handle Nozzle (Range Of Sizes) 30. Twin Tube Handpiece Front Check Valve Hand Grip AquaCare: Parts and Features https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 13: Powder Cartridges
ProClean (Sodium Bicarbonate) For cutting, cavity preparation and For cleaning and polishing composite preparation ProCut+ (Aluminium Oxide 53μ) ProSylc (Sylc for AquaCare For cutting, cavity preparation and For cleaning and polishing composite preparation AquaCare: Parts and Features https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 14: Siting The Aquacare
Siting The AquaCare Remove the AquaCare from its box and retain the packaging, use to return unit for service as required. If you are using the AquaCare with the Velopex Patient Treatment Centre, place the machine on the top shelf of the trolley, following the instructions received with the trolley. -
Page 15: Attaching The Foot Pedal
B. Connect the foot pedal to the back of the machine by pushing each coloured tube into its colour-corresponding connector. TIP: To disconnect, push the coloured connector into the machine, and gently pull the tube out. WATER FOOT PEDAL AquaCare: Installation https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 16: Inserting The Fluid Container
WARNING: The above fluid container is filled with a 17% alcohol solution. This acts as a biostatic solution in order to reduce biological growth within the fluid system. NOTE: Not for human consumption. Should the AquaCare unit be used with another solution obtained by the user, this must provide the required biostatic effect to ensure the machine’s fluid system cannot sustain biological growth. Failure to follow these guidelines could lead to user or patient contracting some sort of infection. -
Page 17: Assembling The Handpiece
To switch tips and feedlines remove the existing feedline tip and discard. Then follow the steps above. Purge the fluid through the system. See Maintenance: Purging the AquaCare Pg 33. AquaCare: Installation https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 18: Connecting The Air Supply
Pressure between 4 bar (72psi) and 7 bar (100psi). Maximum flow rate +70 l/min. 6mm O/D input connection. See PARTS AND FEATURES: REAR VIEW OF AQUACARE, Pg 11. The practice’s existing air supply system/compressor can be used provided it is fitted with a water removing filter and shut-off valve in the supply line. -
Page 19: Installation Test
Installation Test Before adding the powder to complete installation of the AquaCare, you can check that the installation has been performed correctly using the following procedure: A. Check that the machine is off. B. Sterilise the handpiece. Refer to MAINTENANCE: STERILISING THE HANDPIECE, Pg 31. -
Page 20: Removing The Dosing Chamber Lid
All powder cartridges supplied by Velopex are gamma irradiated. The contents are sterile until opened. Powder cartridges must not be refilled as the cartridges are not reusable. WAIT FOR DECOMPRESSION AquaCare: Installation https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 21: Inserting The Powder Cartridges
Inserting The Powder Cartridges AquaCare: Installation https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 22: Preparing The Aquacare For First Use
Preparing the AquaCare For First Use When training with the AquaCare, powder could cause mess and damage to sensitive equipment if the user is not accustomed to operating the machine. For first use, either work near a sink or lay out a towel on the worksurface. Aim the handpiece nozzle into the inlet of your evacuation unit. -
Page 23: First Steps To Mastering The Aquacare
CUTTING TRAINING WITH GLASS SLIDES These steps show how the AquaCare cuts through tooth enamel. Observing the effects on the slide show the size/shape of the various cutting techniques available. A. Follow steps A and B above. -
Page 24: Suggested Treatment Methods
Dental Assistant to follow the nozzle with the aspirator. The AquaCare operates with low noise, and has no vibration or heat at the cutting tip. Its ability to cut wet or dry gives it a high flexibility of use. -
Page 25: Preparations Before Treatment
PURGING THE AQUACUT, Pg 33. 8. It is recommended that AquaCare Cleaning/Cutting Fluid (AquaSol) should be used in the AquaCare Fluid System. The 500ml bottle supplied with the machine should be discarded when empty and replaced. The fluid can be used with all recommended treatments using this instrument. -
Page 26: Treatments
The most effective way to use fluid abrasion for this procedure is to use the handpiece of the AquaCare as if it were a paintbrush, making light strokes across the surface of the tooth until the surface is clean. With experience, the dentist will be able to work with a high degree of control, the learning curve being similar to that when first using a high speed drill. -
Page 27: Fissure Caries
Media Flow - Slightly under midway position. The AquaCare is of particular use for treating fissure caries. Hold the cutting nozzle about 2mm from the surface of the tooth and direct the particulate beam at the caries. Use it in short bursts, sweeping it along the vein until all the dark caries are removed and the sound tooth structure is revealed. -
Page 28: Cavity Preparation
This is because fluid abrasion is a technique designed to produce a very conservative cut with a working area of less than 2mm diameter. Finally, the surface of the cavity should then be finished using the AquaCare to ensure a suitable key for the bonding agent. -
Page 29: Removal Of Composite Restorations
Media Flow - Slightly above midway position. The AquaCare is very useful for the removal of old composite restorations. Hold the cutting nozzle at an angle of about 45 degrees to the surface of the old composite restoration and about 2mm or 3mm from the surface. -
Page 30: Bonding Orthodontic Brackets
The same technique can be used to clean the orthodontic brackets. Approx. 2 mm away from the surface. AquaCare: Operation https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 31: Sterilising The Handpiece
20 cycles. The handpiece should be replaced when cutting efficiency is impaired. This cleaning and sterilising procedure satisfies UK Health Technical Memorandum 2030 Washers-Disinfectors and UK Health Technical Memorandum 2010 Sterilisation. AquaCare: Maintenance https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... -
Page 32: Handpiece Maintenance
Do not use a Handpiece if the hole in the tip of the nozzle is worn to the outer edge or if the abrasive perforates the swan neck tube. The life expectancy in normal use is approx 6 months. Using the AquaCare at its higher power and media setting will lead to higher wear rates on the handpiece. -
Page 33: Purging The Aquacare
Purging The AquaCare PURGING THE FLUID When replacing the fluid bottle, the machine will need to be purged of any air that may have entered the system. A. Turn the media setting to minimum position. This will prevent unnecessary powder being expelled from the handpiece. -
Page 34: Cleaning The Aquacare
The Dosing Chamber and Dosing Chamber Lid are made of special materials and are repeatedly pressurised. They should be checked for any visible damage whenever the powder is changed. If there is any damage visible, do not use the AquaCare unit until it has been inspected by a Velopex Representative or Authorised Distributor. -
Page 35: Troubleshooting
Troubleshooting If you are having problems with your AquaCare, please follow the steps below before proceeding further as these will often resolve general faults. 1. Ensure that the compressed air supply is at the specified pressure, connected and on. 2. Ensure that the unit is switched on. - Page 36 7. If there are also air bubbles in the fluid tube this can indicate a leaking joint. Look along the tube to see where the air bubbles are appearing to find the source of the leak. Check the joint and replace if necessary. AquaCare: Troubleshooting https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ...
- Page 37 Velopex representative or authorised dealer for a more thorough diagnosis and service of the unit. AquaCare: Troubleshooting https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ...
-
Page 38: Annual Service And Safety Check
Annual service and safety check In order to ensure that the AquaCare continues to function safely and reliably, it is important that you contact your Velopex supplier to book an annual service and safety check every 12 months. If during use there is a problem that could not be rectified after following the troubleshooting checks (as detailed on pages 35-37), then a service will be required to rectify the fault. -
Page 39: Recommended Complimentary Accessories
Recommended Accessories Description Equipment Part No AquaCare Breathing air filter unit (MAA) I/FIT 8200F 6mm Input Air Hose I/ROL 8014F Consumables Sylc Bioactive Powder Cartridges, Pack of 4 I/PDR 0034F Sodium Bicarbonate Cartridges, Pack of 4 I/PDR 8014F 29 micron Aluminium Oxide Cartridges, Pack of 4... -
Page 40: Notes
Notes AquaCare: Service https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ... - Page 41 Notes AquaCare: Service https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ...
- Page 42 Notes AquaCare: Service https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ...
- Page 43 Notes AquaCare: Service https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ...
- Page 44 AS90000 ENGLISH Dental Air Abrasion & Polishing Unit Installation & Operation Maintenance Manual www.velopex.com MEDIVANCE INSTRUMENTS LTD. • Barretts Green Road • Harlesden • London • NW10 7AP AquaCare User Manual Iss. 6 9051184 0120 https://stomdevice.ru - стоматологическое и зуботехническое оборудование с доставкой по России и СНГ...
