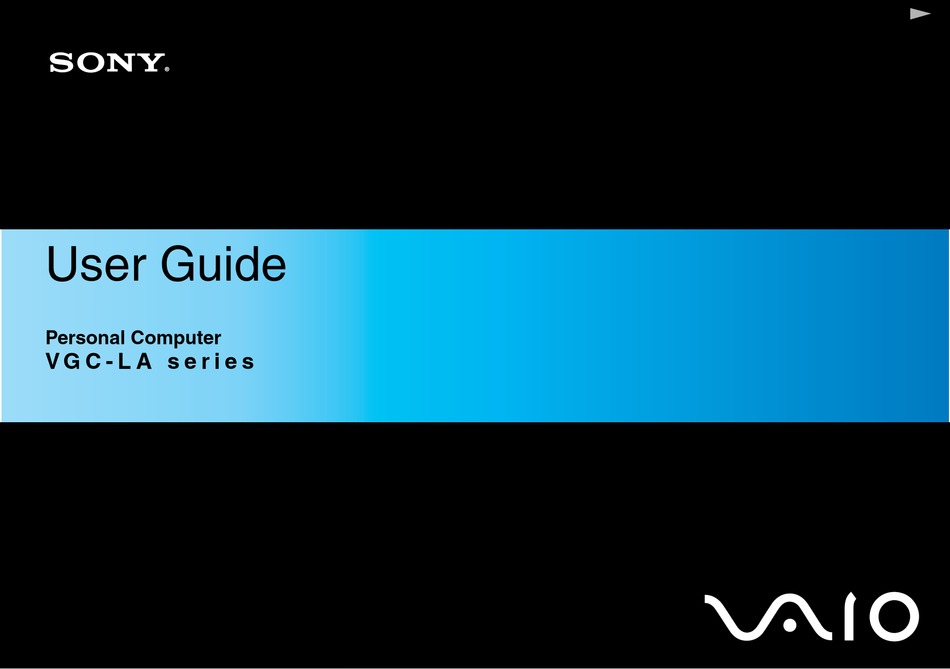

Page 1: User Guide
User Guide Personal Computer V G C - L A s e r i e s...
Page 2: Table Of Contents
Contents Before Use ...5 Notice ...6 Documentation ...7 Ergonomic Considerations ...11 Getting Started ...13 Locating Controls and Ports...14 About the Indicator Lights ...19 Connecting a Power Source ...20 Shutting Down Your Computer Safely ...23 Using Your VAIO Computer ...24 Using the Keyboard ...25 Using the Mouse ...32 Using the Built-in MOTION EYE Camera...37 Using the Optical Disc Drive ...39...
Page 3 Using Peripheral Devices...79 Connecting a Universal Serial Bus (USB) Device...80 Connecting a Printer ...82 Connecting an i.LINK Device ...83 Connecting to a Network (LAN) ...85 Customizing Your VAIO Computer ...86 Setting the Password ...87 Setting Up Your Computer with VAIO Control Center...90 Using the Power Saving Modes ...91 Configuring Your Modem ...94 Upgrading Your VAIO Computer...96...
Page 4 Networking ...126 Optical Discs ...129 Display ...133 Printing ...134 Microphone ...135 Mouse ...136 Speakers ...137 Keyboard...138 Floppy Disks ...139 PC Cards ...140 Audio/Video...142 Memory Stick Media ...143 Peripherals ...144 Support Options ...145 Sony Support Information ...145 e-Support ...146 Trademarks ...148...
Page 5: Before Use
Before Use ® Congratulations on your purchase of this Sony VAIO computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal computing. External views illustrated in this manual may look slightly different from those of your computer.
Page 6: Notice
In the manual, the ™ or ® marks are not specified. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.
Page 7: Documentation
Documentation Your documentation includes printed information and user guides to read on your VAIO computer. Guides are provided in PDF format, which you can easily browse through and print out. The My Club VAIO portal is a perfect starting point to use your computer — a comprehensive collection of everything you need to get the most from your computer.
Page 8: Printed Documentation
Recovery Guide — Contains an explanation of how to make a backup copy of your data and recover your computer system, and solutions to computer malfunctions. Booklets containing the following information: Sony GUARANTEE conditions, Safety / Regulations, Modem Regulations, Wireless LAN Regulations, Bluetooth Regulations, End User Software License Agreement, and Sony Support services.
Page 9 Feeling creative? Click this icon for an overview of your software and check out our upgrade options. Wallpapers Click this icon and check out our most popular Sony and Club VAIO wallpapers. Links Click this icon and check out our most popular Sony and Club VAIO Web sites. Before Use...
Page 10: Windows Help And Support
Windows Help and Support Windows Help and Support is a comprehensive resource for practical advice, tutorials, and demonstrations to help you learn to use your computer. Use the Search feature, Index, or table of contents to view all Windows Help resources, including those that are on the Internet.
Page 11: Ergonomic Considerations
Ergonomic Considerations Whenever possible, you should attempt to take account of the following ergonomic considerations: Stable work surface — Use a stable work surface large enough to support the computer and other peripheral equipment. Position of your computer – Place the display directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, pointing device, or external mouse.
Page 12 Before Use Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.
Page 13: Getting Started
Getting Started This section describes how to get started with using your VAIO computer. Locating Controls and Ports (page 14) About the Indicator Lights (page 19) Connecting a Power Source (page 20) Shutting Down Your Computer Safely (page 23) Getting Started...
Page 14: Locating Controls And Ports
Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages. Front Built-in speakers (stereo) Infrared receiver Point the supplied remote commander to this sensor for operations. Infrared signal indicator (page 19) Built-in microphone (monaural) Built-in MOTION EYE camera (page 37) Power indicator...
Page 15 Back Back panel cover Remove the back panel cover to access the ports and jacks behind it (page 20). Before removing the cover, be sure to shut down your computer. Prop-up stand Grasp the side ends with both hands and raise the bottom end, as shown below, to place your computer upright.
Page 16 Capture angle adjuster (page 38) AUDIO INPUT (L/R) jacks Connect an external device such as a VCR. VIDEO INPUT (S VIDEO/VIDEO) port Connect an external device such as a VCR. VHF/UHF port (page 49) Network (Ethernet) port (page 85) DC IN port (page 20) Cable bundler (page 22)
Page 17 Right Optical disc drive (page 39) Optical disc drive indicator (page 19) Drive eject button (page 41) Getting Started...
Page 18 Left PC Card slot (page 56) PC Card release button (page 58) SD memory card slot (page 70) Headphones jack Connect external headphones or speakers. Line In jack Connect an external audio device for audio input. Microphone jack Connect an external microphone. Universal ExpressCard slot (page 60) Media Access indicator...
Page 19: About The Indicator Lights
About the Indicator Lights Your computer is equipped with the following indicator lights. Indicator Functions Power 1 Illuminates in green when the power of the computer is on, illuminates in orange when the computer is in Sleep mode, and turns off when the computer is off. Media Access Illuminates when data is read from or written to a memory card.
Page 20: Connecting A Power Source
Getting Started Connecting a Power Source You need an AC adapter as a power source for your computer. Before Accessing the DC IN Port You need to remove the back panel cover (1). Simply pull the cover off your computer. Be sure to put the cover back on the computer when you are done.
Page 21: Using The Ac Adapter
Using the AC Adapter Use your computer only with the supplied AC adapter. To use the AC adapter Plug one end of the power cord (1) into the AC adapter (3). Plug the other end of the power cord into an AC outlet (2). Plug the cable attached to the AC adapter (3) into the DC IN port (4) on the computer.
Page 22 Getting Started You can bundle the AC adapter cable along with other cables to keep them tidy. Snap open the cable bundler, route the cables through it, and then snap the cable bundler back shut as shown below: To disconnect your computer completely from AC power, unplug the AC adapter. Make sure that the AC outlet is easily accessible.
Page 23: Shutting Down Your Computer Safely
Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start, the arrow next to the Lock button, and Shut Down. Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off automatically.
Page 24: Using Your Vaio Computer
Using Your VAIO Computer This section describes how to get the most out of using your VAIO computer. Using the Keyboard (page 25) Using the Mouse (page 32) Using the Built-in MOTION EYE Camera Using the Optical Disc Drive (page 39) Using the TV Function (page 49) Using PC Cards...
Page 25: Using The Keyboard
Using Your VAIO Computer Using the Keyboard A wireless keyboard is supplied with your computer. The wireless keyboard uses a standard key arrangement with additional keys that perform specific functions. The VAIO-Link Web site (http://www.vaio-link.com) also contains glossary information to help you use the keyboard.
Page 26: Using The Wireless Keyboard
Using the Wireless Keyboard Illustrated above is the English keyboard as an example. Using Your VAIO Computer Function keys Perform certain tasks. The task associated with each function key varies among software applications except the following combinations with the Fn key. Fn + F5: Decreases lightness intensity of the LCD screen.
Page 27 Standby button Provides for the lower level of power consumption. For details on power management, see Using the Power Saving Modes (page 91). POWER switch Slide the POWER switch to turn on and off the wireless keyboard. Indicators (Battery): turns on while the AA batteries for the wireless keyboard are sufficient and switches to batteries wear out.
Page 28 Using Your VAIO Computer Keyboard feet Flip open to adjust the keyboard angle. CONNECT button Press to enable the wireless keyboard to communicate with the main unit. Battery compartment Storage compartment for the AA batteries.
Page 29 Before you use the keyboard Four AA alkaline batteries are supplied with your computer for use in the wireless keyboard. Before attempting to use the wireless keyboard, you must install the batteries and establish communication between the computer and the keyboard. To maintain good communication, operate the wireless keyboard within the distance limitations of keyboard: 10 m from your computer.
Page 30 To connect the wireless keyboard To connect your wireless keyboard, it must be located within a range of 30 cm to 1 m from the computer. Insert the supplied four AA batteries (1) into the battery compartment (2) on the bottom of the wireless keyboard. Turn on the computer.
Page 31 Using Your VAIO Computer You can check the battery indicator ( ) in the indicator window on the wireless keyboard for its battery power level. If the wireless keyboard does not operate properly, the batteries may need to be replaced. If the wireless keyboard is not being used for an extended period of time, remove the batteries to avoid possible damage from battery leakage.
Page 32: Using The Mouse
Using the Mouse A wireless mouse is supplied with your computer. Using the Wireless Mouse The wireless optical mouse has no cables to plug in and uses a light-emitting diode (LED) instead of a ball. Using Your VAIO Computer Left button Click or double-click the left button to select items.
Page 33 Before you use the mouse Two AA alkaline batteries are supplied with your computer for use in the wireless mouse. Before attempting to use the wireless mouse, you must install the batteries and establish communication between your computer and the mouse. To maintain good communication, operate the wireless mouse within the distance limitations of mouse: 10 m from your computer.
Page 34 To connect the wireless mouse To connect the wireless mouse, it must be located within a range of 30 cm to 1 m from the computer. Insert the supplied two AA batteries into the wireless mouse as shown below. Turn on the computer. Press the CONNECT button (1) on the back of the computer.
Page 35 Using Your VAIO Computer Turn over the mouse, slide the power switch to the ON position, and press the CONNECT button. Communication between the mouse and the computer should now be established. Steps 3 and 4 must be completed within 10 seconds of each other. If the wireless mouse does not operate properly, the batteries may need to be replaced.
Page 36 Adjusting the Mouse Functions Click Start and Control Panel. Click Mouse under Hardware and Sound. The Mouse Properties window appears. Change the settings. Using Your VAIO Computer...
Page 37: Using The Built-In Motion Eye Camera
Using Your VAIO Computer Using the Built-in MOTION EYE Camera Your computer is equipped with a built-in MOTION EYE camera. The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software. Turning on the computer activates the built-in MOTION EYE camera, so the computer is ready for a video conference using such software.
Page 38 Using Your VAIO Computer The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera. You can change the capture angle of the built-in MOTION EYE camera with the capture angle adjuster (1) on the back of your computer. Push down or up the horizontal bar to adjust the angle upward or downward, respectively, until you see the live feed in the desired angle.
Page 39: Using The Optical Disc Drive
Using the Optical Disc Drive Your computer is equipped with an optical disc drive. To insert a disc Be sure to attach the 8cm disc adapter to an 8cm disc before inserting the disc into the optical disc drive slot. Turn on the computer.
Page 40 Using Your VAIO Computer In Sleep mode, inserting a disc will automatically launch Windows and may display a window for selecting your preferred software program to launch or may automatically launch a preinstalled CD/DVD program. If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.
Page 41: To Remove A Disc
To remove a disc The drive eject button is disabled when your computer is turned off. Do not remove the optical disc when your computer is in Sleep mode. Doing so may cause the computer to malfunction. Be sure not to pull out the optical disc forcefully before it completely slides out. Check that the optical disc drive indicator (1) is off.
Page 42 Reading and Writing Optical Discs Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive supports.
Page 43 Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO CD drives with discs that are not compliant with the official "CD"...
Page 44 Using Your VAIO Computer 8cm disc writing is not supported. Except the Blu-ray Disc drive, all other optical disc drives are capable of reading 8cm discs with the supplied 8cm disc adapter. With the supplied 8cm disc adapter, the Blu-ray Disc drive is capable of reading 8cm DVD-R, DVD-RW, DVD+RW, and DVD+R DL discs, but not 8cm CD-ROM and DVD-RAM discs.
Page 45 Using Your VAIO Computer Notes on writing data to a disc Use only Sony Value-added software when writing to CD/DVD media. (e.g. Click to DVD) Other software programs may not be fully compatible and errors may result. To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete this process, follow the instructions included with your software.
Page 46 Notes on playing discs To achieve optimum performance when playing DVDs, you should follow these recommendations. Close all open applications before playing a DVD movie. Some CD players and computer's optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW disc media.
Page 47: Playing Cds
Playing CDs To play an audio CD Insert a disc into the optical disc drive. If nothing appears on the desktop, then click Start, All Programs, and the desired CD software to play the CD. If the Audio CD window appears, click to select an option. Copying Files to CDs To copy files to a disc Do not strike or shake your computer while writing data to a disc.
Page 48: Playing Dvds
Playing DVDs To play a DVD Close all running software applications. Insert a DVD into the optical disc drive. If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to play the DVD. For instructions on how to use the software, see the help file on your DVD software. Copying Files to DVDs To copy files to a disc Insert a disc into the optical disc drive.
Page 49: Using The Tv Function
Using the TV Function Your computer may have a hybrid TV tuner board installed along with the Microsoft Windows Vista Home Premium operating system which includes Windows Media Center that enables you to view, record, and playback TV. The hybrid TV-tuner supports the following broadcasts: Analog cable and terrestrial TV: Systems B/G/I/D/K/L/L' Color systems PAL and SECAM...
Page 50: Using The Remote Commander
Using Your VAIO Computer Using the Remote Commander A remote commander is supplied with your computer for using Media Center features, including TV channel selection.
Page 51 Using Your VAIO Computer Pause X button Press to pause media playback. Press again to resume playback. Stop x button Press to stop media playback or TV recording session. Forward M button Press to fast-forward media at three speeds. Skip B? button Press to move media forward, for example, one audio track, one DVD chapter, and 30 seconds of recorded TV or video.
Page 52 Guide button Press to view the TV program guide for your area. Alphanumeric buttons Press to select specific channels or enter text. (Press ENTER or OK to activate the channel selection.) CLEAR button Press to backspace and delete entered text. Teletext TV program mode buttons Red button Press to jump to the red shortcut link in teletext TV program mode.
Page 53 Before you use the remote commander Before using the remote commander, you need to insert the supplied AA manganese batteries to enable communication between the computer and the remote commander. To insert batteries Turn the remote commander over. Slightly push down the dented area (1), slide the battery cover in the direction of the arrow, and remove the cover. Using Your VAIO Computer...
Page 54 Insert the supplied two AA batteries into the remote commander. Put the battery cover back on the remote commander and slide it in the reverse direction of the arrow illustrated above until the cover clicks into place. If the remote commander does not operate properly, you may need to replace the batteries. When the remote commander has not been used for an extended period of time, remove the batteries to avoid possible damage from battery leakage.
Page 55: Setting Up Windows Media Center
Using Your VAIO Computer Setting up Windows Media Center The first time you launch Windows Media Center, the setup wizard will pop-up. To configure the TV tuner, click Custom setup and follow the on-screen instructions. In the Optional Setup window, click Configure tuners, TV signal, and Guide, and follow the on-screen instructions.
Page 56: Using Pc Cards
Using PC Cards PC Cards allow you to connect portable external devices to your computer. Inserting a PC Card Some PC Cards or their functions may not be compatible with your computer. You do not need to shut down your computer before inserting or removing a PC Card. To insert a PC Card Push the PC Card release button so that the release button pops out.
Page 57 Using Your VAIO Computer Some devices may not function properly if you continually switch to Normal mode from Sleep mode. For some PC Cards, if you alternate between Normal mode and Sleep mode while the card is inserted, you may find that a device connected to your system is not recognized. Restart your system to correct the problem.
Page 58: Removing A Pc Card
Removing a PC Card Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not work properly. To remove a PC Card To remove a PC Card when your computer is off, skip steps 1 to 7. Double-click the Safely Remove Hardware icon on the taskbar.
Page 59: Using The Expresscard Module
Using the ExpressCard Module Your computer is equipped with either a Universal ExpressCard slot digital cameras, camcorders, music players, and other audio/video devices. The former can accommodate either an ™ ExpressCard /34 (34 mm wide) or ExpressCard ™ ExpressCard /34 module only.
Page 60: Inserting An Expresscard Module
Inserting an ExpressCard Module Your computer is delivered with a slot protector in the ExpressCard slot. Remove the slot protector before you use the slot for the first time. Use care when inserting or removing the ExpressCard module from the slot. Do not force it in or out of the slot. You do not need to shut down your computer before inserting or removing the ExpressCard module.
Page 61 Using Your VAIO Computer Insert the ExpressCard slot protector to protect against debris entering the slot when not using an ExpressCard module. Before moving your computer, make sure to insert the ExpressCard slot protector into the slot. If the module or adapter does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction. Make sure you use the most recent software driver provided by the ExpressCard module manufacturer.
Page 62: Removing An Expresscard Module
Removing an ExpressCard Module Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your system may not work properly. To remove an ExpressCard module To remove an ExpressCard module when your computer is off, skip steps 1 to 7. Double-click the Safely Remove Hardware icon on the taskbar.
Page 63: Using The Memory Stick Media
For the latest information about the Memory Stick media, visit the Memory Stick Web site at http://www.memorystick.com/en/. Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 4 GB that are available as of September 2006.
Page 64 Inserting a Memory Stick Media To insert a Memory Stick media Locate the Memory Stick PRO/Duo media slot Hold the Memory Stick media with the arrow pointing toward the Memory Stick PRO/Duo media slot. Carefully slide the Memory Stick media into the slot until it clicks into place. The Memory Stick media is automatically detected by your system and appears in your Computer window as a local drive, under the appropriate letter (depending on the configuration of the computer).
Page 65 Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly. Do not insert more than one Memory Stick media into the slot.
Page 66 To format a Memory Stick media The Memory Stick media has been formatted in the factory default setting and is ready for use. If you want to reformat the media with your computer, follow these steps. Be sure to use the device that is designed to format the media and supports the Memory Stick media when formatting the media. Formatting the Memory Stick media erases the entire data on the media.
Page 67 At the confirmation prompt, click OK. The formatting process starts. It may take time to format the Memory Stick media depending on the media. Once completed, click OK. Click Close. Using Your VAIO Computer...
Page 68 Removing a Memory Stick Media To remove a Memory Stick media Check that the Media Access indicator light is off. Push the Memory Stick media in toward the computer. The Memory Stick media ejects. Pull the Memory Stick media out of the slot. Always remove the Memory Stick media gently, or it may pop out unexpectedly.
Page 69: Using Other Memory Cards
MultiMediaCard (MMC) Secure Digital (SD) For the latest information on compatible memory cards, visit the Sony online support Web site regularly. Always insert the correct memory card into the SD memory card slot. SD memory cards with capacity of over 2 GB, such as SD High Capacity (SDHC) memory cards, are not supported.
Page 70: Inserting A Memory Card
Inserting a Memory Card To insert a memory card Locate the SD memory card slot Hold the memory card with the arrow pointing toward the memory card slot. Carefully slide the memory card into the slot until it clicks into place. Do not force the card into the slot.
Page 71: Removing A Memory Card
Removing a Memory Card Do not remove a memory card while the To remove a memory card Check that the Media Access indicator light is off. Firmly grasp the extended part of the memory card. Carefully pull it out of the slot. indicator light is on.
Page 72: Using The Internet
Using the Internet Setting Up a Dial-up Internet Connection Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (not supplied). Once you have set up your telephone cable connection, you're ready to connect to the Internet. To connect a telephone cable Plug one end of the phone cable (1) into the modem port Plug the other end into the wall jack (2).
Page 73: Using Wireless Lan (Wlan)
Using Wireless LAN (WLAN) Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each other through a network. A WLAN is a network in which a user can connect to a local area network (LAN) through a wireless (radio) connection.
Page 74 Using Your VAIO Computer The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication speed, narrower communication range, or broken wireless connections.
Page 75: Communicating Without An Access Point (Ad-Hoc)
Communicating without an Access Point (Ad-hoc) An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.
Page 76 To communicate without an access point (ad-hoc) Turn on the WLAN switch. The Wireless LAN indicator lights up. Click Start and Control Panel. Click View network status and tasks under Network and Internet. Click Set up a connection or network on the left pane. The Set up a connection or network window appears.
Page 77 An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point (not supplied), for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central controller for the wireless LAN.
Page 78 To connect to a wireless network Make sure an access point is set up. See the manual that came with your access point for more information. Turn on the WLAN switch. The Wireless LAN indicator lights up. Click Start and Control Panel. Click View network status and tasks under Network and Internet.
Page 79: Using Peripheral Devices
Using Peripheral Devices You can add functionality to your VAIO computer by using the various ports on the computer. Connecting a Universal Serial Bus (USB) Device Connecting a Printer (page 82) Connecting an i.LINK Device (page 83) Connecting to a Network (LAN) (page 80) (page 85) Using Peripheral Devices...
Page 80: Connecting A Universal Serial Bus (Usb) Device
Connecting a Universal Serial Bus (USB) Device To prevent your computer and/or USB devices from damage, avoid any shock or force to the USB ports when moving the computer with USB devices connected. Connecting a USB Floppy Disk Drive You can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive Choose the USB port (1) you prefer to use.
Page 81: Disconnecting A Usb Floppy Disk Drive
Disconnecting a USB floppy disk drive You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is in Sleep mode may cause the computer to malfunction. If the computer is off, you can unplug the USB cable directly from the computer. To disconnect a USB floppy disk drive Close all programs accessing the floppy disk drive.
Page 82: Connecting A Printer
Connecting a Printer You can connect a Windows-compatible printer to your computer to print documents. Connecting a Printer Using the USB Port You can connect a USB printer compatible with your version of Windows to the computer. To connect a printer using the USB port Plug the power cord (1) of your printer into an AC outlet.
Page 83: Connecting An I.link Device
Connecting an i.LINK Device Notes on connecting i.LINK devices Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device such as a digital video camcorder or to connect two VAIO computers in order to copy, delete or edit files. The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports.
Page 84: Connecting A Digital Video Camcorder
On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible. The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.
Page 85: Connecting To A Network (Lan)
Connecting to a Network (LAN) You can connect your computer to 100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the network (Ethernet) port on the computer and the other end to your network. For detailed settings and devices needed to connect to the network, ask your network administrator.
Page 86: Customizing Your Vaio Computer
Customizing Your VAIO Computer This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities, etc. Setting the Password...
Page 87: Setting The Password
Setting the Password Use one of the BIOS functions to set the password. Once you have set the password, you will have to enter the password after the VAIO logo appears to start your computer. The power-on password will allow you to protect the computer from unauthorized access. Adding the Power-on Password The power-on password is provided to protect your computer from unauthorized access.
Page 88 To add the power-on password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears. Press the <...
Page 89: Changing/Removing The Power-On Password
Changing/Removing the Power-on Password To change or remove the power-on password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 90: Setting Up Your Computer With Vaio Control Center
Setting Up Your Computer with VAIO Control Center The VAIO Control Center utility allows you to consult system information and specify preferences for system behavior. To use VAIO Control Center Click Start, All Programs, and VAIO Control Center. The VAIO Control Center window appears. Select the desired control item and change the settings.
Page 91: Using The Power Saving Modes
Customizing Your VAIO Computer Using the Power Saving Modes In addition to the normal operating mode, which allows you to turn off specific devices, your computer has a distinct power saving modes called Sleep mode. Using Normal Mode This is the normal state of the computer when it is in use. The green power indicator light is on in this mode. To save power while not working, you can turn off a specific device such as the LCD screen or the hard disk.
Page 92: Using Sleep Mode
Using Sleep Mode Sleep mode turns off the LCD screen and places the hard disk and the CPU into a low power consumption mode. The orange power light is on in this mode. To activate Sleep mode Click Start, the arrow next to the Lock button, and Sleep. Alternatively, you can press the standby button on the wireless keyboard or the remote commander to place your computer into Sleep mode.
Page 93 If the computer is not used for more than 25 minutes, it will enter Sleep mode. To avoid this, you can change the Sleep mode settings. To change the Sleep mode settings Right-click the power status icon on the taskbar and select Power Options. Click Change plan settings under the current power plan.
Page 94: Configuring Your Modem
Configuring Your Modem Before you can start using your internal modem (not all modem are built-in), or each time you use your modem while traveling, make sure that the country of the active location defined in the Phone and Modem Options window matches the country you are dialing from.
Page 95 Check that your modem is listed on the Modems tab. If your modem is not listed, click Add and follow the wizard. 10 Click Apply/OK. Your modem is configured. Before applying new country settings, please make sure your phone cable is disconnected from your computer. Customizing Your VAIO Computer...
Page 96: Upgrading Your Vaio Computer
Upgrading Your VAIO Computer Your VAIO computer and memory modules use high precision components and electronic connectors technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: You contact your dealer to install a new memory module. You do not install it yourself, if you are not familiar with upgrading memory on a computer.
Page 97: Adding And Removing Memory
Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. The number of available slots depends on the configuration of your model.
Page 98 Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from electrostatic discharge. Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your computer will result in damage to the computer and any repair costs will not be covered by the warranty.
Page 99: Removing And Installing A Memory Module
Removing and Installing a Memory Module To change or add a memory module Shut down the computer and turn off all peripheral devices. Remove the back panel cover (1), unplug the computer, and then disconnect all peripheral devices. Wait until the computer cools down. Upgrading Your VAIO Computer...
Page 100 Unscrew the screw (2) and remove the memory module compartment cover (3). Touch a metal object (such as the chassis frame) to discharge static electricity. Remove the memory module: Pull the latches in the direction of the arrows (1). The memory module is released. Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2).
Page 101 Remove the new memory module from its packaging. Slide the memory module into the memory module slot and push it in until it clicks into place. Do not touch any other components on the motherboard. Replace the memory module compartment cover and tighten the screw. 10 Plug the computer, connect all peripheral devices, replace the back panel cover, and then turn on the computer.
Page 102: Viewing The Amount Of Memory
Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, All Programs, and VAIO Control Center. Double-click the System Information folder in the VAIO Control Center window. Double-click the System Information icon in the System Information folder. You can view the amount of system memory.
Page 103: Precautions
Precautions This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage. On Handling the LCD Screen On Using the Power Source (page 105) On Handling Your Computer (page 106) On Using the Built-in MOTION EYE Camera On Handling Floppy Disks (page 108) On Handling Discs...
Page 104: On Handling The Lcd Screen
Precautions On Handling the LCD Screen Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be careful when using your computer near a window. Do not scratch the LCD screen or exert pressure on it. This could cause a malfunction. Using your computer in low temperature conditions may produce a residual image on the LCD screen.
Page 105: On Using The Power Source
Make sure that the AC outlet is easily accessible. When the AC adapter is not used, unplug it from the AC outlet. Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.
Page 106: On Handling Your Computer
On Handling Your Computer Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.
Page 107 Precautions Use only specified peripheral equipment and interface cables; otherwise, problems may occur. Do not use cut or damaged connection cables. If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In this case, allow at least one hour before turning on the computer.
Page 108: On Using The Built-In Motion Eye Camera
On Using the Built-in MOTION EYE Camera Do not touch the front mirror plate over the lens of the built-in MOTION EYE camera, as it may make scratches on the plate and such scratches will appear on the captured images. Do not let the direct sunlight get into the scope of the built-in MOTION EYE camera regardless of your computer's power state, as it may cause a malfunction of the camera.
Page 109: On Handling Discs
Precautions On Handling Discs Do not touch the surface of the disc. Do not drop or bend the disc. Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below: Proper care of the disc is essential to its continuous reliability.
Page 110 Precautions An 8cm disc adapter exclusively designed for your model is provided for use of 8cm discs on your computer. Be sure to attach the adapter to an 8cm disc before using it on your computer. Not using the supplied adapter or using a similar kind of the adapter with the disc may cause a disc recognition error or result in a stuck disc, a damaged disc, or a malfunction of your computer.
Page 111: On Using Headphones
On Using Headphones Preventing hearing damage – Avoid using headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use. On Handling Memory Stick Media Do not use the media in a location subject to static electricity or electrical noise.
Page 112: On Handling The Hard Disk
On Handling the Hard Disk The hard disk has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock, or dust. Although the hard disk has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling your computer.
Page 113: Troubleshooting
Troubleshooting This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems have simple solutions. Try these suggestions before contacting VAIO-Link. Computer (page 114) System Security (page 120) Built-in MOTION EYE Camera Internet (page 124) Networking (page 126)
Page 114: Computer
Condensation may cause your computer to malfunction. If this occurs, do not use the computer for at least one hour. Remove any extra memory modules you may have installed since purchase. Check that you are using the supplied Sony AC adapter. For your safety, use only genuine Sony AC adapter, which is supplied by Sony for your VAIO computer.
Page 115 What should I do if a BIOS error appears when I turn on my computer? If the message "Press <F1> to resume, <F2> to setup" appears at the bottom of your computer screen, follow these steps: Press the F2 key. The BIOS setup screen appears.
Page 116 What should I do if the power indicator (Green) lights but my computer screen stays blank? If the orange MONITOR OFF indicator is on, press the MONITOR OFF button. Otherwise, follow these steps: Press and hold the power button for more than four seconds to check that the power indicator goes out. Then turn on your computer again.
Page 117: Why Doesn't My Computer Enter Sleep Mode
Why doesn't my computer enter Sleep mode? Your computer may become unstable if the operating mode is changed before the computer completely enters Sleep. To restore your computer to normal operating stability Close all open programs. Click Start, the arrow next to the Lock button, and Restart. If your computer does not restart, press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart.
Page 118 What should I do if my game software does not work or it keeps crashing? Check the Web site of the game if there are any patches or updates to download. Make sure you have installed the latest video driver. On some VAIO models, the graphics memory is shared with the system.
Page 119: How Can I Change The Volume Of The Startup Sound
How can I change the volume of the startup sound? To change the startup sound volume Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 120: System Security
System Security This section provides information about keeping your computer operating smoothly and protecting against potential threats to the computer's security. How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against security threats, such as viruses, is to download and install the latest Windows updates regularly.
Page 121: Built-In Motion Eye Camera
Built-in MOTION EYE Camera Why does the viewer window show no images or poor-quality images? The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera. The video memory of your computer may have become insufficient for displaying images from the built-in MOTION EYE camera.
Page 122 Why do the images captured by the built-in MOTION EYE camera flicker? This problem occurs when you use the camera under fluorescent lights due to the mismatch between lighting output frequency and shutter speed. To reduce flicker noise, change the pointing direction of the camera or the brightness of camera images. In some software applications, you can set an appropriate value to one of the camera properties (e.g.
Page 123: Why Can't I Use The Built-In Motion Eye Camera
Why can't I use the built-in MOTION EYE camera? The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera. If the problem persists, you must reinstall the driver software for the camera.
Page 124: Internet
Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone. Make sure the telephone number the program is dialing is correct. Make sure the software you are using is compatible with your computer's modem. (All preinstalled Sony programs are compatible.) Make sure the modem is the only device connected to your telephone line.
Page 125: Why Is My Modem Connection Slow
Why is my modem connection slow? Your computer is equipped with a V.92/ V.90 compatible modem. Many factors may influence modem connection speed, including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider (ISP), do any of the following: Ask your telephone company to verify your telephone line is free of any line noise.
Page 126: Networking
Networking What should I do if my computer cannot connect to a wireless LAN access point? Connection availability is affected by distance and obstructions. You may need to move your computer away from obstructions or closer to any access point you may be using. Make sure the WLAN switch is on and the Wireless LAN indicator is lit on your computer.
Page 127: Why Is The Data Transfer Speed Slow
Why is the data transfer speed slow? The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed, move your computer away from obstructions or closer to any access point you may be using.
Page 128 Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your access point.
Page 129: Optical Discs
Optical Discs Why does my computer freeze when I try to read a disc? The disc that your computer is trying to read may be dirty or damaged. Follow these steps: Restart the computer by clicking Start, the arrow next to the Lock button, and Restart. Eject the disc from the optical disc drive.
Page 130 What should I do if I cannot play a CD or DVD properly on my computer? Make sure the disc is inserted into the optical disc drive with the label side facing toward you. Make sure the necessary program(s) is installed according to the manufacturer's instructions. If a CD or DVD is dirty or damaged, your computer will stop responding.
Page 131 Double-click the desired drive. You can confirm the driver software by selecting the Driver tab, and clicking Driver Details. Click OK to close the window. Make sure an adhesive label is not affixed to a CD or DVD. Adhesive labels can come off while the disc is in the optical disc drive and damage the drive or cause it to malfunction.
Page 132 What should I do if I cannot write data to CD media? Make sure you neither launch any software application nor allow any to launch automatically, not even a screen saver. Stop using the keyboard. If you are using a CD-R/RW disc with an adhesive label affixed, replace it with one with no affixed adhesive label. Using a disc with an affixed adhesive label could cause a write error or other damage.
Page 133: Display
Display Why did my computer screen go blank? Your computer screen may go blank if the computer has entered Sleep mode. If the computer is in Sleep mode, press the power button on the computer or the standby button on the wireless keyboard or the remote commander to activate the computer screen.
Page 134: Printing
Printing What should I do if I cannot print a document? Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and computer. Make sure your printer is compatible with the Windows operating system installed on your computer. You may need to install the printer driver software before you use your printer.
Page 135: Microphone
Microphone What should I do if my microphone does not work? If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the microphone jack on your computer. The muting button on the wireless keyboard may have been pressed. Press the button once again. The volume may have been turned off with one of the volume control buttons on the wireless keyboard.
Page 136: Mouse
Mouse What should I do if my computer does not recognize my mouse? Make sure the power switch on the bottom of the wireless mouse is in the ON position. Make sure another mouse is not connected. Make sure the supplied AA batteries are properly installed. Press the CONNECT button on your computer and then on the wireless mouse within 10 seconds to re-establish the connection between the two devices.
Page 137: Speakers
Speakers What should I do if I cannot hear sound from my speakers? If you are using a program that has its own volume control, make sure the volume control is properly set. See the program's help file for more information. Make sure the speaker volume is turned up loud enough and the audio option is enabled.
Page 138: Keyboard
Keyboard What should I do if the keyboard configuration is wrong? The language layout of the wireless keyboard is labeled on the packaging box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. To change the keyboard configuration, follow these steps: Click Start and Control Panel Click Clock, Language, and Region, and click Regional and Language Options.
Page 139: Floppy Disks
Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does not appear, follow these steps: Close all programs that are accessing the floppy disk drive.
Page 140: Pc Cards
See the manual that came with your PC Card for more information. You may need to install driver software if you are not using a Sony PC Card. If your PC Card, which worked normally before, does not work, you may need to install the most recent driver software.
Page 141 Why doesn't my computer recognize attached devices? For some PC Cards, if you alternate between Normal mode and Sleep mode while the card is inserted into the PC Card slot, your computer may not recognize the PC Card or the connected device. Restart the computer. Why can't I insert my PC Card? Make sure you are inserting the card correctly.
Page 142: Audio/Video
(page 83) i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK connection can communicate with each other.
Page 143: Memory Stick Media
Use of recorded music requires permission from the copyright holders. Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources. Can I copy images from a digital camera using Memory Stick media? Yes, and you can view video clips that you have recorded with Memory Stick media-compatible digital cameras.
Page 144: Peripherals
Peripherals What should I do if I cannot connect a USB device? If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital camera, check the battery is charged. If you are using a printer, check the power cable is connected properly to the AC outlet.
Page 145: Support Options
VAIO-Link help lines: Before contacting VAIO-Link by telephone, try to solve the problem by reading the printed and non- printed documentation. Visit the other Sony Web sites: http://www.club-vaio.com if you want to know more about VAIO and become part of the growing VAIO community.
Page 146: E-Support
Support Options e-Support What is e-Support? You have searched our user guides and Web site (http://www.vaio-link.com) but have not found an answer to your question/ issue? e-Support is the ideal solution for you! Our e-Support Web Portal is an interactive Web site on which you can submit any technical query you may have regarding your computer and receive answers from our dedicated support team.
Page 147 Support Options Can I submit my questions at any time? Yes, you can submit your questions 24/7, but please keep in mind that our e-Support Team can only treat your queries from Monday till Friday between 8am and 6pm. Is there a cost involved for using e-Support? No, this is a complete free of charge service offered to all registered VAIO customers! How do I know when the e-Support Team has handled my query/case? As soon as your case has been dealt with by our e-Support Team, you will receive an email, notifying you that your case has...
Page 148: Trademarks
Macromedia and Flash are trademarks of Macromedia, Inc. The ExpressCard word mark and logos are owned by the PCMCIA and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
Page 149 Support Options ™ MultiMediaCard is a trademark of MultiMediaCard Association. All other names of systems, products and services are trademarks of their respective owners. In the manual, the ™ or ® marks are not specified. Specifications are subject to change without notice. All other trademarks are trademarks of their respective owners. Please see the online Specifications to see what software is available for your model.

This manual is also suitable for:

Vgc-la2 Vgc-la series

Sony VGC-LA2R User Manual

Quick Links

User Guide

Need help?

Questions and answers

Related Manuals for Sony VGC-LA2R

Summary of Contents for Sony VGC-LA2R

This manual is also suitable for:

Table of Contents
