Summary of Contents for Pierenkemper BioBalance
- Page 1 Item no. 462214 Operating Manual Item no. 451600-0423...
-
Page 2: Table Of Contents
BioBalance Waveform ........................9 Power Mode ..........................10 Charging the Battery / Battery Operation.................. 10 Operation on Mains Circuit......................10 Operating the BioBalance ......................11 Switching the Device ON ......................11 Connecting the Applicators ....................... 11 Home Menu Navigation ......................11 Selecting a Program ........................ -
Page 3: Intended Use
Please read the operating instructions carefully before using the BioBalance. To ensure safe use of the BioBalance: • Do not use the BioBalance if it is not working properly or if it has been damaged in any way. • The USB connector serves exclusively for software updates. Do not connect any device or cord other than a USB flash drive with software update to the USB connector of the BioBalance device. -
Page 4: Technical Information
Technical Information Description of the symbols Manufacturer Attention: Read accompanying documents, especially user manual! Class III device Date of manufacture Catalogue number Serial number Do not dispose of the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to protect the environment. -
Page 5: Technical Data
Technical Data Operating voltage External mains adapter SNT 15-2000 100-240 VAC / 50 - 60 Hz / 700 mA Max. current consumption on 110 VAC ca. 49 mA Max. current consumption on 230 VAC ca. 34 mA Internal lithium-ion battery 10.8 V / 2200 mAh Charging time Output... -
Page 6: Delivery Content
451600-0423 Operating manual Accessories The BioBalance may only be used together with the accessories referred to in this chapter. The manufacturer cannot guarantee the safety of the BioBalance if it is not used with original accessories. Mains Adapter and Cables Item no. -

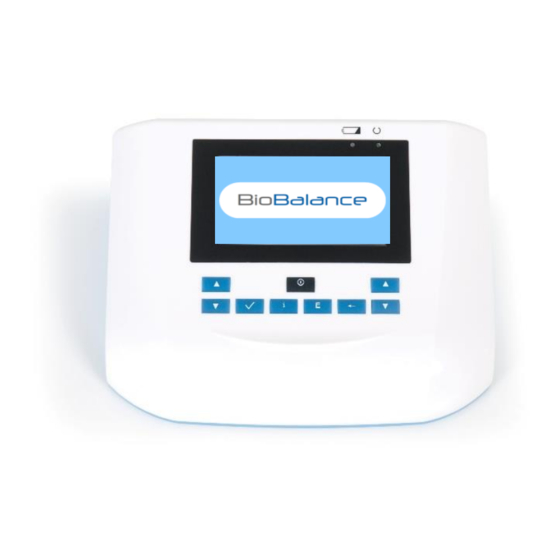

Page 7: Control Unit Functions (Front Panel)
Control Unit Functions (Front Panel) LED light for charging mode. LED light for main circuit mode ON/OFF Key Key to select menu and Key to increase intensity increase time setting Key to decrease intensity Key to select menu and decrease time setting Back Key Confirmation Key Start/Pause Key... -
Page 8: Control Unit Functions (Rear Panel)
Control Unit Functions (Rear Panel) Indicates operating Socket for Applicator sockets mode mains adapter Switch (only has USB socket function when mains (for software updates only) adapter is plugged in) Indicates charging mode *The switch from battery operation to mains operation is automatic if the mains adapter is connected. -
Page 9: Biobalance Waveform
BioBalance Waveform The BioBalance signal is made up of two separate waveforms: the Basic Signal and the User Signal. The Basic Signal is present in 3 of the 6 programs and cannot be adjusted. The User Signal varies from program to program and is what the user selects. User Signal frequencies change based on the chosen program. -
Page 10: Power Mode
Charging the Battery / Battery Operation If you wish to use the BioBalance on battery, you first need to charge it. Connect the mains adapter to the socket at the rear side of the device. Turn the power switch to the position “charging battery”... -
Page 11: Operating The Biobalance
Connecting the magnetic field applicators Connect the cable of the desired magnetic field applicator to the correct socket on the rear panel of the BioBalance. Either of the two sockets may be used for either of the two applicators. The symbol appears in the top right corner of the display when an applicator is connected. -
Page 12: Selecting A Program
Selecting a Program Select the option “Programs” with the left keys in the “Home” menu. Confirm your choice with the key. A list of programs is proposed. Press the key to return to the “Home Menu”. Use the keys on the left until you select the desired program. Confirm your selection by pressing the key. -
Page 13: Starting/Pausing/Stopping A Program
Starting a Program Once you have selected the desired program and adjusted the treatment time and intensity level accordingly, press the key to start the stimulation. You will hear one single beep. Animation Treatment time counts down While the program is running, you will see an animation on the display screen. The treatment time clock will count backwards. -
Page 14: Other Menu Options
Other Menu Options “Settings” Menu Navigation keys on the left until you select the “Settings” menu. Use the Confirm your selection by pressing the key. Use the keys on the left until you select the desired option. Confirm your selection by pressing the key. -
Page 15: Setting The Language
Important note! Do not connect any other device than a USB flash drive to the USB connector of the BioBalance device. Do not try to charge an external appliance with the USB connector. The battery of the BioBalance cannot be recharged via the USB connector. -
Page 16: Biobalance Programs
BioBalance Programs Each of the 6 BioBalance programs will default to a certain time and intensity level. Most of these can be adjusted manually. Some of the programs contain both the basic signal and the user signal, and some only contain the user signal. -
Page 17: General Information
General Information Adjustments, Modifications and Repairs The manufacturer is only responsible for the safety and performance of the BioBalance when readjustments, alterations and repairs are carried out by authorized persons and when the BioBalance is used in accordance with the operating instructions. -
Page 18: Warranty And Guarantee
For wearing parts and consumable supplies including any battery, cables and electrodes. Maintenance and Cleaning No special cleaning or care agents are required for the BioBalance. Clean the stimulator, the cables and the mains adapter with a soft, lint-free cloth. Please ensure that no moisture permeates the stimulator. - Page 19 Manufacturer: Pierenkemper GmbH Am Geiersberg 6 35630 Ehringshausen Deutschland www.pierenkemper.eu Operating manual REF 41600-0423: Version 20161020...
