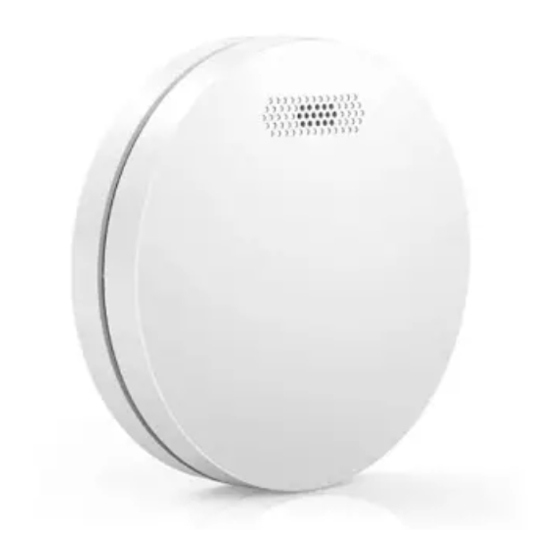

Thank you for purchasing our wireless interlinked smoke
alarm device. Please read this manual carefully to ensure
proper use and store it in a safe place for future reference.
Product Specifications
Power: DC 2*1.5V AA Alkaline or Carbon Zinc battery
Battery Package: Alkaline (LR6、MN1500) or Carbon Zinc
battery (R6P)
Operation Current: <30uA (standby); <70mA (alarm)
Alarm Volume: >85 dB(A) at 3 meters
Alarm Sensitivity: 0.09 - 0.17 dB/m
Low Battery: 2.6 ± 0.1 V
Silence Time: approx. 10 minutes
Frequency : 433.92MHz or 868MHz （Customized）
Working distance : Up to 100m (Outdoor open)
Interlinked devices: : Max 30pcs per group
Source/Master smoke alarm sound pattern: BI 0.5s - pause 0.5s
– BI 0.5s – pause 0.5s – BI 0.5s – pause 1.5s, with the red LED
flash, repeat this alarm pattern.
Slave smoke alarm sound pattern: BI 0.1s - pause 0.1s with the
red LED flash and sound, repeat this alarm pattern.
Comply to Standard EN14604:2005/AC:2008
Quick Reference Guide
SM11R/02-2021/V01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CPVan SM11R
Summary of Contents for CPVan SM11R
- Page 1 INTERLINKED SMOKE DETECTOR Quick Reference Guide SM11R/02-2021/V01 Thank you for purchasing our wireless interlinked smoke alarm device. Please read this manual carefully to ensure proper use and store it in a safe place for future reference. Product Specifications Power: DC 2*1.5V AA Alkaline or Carbon Zinc battery Battery Package: Alkaline (LR6、MN1500) or Carbon Zinc...
- Page 2 Packing List 1 × Photoelectric smoke alarm 1 × Mounting bracket 1 × Screw Kit 1 × User manual Installation Instructions Where to install 1. At first you should install an alarm in the bedroom and walkway. If there are several bedrooms in the house, please install an alarm in every bedroom.
- Page 3 room or other dead-air spaces. Mounting Alarms 1. Twist off the mounting bracket from the alarm. 2. Put the bracket on the installation position and mark the screw holes on the ceiling or the wall. 3. Drill two mounting holes in the marked place by an electric drill (The diameter of the drill hole is 5mm) and insert two plastic anchor plugs by hammer.
- Page 4 5. Fault status: the alarm will deliver beeps every 40 seconds. Silence Mode During the unit is alarming, you can push the test button, it will be paused the unit alarming for approx 10 minutes. The red LED will flash once every 8 seconds, it indicates the smoke alarm device is running into the silence mode.The silence feature is to be used only when a known alarm condition, such as smoke from cooking activates the...
- Page 5 When other alarm devices received alarm signal, they will goes into Slave smoke alarm sound pattern, until the Source/Master alarm device stopped alarm; During the unit is alarming, you can find out the Source/Master smoke alarm , press the Test/Silence button to pause all other interconnected alarms.
- Page 6 showers, etc. Warranty Information Purchase each new smoke alarm device to be free from defects in material and workmanship under normal use and service for a period of 2 years from the date of purchase. During the specified warranty period, we will repair or replace, at its discretion any defective Smoke Alarms that are returned to the retailer.
Need help?
Do you have a question about the SM11R and is the answer not in the manual?
Questions and answers
my alarm beeps once intermittantly but can be every minute or soo then stops for a few hours
If the CPVan SM11R alarm beeps once every 60 seconds, it indicates that the battery is low.
