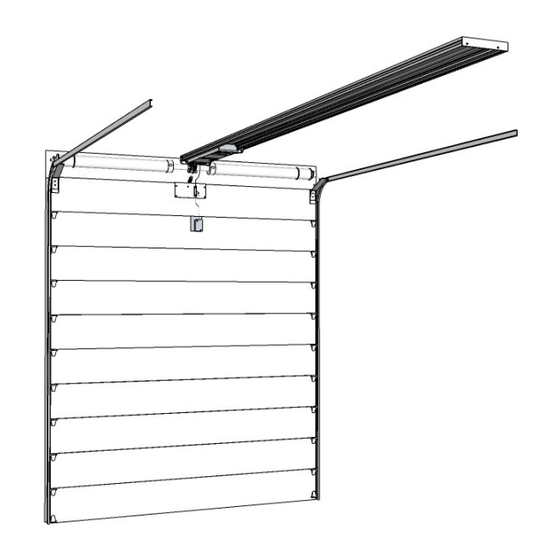

Summary of Contents for Actuall DoorLIFT DL-6
- Page 1 Owner’s Manual KEEP THIS OWNER’S MANUAL IN VEHICLE Need help? For assistance with this product please visit www.actuall.eu or contact your dealer. Version 01-2020...
- Page 2 DoorLIFT DL-6 Owner’s manual Remote door system Index Unit information Safety guidelines Service book Control devices How does the remote control work Programming remote control Inspection and maintenance shutter door Inspection and maintenance DoorLIFT Removal motor unit How to lock the gears...
-
Page 3: Safety Guidelines
DoorLIFT DL-6 Owner’s manual Remote door system 2. Safety guidelines Warning Safety guidelines For problem-free operation of the DoorLIFT, the lorry’s shutter door must always be kept in good condition. Before using the DoorLIFT: Check if all the shutter doors components are firmly in place. - Page 4 DoorLIFT DL-6 Owner’s manual Remote door system 3. Service Book Type of service Date Notes Type of service Date Notes Type of service Date Notes...
- Page 5 DoorLIFT DL-6 Owner’s manual Remote door system Type of service Date Notes Type of service Date Notes Type of service Date Notes...
- Page 6 DoorLIFT DL-6 Owner’s manual Remote door system Type of service Date Notes Type of service Date Notes Type of service Date Notes...
- Page 7 DoorLIFT DL-6 Owner’s manual Remote door system Make a copy of this page first, this is the last blank sheet Type of service Date Notes Type of service Date Notes Type of service Date Notes...
-
Page 8: Item Description
DoorLIFT DL-6 Owner’s manual Remote door system 4. Control devices Your DoorLIFT system may be supplied with two wireless key FOB transmitters. Any other external device like switches are provided by the fitter or customer. Item Description Function Remote control... - Page 9 DoorLIFT DL-6 Owner’s manual Remote door system 4.1 How does the remote control work When a command is given, the LED’s will indicate the signal was received. - LED 2 on the control box will momentarily flash orange, as an input signal is received either from a FOB or a switch.
- Page 10 DoorLIFT DL-6 Owner’s manual Remote door system 5. Inspection and maintenance shutter door Maintain the shutter door every 3 months: Lubrication shutter door Balancer maintenance and adjustment Check if all the shutter doors components are firmly in place. 1. Lubricate the roller bearings and shafts, hinge pins and cable drum bearings as per the illustration below.
-
Page 11: Additional Info
DoorLIFT DL-6 Owner’s manual Remote door system 2. Check to make sure the shutter door is properly balanced. ALWAYS lubricate your shutter door, prior to checking the balance of the door. The DoorLIFT will operate the shutter door provided a force of no more than 35Kg to open or close the door. - Page 12 DoorLIFT DL-6 Owner’s manual Remote door system 6. Inspection and maintenance DoorLIFT Pre-conditions: • Maintenance should be performed by qualified (trained) staff. • Maintenance of the DoorLIFT should always be done in conjunction with maintenance of the shutter door. •...
- Page 13 DoorLIFT DL-6 Owner’s manual Remote door system Maintenance activities Six months Yearly Check the operation by opening and closing the system with the door attached Check the balancing of the door with the DoorLIFT discon- nected Ensure that all parts are properly tightened. Damaged, loose...
- Page 14 DoorLIFT DL-6 Owner’s manual Remote door system 7. Removal motor unit 1. Use a screw driver and insert this in the lever, located in the motor unit. Move the lever towards the shutter door. Your are now able to open and close the door by hand.
- Page 15 DoorLIFT DL-6 Owner’s manual Remote door system 5. Remove the cover from the track. 4. Remove the cable from the cable tube in the motor-unit. 6. Cut the zip tie retaining the yellow 7. Slide the motor-unit out of the cable to the slider cover.
- Page 16 DoorLIFT DL-6 Owner’s manual Remote door system 8. How to lock the gears “click” Using a screw driver, insert the tip in the lever located in the motor-unit. Move the lever towards the Battery icon until you hear a firm “click” meaning the gears are meshed with the linear track gears.
- Page 17 DoorLIFT DL-6 Owner’s manual Remote door system 9. How to adjust the sensors The sensor switch for the CLOSED position is set at the factory, but may need ad- justment depending on the header size and turnbuckle length. Note: to gain acces to the Close switch, the track trim can be slid on the track to gain access.
- Page 18 DoorLIFT DL-6 Owner’s manual Remote door system 10. Emergency release You may be occasionally required to release the DoorLIFT from the door, in order to operate the shutter door manually. DoorLIFT can be released from the drive system in the following way:...
- Page 19 DoorLIFT DL-6 Owner’s manual Remote door system 11. Basic trouble shooting When your system isn't working properly or not at all, pleas check the following: 1. Check for visible damage or obstruction 2. Try if a different control device is working 3.
- Page 20 DoorLIFT DL-6 Owner’s manual Remote door system 12. Changing DL-8002152 Tooth wheel (24) Take off the tooth Take off the circlip wheel Place the new tooth Return the circlip wheel For all other repairs, please contact your dealer for support. Do not try to repair...
- Page 21 DoorLIFT DL-6 Owner’s manual Remote door system...
- Page 22 DoorLIFT DL-6 Owner’s manual Remote door system 13. Technical Specifications Description Value System Two DC Bipolar Motors Material Aluminum, Steel and plastic (RoHS free) Shutter height (max.) 2700 mm Strength (max.) 35 Kg Total weight 25 Kg Speed 185mm/s End switches...
-
Page 23: Dimension Description
Total height system 61,5* * Minimun distance between the roof and the door is 45mm The DoorLIFT DL-6 system is fastened to the roof of the cargo area and is centered with respect to the centerline of the door. The aluminium profile weighs approximately 21Kg and... - Page 24 Actuall Innomotive International BV www.actuall.eu...
