DH Cargo Bed Assembly Instructions

CARGO BED
FULL BED ASSEMBLY INSTRUCTIONS
CAUTION: At least two adults are required to safely complete performing this task.
Other lifting attempts may risk back injury due to large and heavy part/s.

PARTS

1
Headboard
Headboard ( Parton) (Partion of the)
A B
x 1pc x 1pc

HARDWARE

M4 x 50mm M8 x 25mm
A B
x x
8pcs 4pcs
Allen Key M4 M8 x 60mm
F G
x x
1pc 4pcs
ADULT ASSEMBLY REQUIRED
If you are missing any parts or have any questions regarding assembly, do not return this item to the retailers store.
Please call our toll free customer service number and have this assembly manual open to the parts list ready to
provide the model name, and part name or number.
1-877-864-5752
8:30 AM PST - 4:30 PM PST - Monday - Friday
www.dwellhom.com
parts@dwellhom.com
WARNING: This Product contains Small Components - Please ensure they are kept away from small children.
Footboard Side Rail
2 3
x 1pc
Washer Washer Spring Washer
C C D E
x x x
12pcs 12pcs 12pcs
Slats Leg
4 4
x 2pcs
x 12pcs x 4pcs
Allen Key M5
x
1pc
Electrical Plug
IMPORTANT
Please ensure underside of furniture unit is wiped clean with cloth before placing to
the desired location. Avoid dragging furniture on carpets to prevent possible staining.
End Cap
4
x 24pcs

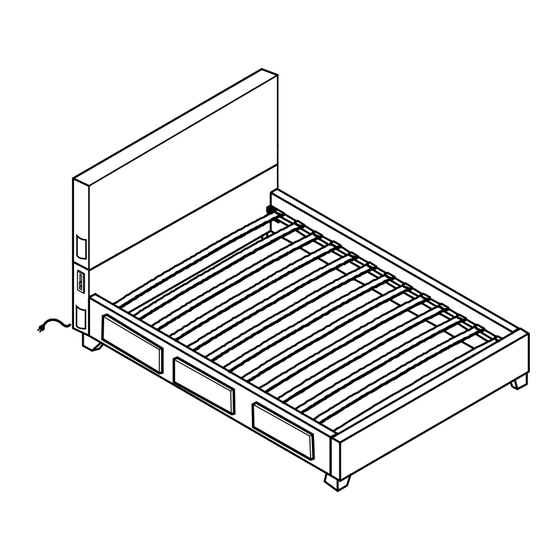

A complete assembled view of
a Conventional Bed
Page 1 of 3
