ADS ECHO Startup Manual

IMPORTANT - Read entire document and watch all associated videos before installing the ECHO
START-UP GUIDE
Make sure you have all the supplies and read all the materials before you begin.
Early steps must be completed BEFORE you attempt to install your ADS ECHO
SUPPLIES CHECKLIST!
These supplies come in the box with the basic
ECHO kit. (Different supplies may be included
ECHO
based on the kit you ordered.)

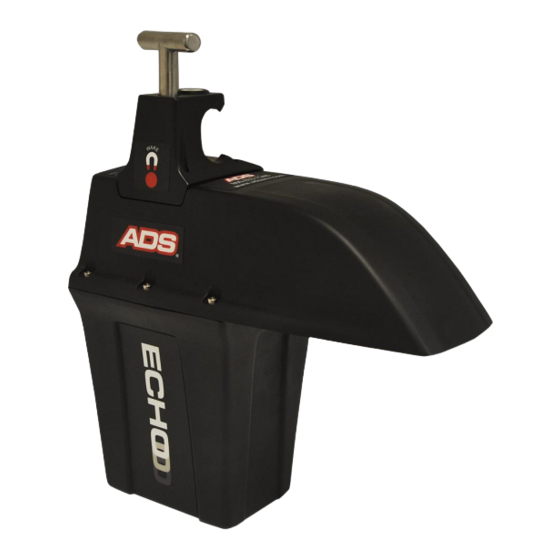

F ECHO monitor
(Sim Card Pre-installed)
F Hex key (P/N 509063)
F ECHO Quick Installation
Guide (included in box)
Additional general supplies to acquire
before field installation.
F J-hook
F Grade pole
F Carpenter's rule or tape measure
F Rubber splicing tape
DOWNLOADABLE MATERIALS
Download Software from www.adsenv.com/software-downloads
F Download ADS Qstart
F Download bluetooth driver
Documentation for Installation
ECHO Start-up Guide" to share this document with co-workers.
 "ECHO
ECHO Quick Installation Guide" to refer to while completing the ECHO field installation.
 "ECHO
 "ADS ECHO ECHO Qstart
 (optional) "ADS ECHO
regarding installation, Intrinsically Safe (IS) certifications and maintenance restrictions.
All digital ECHO
Visit www.adsenv.com/ECHO for quick access to all things ECHO in one place. The ECHO
webpage houses all ECHO specific literature, documents, guides, FAQS, and videos.
software
XML
Quick Reference Guide" to configure and activate the ECHO with Qstart
XML
ECHO Installation, Operation, and Maintenance Manual" for detailed information
ECHO Guide Materials on One Convenient webpage
TM
Additional supplies to acquire from ADS before
setup and installation. Available for purchase on
the ADS storefront.
F ADS Blue "set-up/activation/reset"
magnet (P/N 8000-0460)
F Mounting bar (P/N 9000-0070)
or wall mount (P/N 8000-0484)
F ADS bluetooth dongle
(P/N 9000-0061)
F Antenna
(with 12ft (3.66m) cable P/N 9000-094)
(with 3ft (0.91m) cable P/N 9000-096)
Now Proceed to the Steps on page 2 
ECHO!
ECHO in the field.
.
