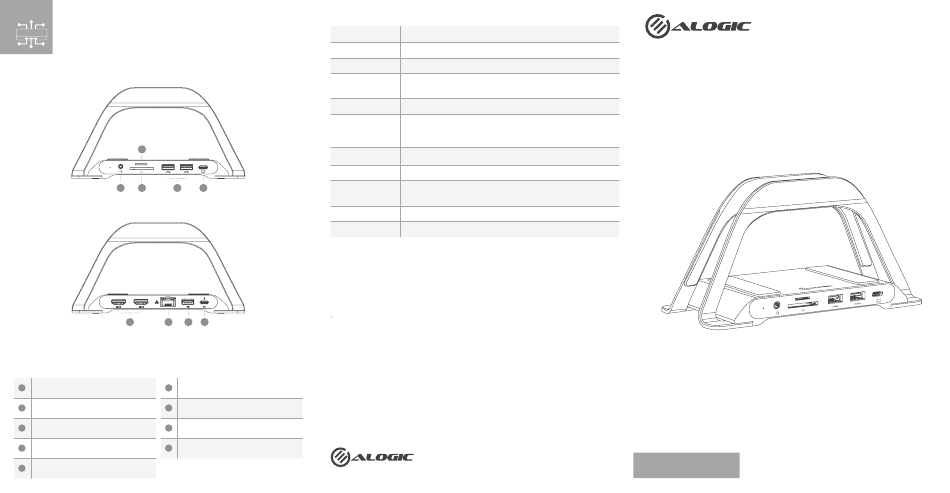

Alogic Bolt Plus Quick Start Manual

2
1 3 4
6 7 8
3.5mm Audio Jack HDMI 4K
1 6
2 Micro SD Slot (TF Card) 7 Gigabit Ethernet Port
3 SD Card Slot 8 USB-A (USB 2.0)
4 USB-A (USB 3.1 Gen 1) 9 USB-C
5 USB-C (Connect to computer, Max 100W)
Specifications
Model
Dimensions
Weight
Output
Input
Power
Resolution
Audio Support
5
Compatibility
Compliance
Warranty
Package Contents
USB Docking Station
USB-C to USB-C Cable 0.8m
User Manual
Warning
This device is designed for indoors use onlyand to be kept dry.
9
• Do not deliberately damage the device or expose it to damp, direct sunlight, or high temperature conditions.
• Disassembling or failing to properly use and care for your device will void the warranty on the product.
• ALOGIC bears no responsibility for damage to the device or incidental damages arising from improper use or
lack of care and is not liable for repair/replacement of the device or other damages in these circumstances.
• Do not expose the pen and battery to high temperature. Overheating the battery may cause it to explode
• If the battery leaks, do not make contact with skin or eyes. If accidental contact is made, please rinse with clean
water immediately and seek proper medical treatment.
• This pen and its accessories include small parts. Please keep them away from small children
Designed in Australia. Manufactured in China
ALDHDLR
190 x 90 x 26.5mm (H x D x W)
328g
1 x USB-C, 2 x HDMI 4K , 2 x USB-A (USB 3.1 Gen 1) , 1 x USB-A (USB 2.0) ,
1 x Gigabit Ethernet Port , 1 x Micro SD Slot (TF Card), 1 x SD Card Slot,
1 x 3.5mm Audio Jack
1 x USB-C (Connect to computer, Max 100W)
Supports up to 100W Power Delivery via USB-C Power Delivery Port*
*Power adapter not included
#ALOGIC recommends to use 100W GaN Charger (WCGX100-XX), to be purchased
separtately
HDMI Single Monitor 4K UHD 60Hz
HDMI Dual Monitor 4K UHD 60Hz
Analogue audio line/microphone in/out
Compatiable with all windows laptop computer† (Windows 7 and above) & macOS**
** Single Extended/ Dual Mirrored Display supported on macOS
† Dual Display (Extended/ Mirrored) only supported on Windows and ChromeOS
FCC, CE, RoHS
2 Years
Bolt Plus
10-in-1 USB-C Docking Station with Stand
WITH 100W POWER DELIVERY
Quick Start Guide
