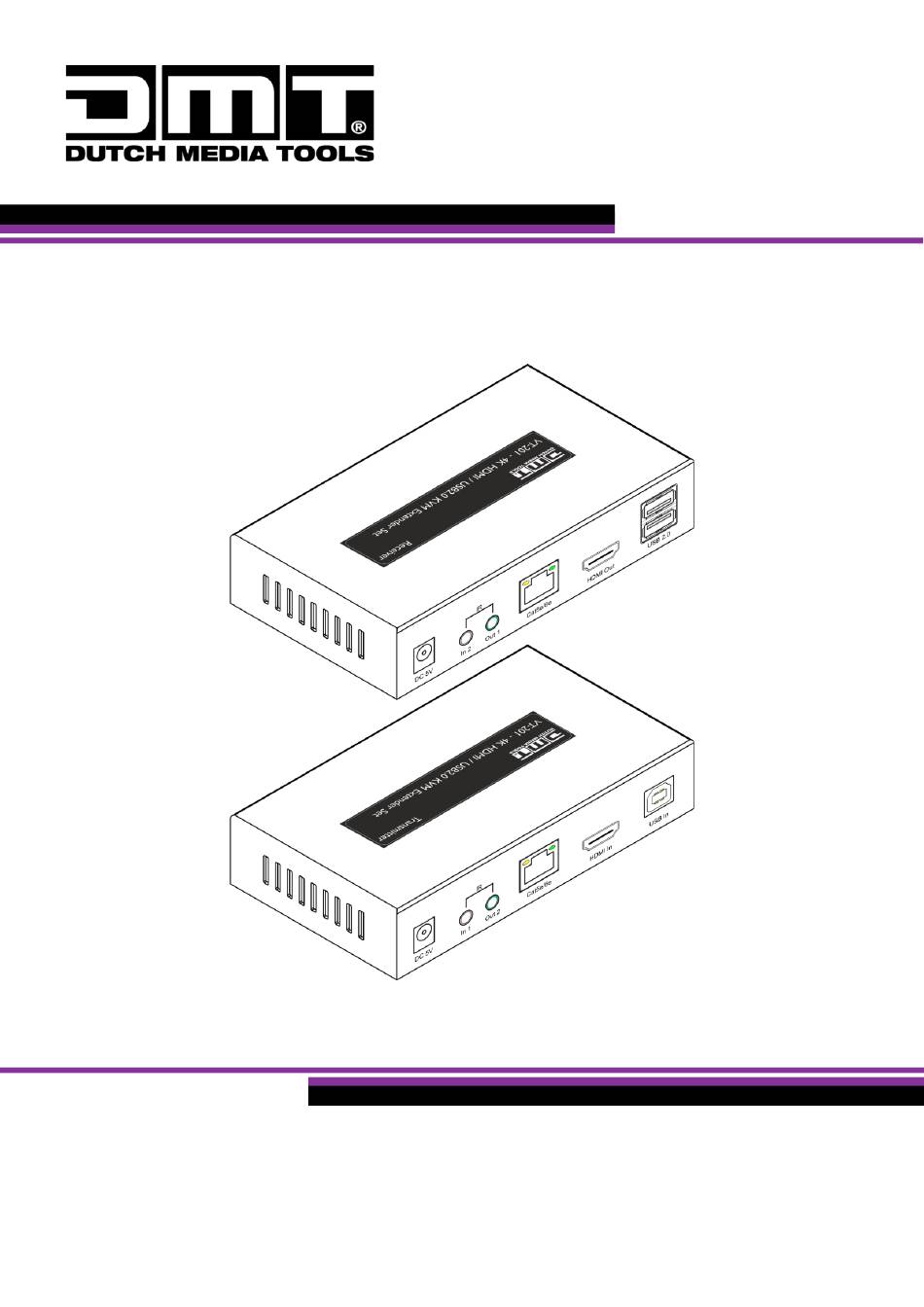

- Page 1 USER MANUAL ENGLISH VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Product code: 101241 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Preface Thank you for purchasing this DMT product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Product Lifespan ..............................4 Text Conventions ..............................4 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Introduction Before Using the Product Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. -
Page 5: Product Lifespan
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Product Lifespan This device is not designed for permanent operation. Disconnect the device from the electrical power supply when the device is not in operation. This will reduce the wear and will improve the device’s lifespan. -
Page 6: Safety
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. -
Page 7: Requirements For The User
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Attention General safety ● Do not insert objects into the air vents. ● Do not switch the device on and off in short intervals. This decreases the device’s life. ● Do not shake the device. Avoid brute force when installing or operating the device. -
Page 8: Description Of The Device
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Description of the Device The DMT VT201 - 4K-KVM / USB Extender Set enables sending HDMI, USB and Infrared signals over long distances. It consists of a signal sender and receiver unit that can communicate through a network cable (not included). -
Page 9: Front View Receiver
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Front View Receiver Fig. 04 09) USB LED 10) HDMI LED Back View Receiver Fig. 05 DC5V In 2: Jack connector for Infrared sensor for remote control Out 1: Jack connector for Infrared sensor for remote control... -
Page 10: Product Specifications
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Product Specifications Model: VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Electrical Transmitter: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 3,5 W Power supply 5V DC / 2A... -
Page 11: Dimensions
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Dimensions Fig. 06 Fig. 07 Product code: 101241... -
Page 12: Installation
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Installation Installation Site Requirements The device must be installed only indoors. The device can be positioned on a flat surface. The maximum ambient temperature t = 40 °C must never be exceeded. -
Page 13: Setup
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Setup Example Fig. 08 Product code: 101241... -
Page 14: Operation
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as an HDMI matrix switch. It is suitable only for indoor installation. -
Page 15: Troubleshooting
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Troubleshooting This troubleshooting guide contains actions which can be carried out by the user. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 16: Maintenance
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Maintenance Safety Instructions for Maintenance Maintenance and cleaning shall be carried out only by instructed persons. Follow the maintenance schedule established for the site where the electrical enclosure is installed. Disconnect power supply before servicing or cleaning. -
Page 17: Deinstallation, Transportation And Storage
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Deinstallation, Transportation and Storage ● Disconnect power supply before deinstallation. ● Use the original packaging to transport the device, if possible. ● Always observe the handling instructions printed on the outer carton box, for example: “Handle with care”, “This side up”, “Fragile”. -
Page 18: Disposal
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Disposal Correct disposal of this product Disposal of Old Electrical and Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. -
Page 19: Approval
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX) Approval Check the respective product page on the website of Highlite International (www.highlite.com) for an available declaration of conformity. Product code: 101241... - Page 20 ©2021 DMT...
