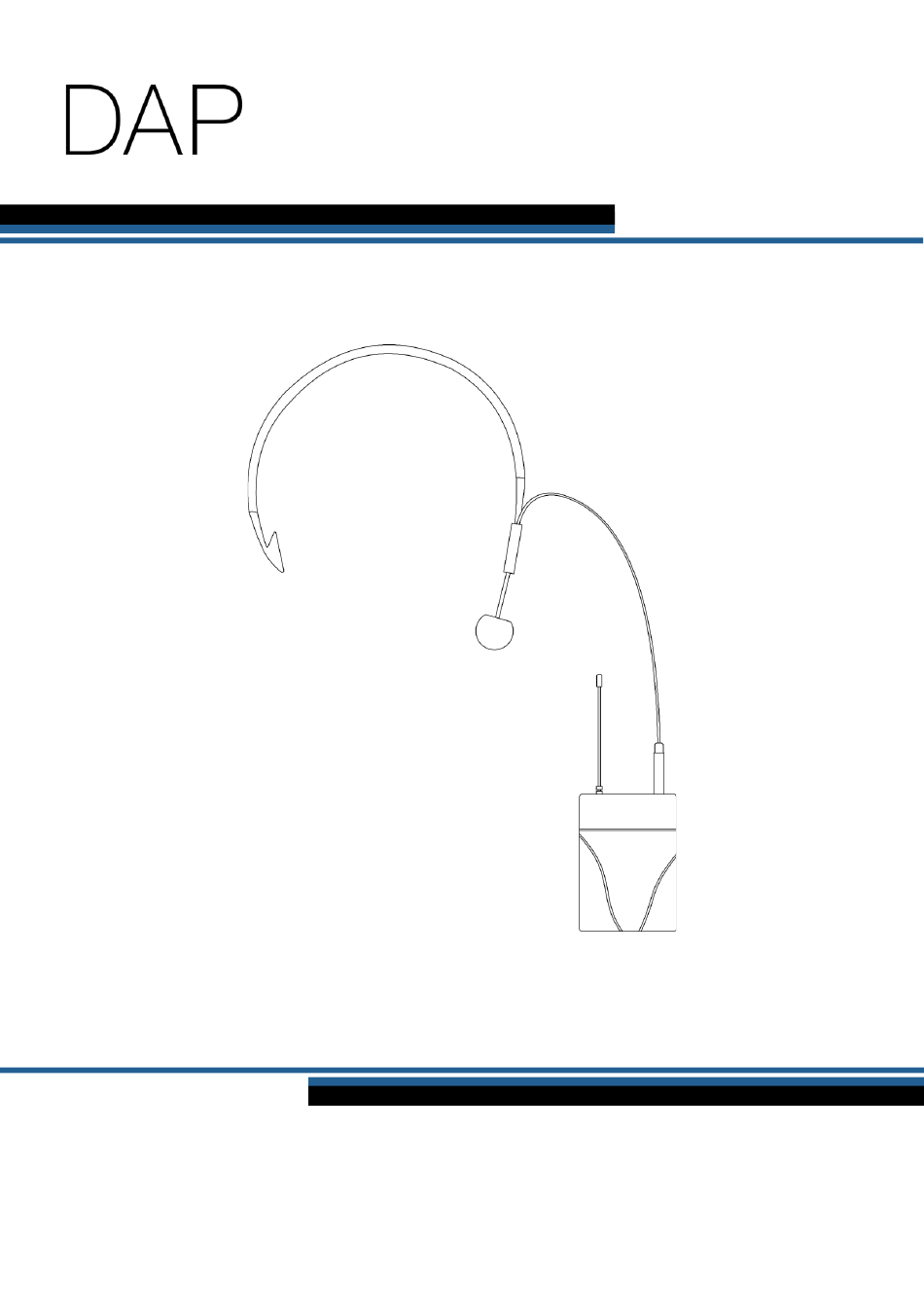

- Page 1 USER MANUAL ENGLISH BP-10 Beltpack for PSS- Product code: D2620 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 BP-10 Beltpack for PSS-110 Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
BP-10 Beltpack for PSS-110 Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Product Lifespan ..............................3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● DAP BP-10 Beltpack for PSS-110 ● Headset + microphone (cable length: 1,3 m) ● User manual Fig. -
Page 5: Symbols And Signal Words
BP-10 Beltpack for PSS-110 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
BP-10 Beltpack for PSS-110 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... -
Page 7: Requirements For The User
BP-10 Beltpack for PSS-110 Requirements for the User This product may be used by ordinary persons. Maintenance and installation may be carried by ordinary persons. Service shall be carried out only by instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 8: Description Of The Device
BP-10 Beltpack for PSS-110 Description of the Device The DAP BP-10 is a bodypack wireless transmitter that can be used with the PSS-110 speaker (D2611), condenser microphones or musical instruments. The set consists of a beltpack and a headset with a microphone. -
Page 9: Headset
BP-10 Beltpack for PSS-110 Headset Fig. 03 11) Microphone 12) 4-pin connector OUT Product Specifications Model: DAP BP-10 Beltpack for PSS-110 Features: Frequency response: 615–638 MHz Beltpack: Connections: 4-pin headset connector IN Carrier frequency band: Oscillation mode: FM(F3E) Frequency stability: ±0,005 %... -
Page 10: Optional Accessories
BP-10 Beltpack for PSS-110 Optional Accessories You can additionally purchase the following accessories: Product code: D1428 (Aerobic Arm bag) Product code: D1429 (Aerobic Belt bag) Product code: 98040 (Duracell industrial AA battery) Product code: D2611 (PSS-110 MKIII) Dimensions Fig. 04... -
Page 11: Installation
BP-10 Beltpack for PSS-110 Installation Ambient Conditions ● The device can be used indoors and outdoors (only if the ambient conditions do not exceed the conditions described in 2.1. Warnings and Safety Instructions on page 5). ● The maximum ambient temperature t = 40 °C must never be exceeded. -
Page 12: Setup And Operation
BP-10 Beltpack for PSS-110 Setup and Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for use as a bodypack wireless transmitter. It is suitable for indoor and outdoor use (only if the ambient conditions do not exceed the conditions described in 2.1. -
Page 13: Connecting To The Receiver
BP-10 Beltpack for PSS-110 Connecting to the Receiver Before use, pair the device and the PSS-110. You need to do this for the system to work properly. To pair the device with the PSS-110: Switch the PSS-110 on. On the PSS-110, choose the desired channel/frequency. Refer to the user manual of the PSS-110 for more information. -
Page 14: Adjusting The Input Gain
BP-10 Beltpack for PSS-110 Adjusting the Input Gain To adjust the input gain: Press on the sides of the device to open the battery compartment cover (02) (Fig. 09). Use the supplied mini screwdriver (04) to adjust the input gain (Fig. 10). -
Page 15: Setup Example
BP-10 Beltpack for PSS-110 Setup Example Fig. 11 Product code: D2620... -
Page 16: Start-Up
BP-10 Beltpack for PSS-110 Start-up To operate the device: Connect the headset, microphone or an instrument to the 4-pin connector IN (08). Switch the PSS-110 on. Refer to the user manual of the PSS-110 for more information. Switch the device on. See 5.1. Switching On/Off/Mute on page 11 for more information. -
Page 17: Maintenance
BP-10 Beltpack for PSS-110 Maintenance Preventive Maintenance Attention Before use, examine the device visually for any defects. Basic Cleaning Instructions To clean the device, follow the steps below: Switch the device off. Clean the device with a soft, lint-free cloth. -
Page 18: Disposal
The full text of the EU declaration of conformity is available at the respective product page on the website of Highlite International (www.highlite.com). The DAP BP-10 Beltpack for PSS-110 is a Class 2 wireless audio device (Commission Decision 2000/299/EC). Frequency: 615–638 MHz Exclusion of liability The frequency ranges available for radio transmitters differ per country and region. - Page 19 BP-10 Beltpack for PSS-110 Product code: D2620...
