Coram Showers 760 Quick Start Manual

Shower enclosure

Advertisement

Quick Links

SHOWER ENCLOSURE
Please read these instructions carefully and keep for future reference.
SAFETY
● Handle glass with great care. Although the glass is very tough, sharp impacts can damage both the glass
and metal frame.
● Make sure there are no hidden pipes or cables hidden in the wall where you intend to drill.
● Wear safety goggles, shoes and appropriate clothing.
BEFORE INSTALLATION
● Two people are needed to carry out parts of the procedure, lift with care.
● Check that the shower tray is level in all directions. The enclosure will not sit correctly on an uneven surface.
If uneven, the wall channels may not fit and the doors may not shut correctly.
● The shower tray and the enclosure must match in size. Attempting to fit the incorrect size of enclosure to the
shower tray will result in water leaks.
● The enclosure should be fitted on tiled walls which are sealed with waterproof grout.
There must be a good silicone seal between the rim of the shower tray and the wall.
● Always check very carefully that components are vertical.
● To avoid damage, use the opened out packaging to build the enclosure on.
Equipment needed:
Drill, 6.5mm Masonry Bit, 4.5mm & 3mm Metal Bits (general), Crosshead Screwdriver, Right Angle, Fine Tooth Saw,
Spirit Level, Pencil, Scissors, Silicone Sealant, Tape Measure, Masking Tape.
Note: The screws and wall plugs supplied are for masonry walls. For lightweight walls i.e. stud partition, plasterboard etc,
use the correct type of fixings.
CUSTOMER CARELINE 01746 713410
CORNER ENTRY
Incorrect fitting will invalidate the guarantee.
GB 71812 00 / Issue 3 / 15

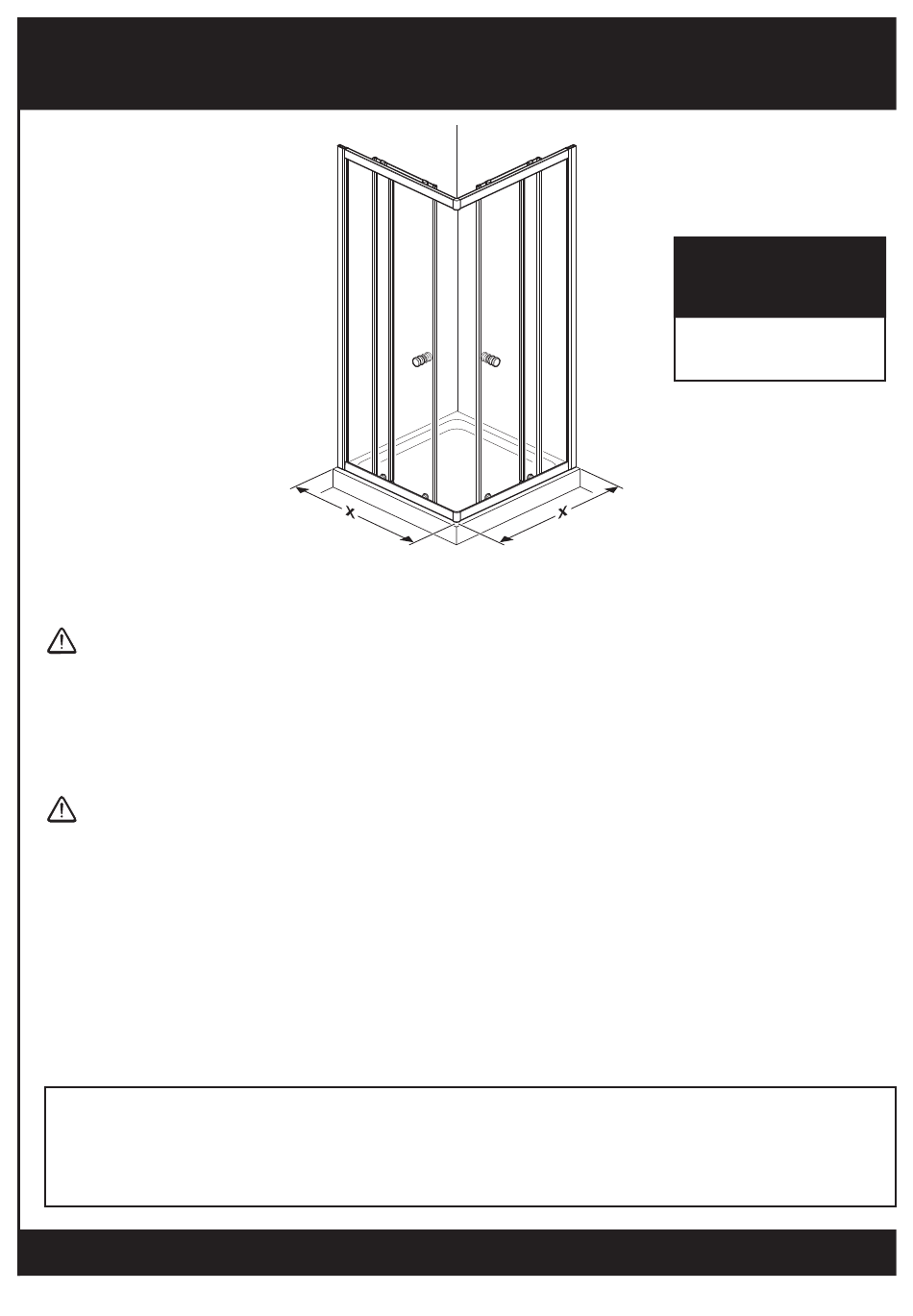

DIMENSIONS
Check the enclosure size in
the table below matches the
showertray installation.
760 Door X = 740 - 760mm
800 Door X = 780 - 800mm

Advertisement

loading
Need help?

Need help?

Do you have a question about the 760 and is the answer not in the manual?

Questions and answers

Summary of Contents for Coram Showers 760

  • Page 1 Check the enclosure size in the table below matches the showertray installation. 760 Door X = 740 - 760mm 800 Door X = 780 - 800mm Please read these instructions carefully and keep for future reference. Incorrect fitting will invalidate the guarantee.
  • Page 2 Check contents of pack before installation. If anything is 760 RAIL - PN11154 760 RAIL - PN11156 missing, contact our Customer Careline for assistance. 800 RAIL - PN11155 800 RAIL - PN11157 CUSTOMER CARELINE: 01746 713410 PN3230 PN60517 PN3225 wheels...
  • Page 3 PN40333 a: Trim four horizontal fixed panel seals (PN40333) to length: 760 Model = 268mm - 800 Model = 288mm. b: Fit trimmed seals to top and bottom of both fixed panels. Important: Seal 'flipper' must be on inside of panel.
  • Page 4 Inside Inside Inside Inside Inside of fixed panel 32mm Inside Hole PN50489 10mm PN50488 Attach horizontal rails to top and bottom of both fixed a: Important: Carefully open a gap between the fixed panel panels using 2 x 32mm screws. and the bottom rail and apply sealant to the front and edge of the glass up to the 'flipper seals' as shown.
  • Page 5 12mm PN40095 Trim to 1717mm Inside Inside ø 3 10mm Ensure sides are vertical. Select the vertical seals with the 12mm flipper (PN40095) and trim to 1717mm. Drill inside wall channels using 3mm drill bit where shown. Do not drill too deep. Fix using 10mm screws Fit trimmed seals to both fixed panels, seals must sit tight against and screw caps.
  • Page 6 PN60517 PN60517 PN60517 IMPORTANT Ensure that the coated PN60517 side of the glass is on the inside of the door. Bottom 'plunger wheels' are shown as an example. PN60518 Inside face PN60518 of door PN60518 PN60518 PN60518 Important: Ensure that the coated side of the glass is on the inside of the door. Attach the wheels to the doors: Adjuster wheels (PN60517) at the top and plunger wheels (PN60518) at the bottom.
  • Page 7 Top of doors From inside Bottom of doors From inside the enclosure, position the top wheels into the top rail, push down the 'plungers' on both bottom wheels and position into the bottom rails. Adjust from outside Magnetic seals From inside Door adjustment: The wheels at the top of the doors may need adjusting so that the doors slide freely and the magnetic seals meet evenly when the doors are closed.
  • Page 8 Please note: There has been a glass coating applied to this product, use a squeegee to remove water and debris. Periodically check all fixings and tighten if necessary. CORAM SHOWERS LTD Stanmore Industrial Estate, Bridgnorth, Shropshire WV15 5HP, UK • Tel: 01746 766466 • Fax: 01746 764140 • www.coram.co.uk...
