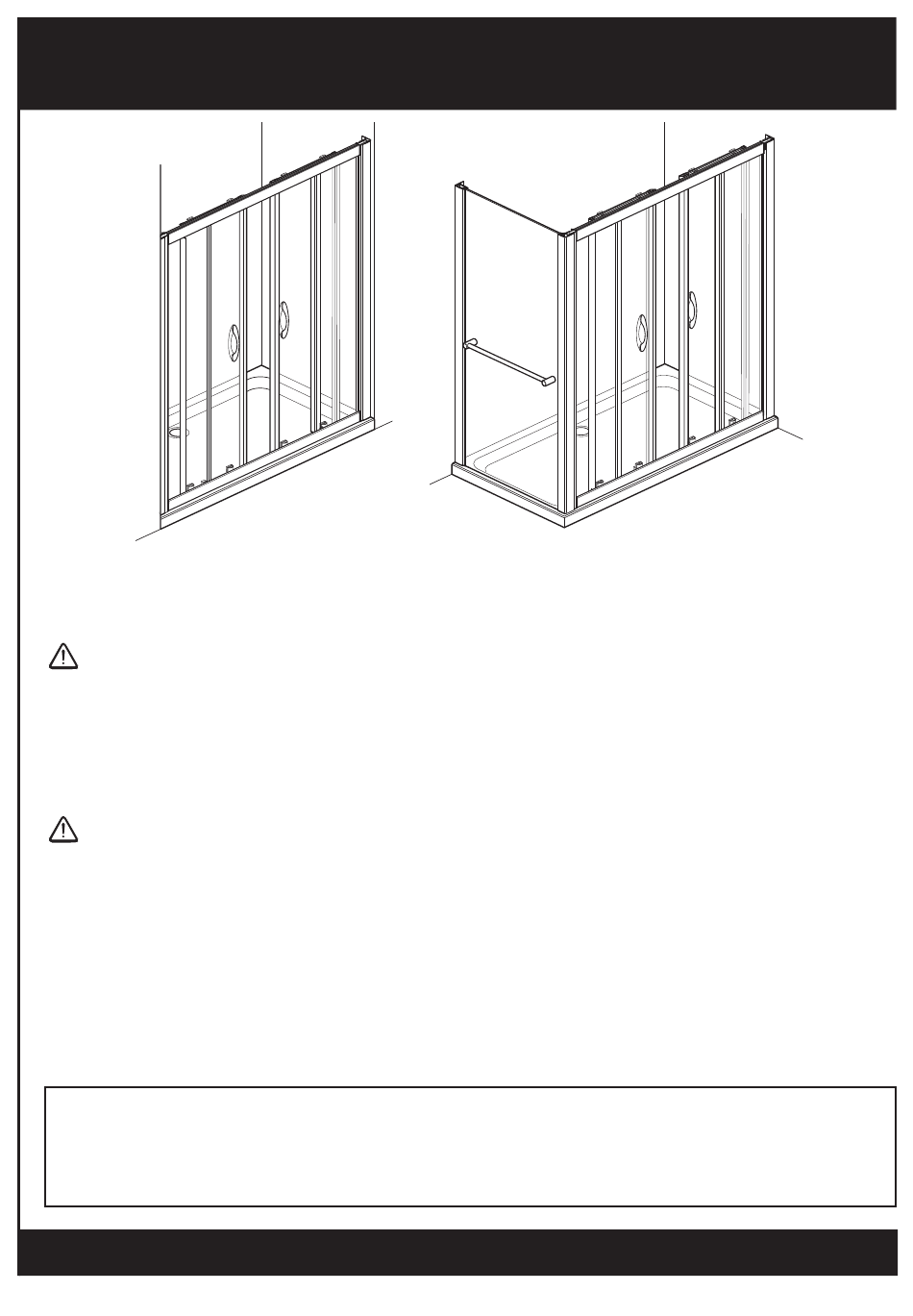

PREMIER DOUBLE SLIDING DOOR

Sliding Door - Pages 2 - 8

Please read these instructions carefully and keep for future reference.

SAFETY

● Handle glass with great care.

Although the glass is very tough, sharp impacts can damage both the glass and metal frame.

● Make sure there are no hidden pipes or cables hidden in the wall where you intend to drill.

● Wear safety goggles, shoes and appropriate clothing.

BEFORE INSTALLATION

● Check that the shower tray is level in all directions. The enclosure will not sit correctly on an uneven surface.

If uneven, the wall channels may not fit and the doors may not shut correctly.

● The enclosure should be fitted on tiled walls which are sealed with waterproof grout.

● There must be a good silicone seal between the rim of the shower tray and the wall.

● The shower tray and the enclosure must match in size. Attempting to fit the incorrect size of enclosure to

the shower tray will result in water leaks.

● Always check very carefully that components are vertical.

● To avoid damage, use the opened out packaging to build the enclosure on.

Equipment needed:

Drill, 6.5mm Masonry Bit, 4.5mm & 3mm Metal Bits (general), Crosshead Screwdriver, 16mm Spanner, Spirit Level, Pencil,

Tape Measure, Masking Tape, Silicone Sealant.

Note: The screws and wall plugs supplied are for masonry walls. For lightweight walls i.e. stud partition, plasterboard etc,

use the correct type of fixings.

CUSTOMER CARELINE 01746 713410

/ SIDE PANEL

Sliding Door & Side Panel - Pages 9 - 16

Incorrect fitting will invalidate the guarantee.

71683 00 / Issue 1 / 13

Need help?

Do you have a question about the PREMIER and is the answer not in the manual?

Questions and answers

Summary of Contents for Coram Showers PREMIER

Page 1 71683 00 / Issue 1 / 13 PREMIER DOUBLE SLIDING DOOR / SIDE PANEL Sliding Door - Pages 2 - 8 Sliding Door & Side Panel - Pages 9 - 16 Please read these instructions carefully and keep for future reference.
Page 2 PN11029 Check contents of pack before installation. If anything is 1500 RAIL - PN80599 1700 RAIL - PN80600 missing, contact our Customer Careline for assistance. CUSTOMER CARELINE: 01746 713410 PN3230 PN60220 PN11031 1500 = PN3225 PN40272 1700 = PN11029 32mm PN40273 PN60014 13mm...
Page 3 X = Door widths 1500 = 1450 - 1500mm 1700 = 1650 - 1700mm ø 6.5 Inside 32mm a: Place the wall channels on the tray ensuring they are vertical and an equal distance back from the front of the tray. Place masking tape against the wall before marking drill hole positions, this will help prevent the drill bit slipping.
Page 4 Outside face of fixed panel Outside face of fixed panel Outside face of fixed panels Fixed panel bracket Push fit the 'short flipper seals' onto the top and bottom Position the fixed panels into the wall channels and slide edges of the fixed panels - flush against the metal profile. down so they fully slot onto the end mouldings of the Ensure the flipper seal 'flaps' are on the inside of the bottom rail.
Page 5 ø 3 From inside 10mm Check the door frame is vertical and is centrally positioned between the wall channels. From inside the enclosure, in the positions shown, drill through the wall channels into the fixed panels using a 3mm drill bit, do not drill too deep! Fix using 6 x 10mm screws.
Page 6 From inside Plunger It is advised that this stage is carried out by two people to avoid damaging the runners, rails or doors. a: From inside the enclosure, hang the top 'door rollers' onto the top rail 'runner'. b: From outside (with the door closed) depress both 'plungers' on the bottom 'door rollers' and position under the bottom rail 'runner' and release the 'plungers'.
Page 7 Fit the door handles to the doors with the allen bolts Inside on the inside of the doors. Ensure the rubber washers are placed between the handles and the glass. Do not over tighten. PN4745 a: Check that the doors hit the top and bottom bumpers at the same time. b: To adjust the bumpers, loosen the screw, move the 'rubber' bumper as required then re-tighten.
Page 8 Please note: There has been a glass coating applied to this product, use a squeegee to remove water and debris. Periodically check all fixings and tighten if necessary. CORAM SHOWERS LTD Stanmore Industrial Estate, Bridgnorth, Shropshire WV15 5HP, UK • Tel: 01746 766466 • Fax: 01746 764140 • www.coram.co.uk...
Page 9 PN11031 1500 RAIL - PN80599 Check contents of packs before installation. If anything is 1700 RAIL - PN80600 missing, contact our Customer Careline: 01746 713410 PN11031 SLIDING DOOR CONTENTS PN11032 PN3230 PN60220 PN11030 1500 = PN3225 PN40272 1700 = 32mm PN40273 PN60014 13mm...
Page 10 Inside ø 6.5 32mm X = Door widths Y = Side Panel widths 1500 = 1450 - 1500mm 700 = 670 - 695mm 1700 = 1650 - 1700mm 760 = 735 - 760mm 800 = 775 - 800mm 900 = 875 - 900mm a: Place the wall channels on the tray ensuring they are vertical and an equal distance back from the front of the tray.
Page 11 ø 3 Inside side panel 10mm Check the side panel and corner post are vertical and that the side panel is centrally positioned between the corner post and wall channel. From inside the enclosure, in the positions shown, drill through the corner post and wall channel into the side panel using a 3mm drill bit, do not drill too deep! Fix using 6 x 10mm screws.
Page 12 Outside face of fixed panel Outside face of fixed panel Outside face of fixed panels Fixed panel bracket Push fit the 'short flipper seals' onto the top and bottom Position the fixed panels into the corner post and wall edges of the fixed panels - flush against the metal profile. channel and slide down so they fully slot onto the end Ensure the flipper seal 'flaps' are on the inside of the mouldings of the bottom rail.
Page 13 ø 3 From inside 10mm Check the door frame is vertical and is centrally positioned between the wall channel and corner post. From inside the enclosure, in the positions shown, drill through the wall channel and corner post into the fixed panel and magnetic profile using a 3mm drill bit, do not drill too deep! Fix using 6 x 10mm screws.
Page 14 From inside Plunger It is advised that this stage is carried out by two people to avoid damaging the runners, rails or doors. a: From inside the enclosure, hang the top 'door rollers' onto the top rail 'runner'. b: From outside (with the door closed) depress both 'plungers' on the bottom 'door rollers' and position under the bottom rail 'runner' and release the 'plungers'.
Page 15 Fit the door handles to the doors with the allen bolts on the inside of the doors. Ensure the rubber washers are placed between the Inside handles and the glass. Do not over tighten. Outside of side panel a: Assemble the towel rail brackets onto the ends of the towel rail and tighten using the supplied allen key. b: Attach the towel rail to the side panel ensuring the supplied towel rail washers are used on each side of the glass.
Page 16 Please note: There has been a glass coating applied to this product, use a squeegee to remove water and debris. Periodically check all fixings and tighten if necessary. CORAM SHOWERS LTD Stanmore Industrial Estate, Bridgnorth, Shropshire WV15 5HP, UK • Tel: 01746 766466 • Fax: 01746 764140 • www.coram.co.uk...
