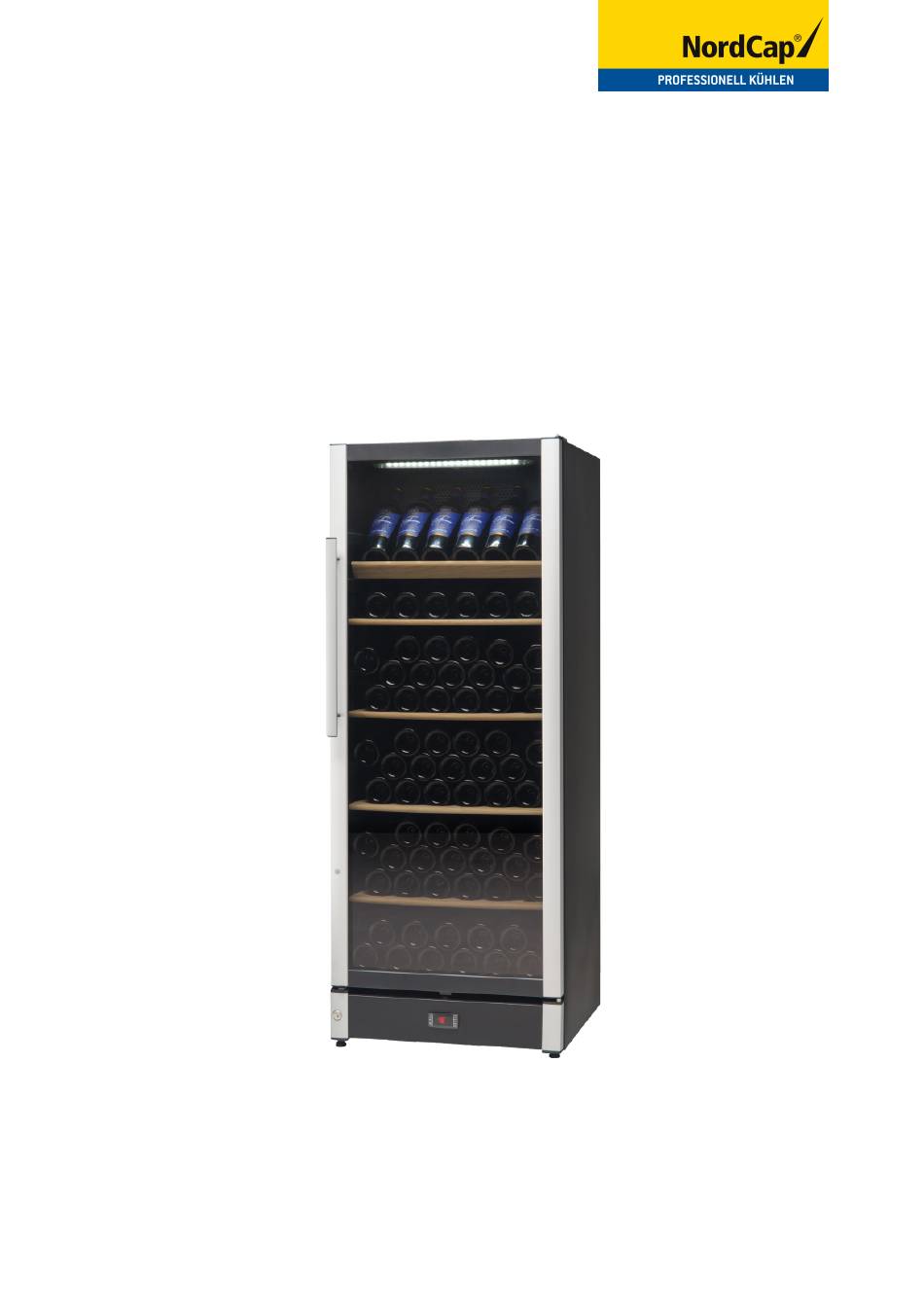

  • Page 1 Service Manual Wine Cabinet W 155 [Art. 477800155] 2022-01...

  • Page 2: Attention

    ATTENTION! Before servicing or cleaning the appliance, unplug the ap- pliance from the mains or dis- connect the electrical power supply. ATTENTION! This service manual is intend- ed for use by persons hav- ing electrical and mechanical training and a level of knowl- edge of these subjects gener- ally considered acceptable in the appliance repair trade.

  • Page 3: Table Of Contents

    Contents Attention ............2 Contents ............3 Installation ............4 Sensors and frost protection thermostat..6 Access to lock and control panel ....7 Charcoal filter ..........8 Operation and function ........9 Defrost and cleaning........11 Access to Evaporator and heating element .. 12 Access LED light ..........

  • Page 4: Installation

    Installation The surface on which the appliance is to be placed must be level. Do not use a frame or similar. The appliance can be installed as a free- standing unit against a wall, built into a kitchen element, or lined up with other ap- pliances (figs 2-3).
  • Page 5 Ventilation The distance pieces on the rear of the ap- pliance ensure sufficient air circulation. Fit It is important that the appliance be well the two caps supplied with the appliance as ventilated and that air can circulate unhin- shown in fig. 7. dered above, below and around it.

  • Page 6: Sensors And Frost Protection Thermostat

    Sensors and frost protection thermostat 1. The frost protection thermostat is located 2. For access dismount the 2 screws. The in a box in the compressor compartment. sensor has to be released before pulling out. Continue inside the cabinet. Dismount 2 screws Lead-in from engine room.

  • Page 7: Access To Lock And Control Panel

    Access to lock and control panel 1. Dismantle cover for access to the lock. 2. (a) Dismantle the lock pin before removing the lock, (b)Slide shoe is replaceable. a & b must be moved when reversing the door. 3. Dismantle 2 screws. 4.

  • Page 8: Charcoal Filter

    7. Pull connector to dismantle. 8. Push to release brackets for controller. Charcoal filter 1. Pull out the charcoal filter for replace- ment.

  • Page 9: Operation And Function

    Operation and function Electronic control a built-in filter which simulates the actual temperature in the bottles. Consequently, The electronic control ensures that the the indicator does not react on short-term temperatures set at the top and at the bot- fluctuations of the air temperature tom of the appliance are maintained.
  • Page 10 Temperature setting at the bot- Light tom of the appliance To turn off the lights, press once Push SET2. Then the temperature at the Permanent lighting bottom of the appliance can be adjusted up For presentation purposes of your wine, you and down by means of the “up and down”...

  • Page 11: Defrost And Cleaning

    Defrosting, cleaning Single-zone setting for long- Automatic defrosting. term storage The wine cooler is defrosted automatically. Defrost water runs through a pipe and is For long-term wine storage, the top and bot- collected in a tray above the compressor tom sections should both be set at 12°C. where the heat generated by the compres- With identical settings for the top and bot- sor causes it to evaporate.

  • Page 12: Access To Evaporator And Heating Element

    Access to evaporator and heating element 1. Evaporator is located behind the distribu- tion plate for air. 2. Press out the 5 clips (Holder for evapora- tor)
  • Page 13 4..and 2 screws at the top. 3. Dismantle 2 screws at the bottom ... 5. Dismantle the cables above the heating 6. Dismantle 2 screws element.
  • Page 14 7. Rear of heating element. 8. Dismantle the 5 evaporator clips. Press 9. Placement of 5 evaporator clips. to release...

  • Page 15: Access Led Light

    Access LED light 1. Dismantle 2 screws and the Light screen 2. Dismantle 1 screw for access to wires with Led assembly can be removed. and connectors. 3. Press to separate the connectors...

  • Page 16: Access To Fan Box And Transformers

    Access to fan box and transformers 1. Dismantle 2 screws. 2. Dismantle the cables above the heating element and Fan box can be removed. Pull out fans this way sensor 4. Fan box with 2 transformers. One for 5. Fans are only replaceable from this side. LED and one for the fans.

  • Page 17: Reversible Door

    Reversible door The door can be changed from right-hinged to left-hinged and vice versa as follows: 2. Remove the upper hinge. 1. Lay the appliance on its back 3. Rotate the glass door 180° (On and loosen the upper hinge. the smaller cabinets (1500mm) desmount the handle.
  • Page 18 9. When the lock pin has been 10. Click the covers into place 11. Fit the door onto the bottom loosened completely, pull on the plinth sides on the pin, fit the top hinge and it up together with the lock opposite side.

  • Page 19: Wire-Diagram

    Wire diagram 1006 167 rev 01...

  • Page 20: Terminal Box

    Terminal box 1. Terminal box located in compressor 2. Place a screwdriver in cover, and pull to compartment. dismantle. Power cord 3 pole sockets for electric boxes Censor evaporator Compressor 6 pole sockets for electric boxes Frost protection thermostat...

  • Page 21: Change Compressor

    Change compressor Repairs to the cooling system may only The quantity and type of the refrigerant be carried out by trained professionals. used in your appliance is indicated on the rating plate. When changing the compressor, the filter drier must also be replaced. Do not make sharp bending angels on the Is is important to cut out the filter drier, as pipes.
  • Page 22 NordCap GmbH & Co. KG Thalenhorststraße 15 28307 Bremen Hauptsitz (Service, Finanzen & Personal, Lager, IT, Marketing) Telefon: +49 421 48557-0 Telefax: +49 421 488650 E-Mail: bremen@nordcap.de Die NordCap Verkaufsniederlassungen in Deutschland: Nord: Hamburg • Ost: Berlin • Süd: Ingelheim • West: Erkrath...
