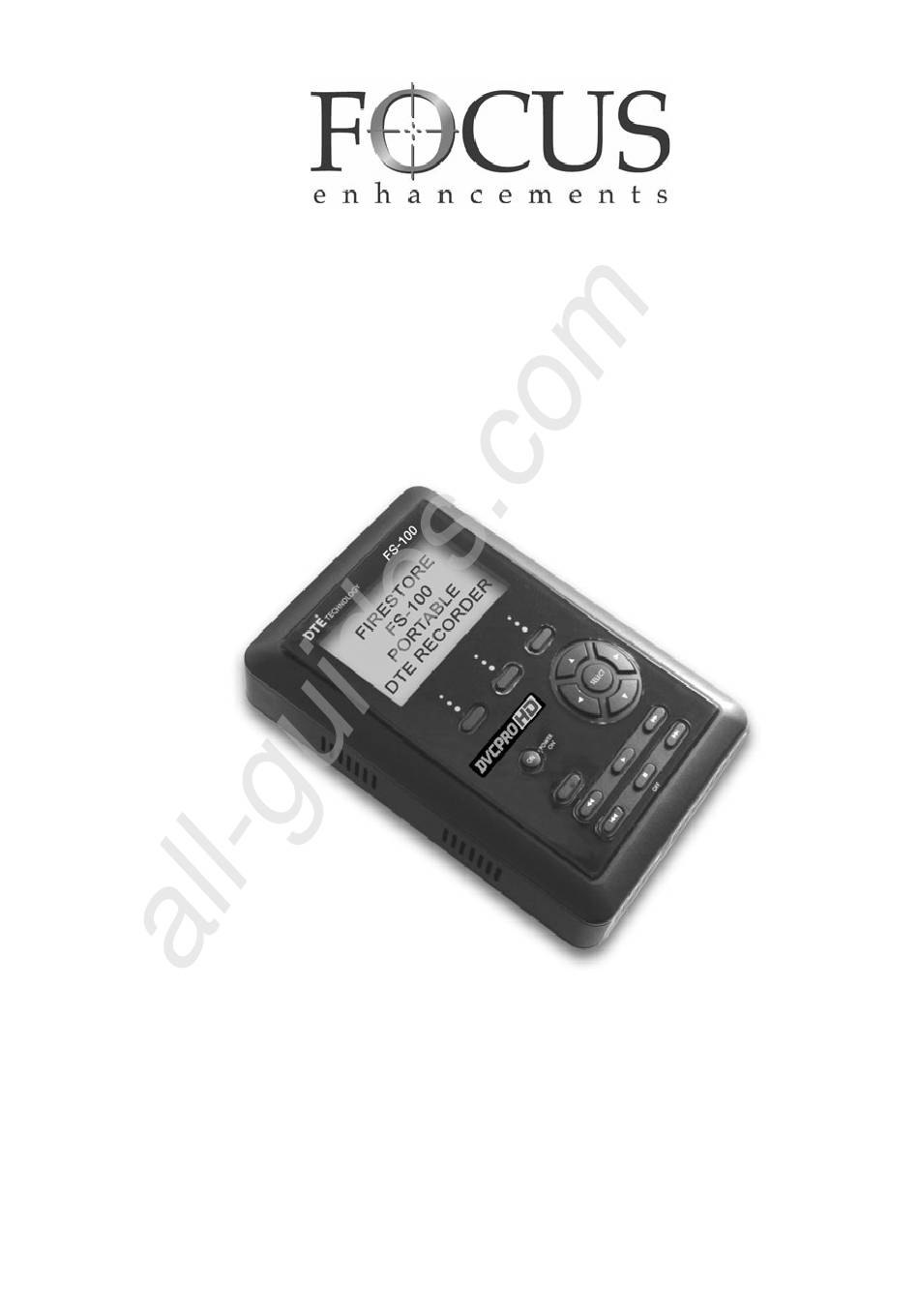

- Page 1 All manuals and user guides at all-guides.com FS-100 DVCPROHD DVCPRO25 DVCPRO/DV Quick Start Guide Release 1.0 Part Number: MANL-1037-03...
- Page 2 Office Hours: Monday through Friday 9:00 AM to 5:00PM Email: techsupport@como.com Telephone: +49 4307 - 83 58 58 Fax: +49 4307 - 83 58 99 Address: COMO Computer & Motion GmbH A Focus Enhancements Company Lise-Meitner-Str.15 24223 Raisdorf / Germany www.focusinfo.com...
- Page 3 All manuals and user guides at all-guides.com Quick Start Guide Quick Start Guide Follow these instructions to unpack, configure, and use your FS-100 ® Direct to Edit Recorder. Complete information about the FS-100 is available in the FS-100 User Guide.
- Page 4 FS-100 first must be powered on. • Hold down the button for two seconds. Power On Power OFF Hold down the button for five (5) seconds. During power off, OFF/STOP the FS-100 beeps, indicating that it is turning off. FS-100 Portable DTE Recorder...
- Page 5 All manuals and user guides at all-guides.com Quick Start Guide Camera Remote Control (FireWire Connector) (Serial Connector) Computer (FireWire Connector) Status LED Charge LED Bottom Internal Speaker Power Connector Cooling Vent Do Not Block FS-100 Portable DTE Recorder...
- Page 6 An uncharged battery takes 2-3 hours to charge with the unit powered off. • The standard FS-100 battery supplies power for about 90 minutes of continuous Record or Playback. The battery charges anytime it is connected to AC power using its AC adapter.
- Page 7 All manuals and user guides at all-guides.com Quick Start Guide 4 Configure FS-100 Use the FS-100 Navigation buttons to locate and set the following parameters. Welcome Screen Home Screen FS-100 Portable DTE Recorder...
- Page 8 HDD MODE 2. Select the menu option -DVCPROHD REC DVCPRO50 REC DVCPROHD REC DVCPRO/DV REC DD DRIVE Set to P2 Format 1. Go to the DV FORMATS menu. DV FORMATS 2. Select the menu option RAW DV FS-100 Portable DTE Recorder...
-
Page 9: Other Functions
All manuals and user guides at all-guides.com Quick Start Guide 5 Connect FS-100 to AG-HVX200 1394 connector FireWire 6-pin to 4-pin cable Camera connector 6 Configure Camera and Record 1. Power on the camera. 2. Set the switch to TAPE/P2 3. - Page 10 2. Select ORGANIZE P2 -ORGANIZE P2 ORGANIZE PINN The FS-100 creates the P2 directories and moves the various P2 files to the correct directory. After Organize P2 Copy Files to Another Disk After performing an ORGANIZE P2 and BEFORE recording new material or deleting existing clips, copy the recorded files to another hard disk and run the FORMAT utility.
- Page 11 5. Consult your computer’s documentation for information about how to mount an external drive to your system. Once the FS-100 is mounted as a drive on your system, transfer the entire Content folder to your system. FS-100 Portable DTE Recorder...
- Page 12 All manuals and user guides at all-guides.com Quick Start Guide FS-100 Portable DTE Recorder...
- Page 13 All manuals and user guides at all-guides.com...
- Page 14 All manuals and user guides at all-guides.com Release 1.0 Part Number: MANL-1037-03...
