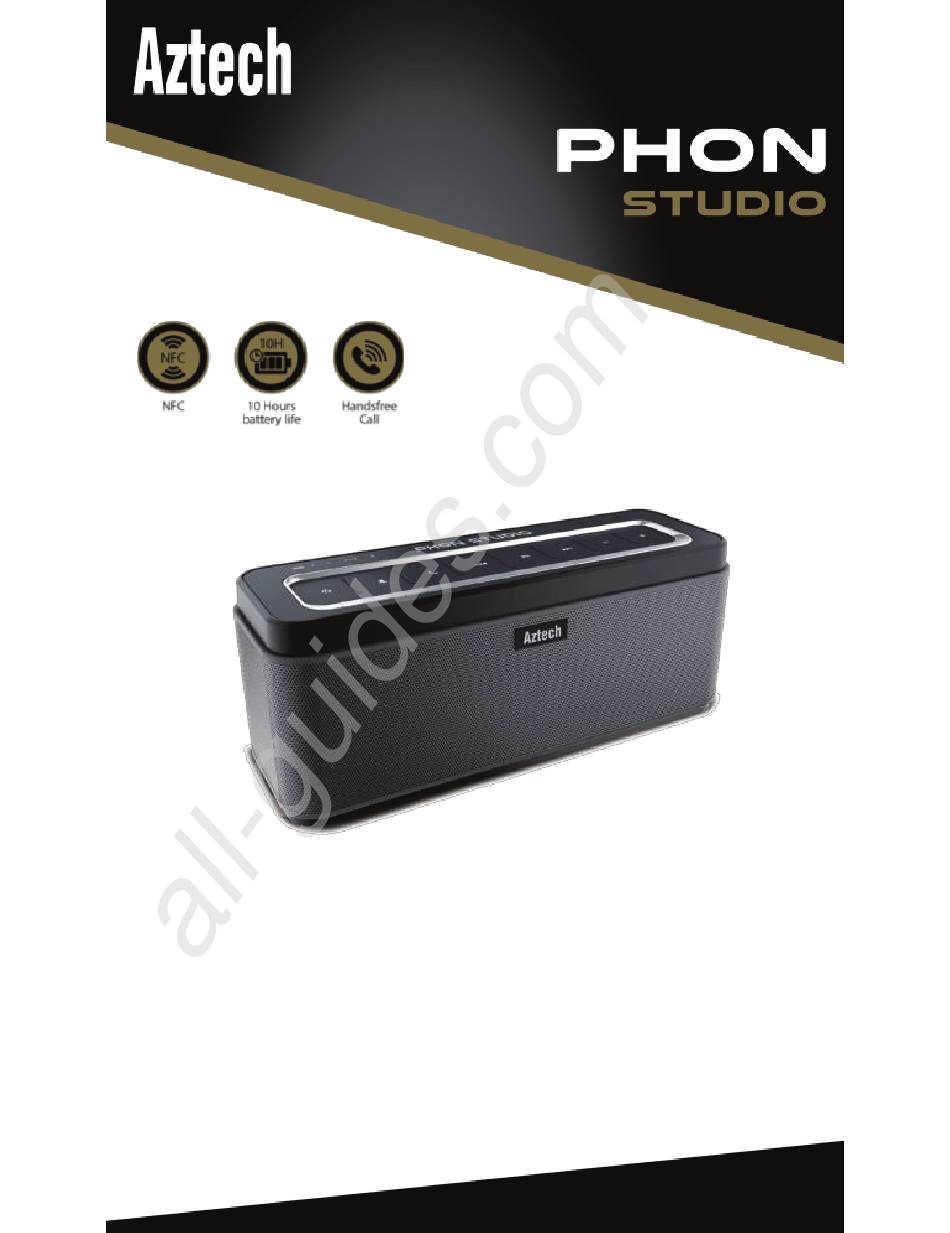

  • Page 1 All manuals and user guides at all-guides.com USER MANUAL...
  • Page 2 All manuals and user guides at all-guides.com User Manual © Copyright 2014 All rights reserved. part this document reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically mechanically, including, but not limited to, by way of photocopying, recording, information...
  • Page 3 All manuals and user guides at all-guides.com User Manual LIMITATION OF LIABILITY AND DAMAGES THE PRODUCT AND THE SOFTWARES WITHIN PROVIDED "AS IS," BASIS. MANUFACTURER MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED TO AS “THE SELLERS”) DISCLAIM ALL WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY...
  • Page 4 All manuals and user guides at all-guides.com User Manual INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF BUSINESS PROFITS, OR DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY ARISING OUT OF THE USE OR THE INABILITY TO PRODUCT SOFTWARES, INCLUDING...
  • Page 5 All manuals and user guides at all-guides.com User Manual DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE LIABILITY OF EACH EVERY KIND RELATION PRODUCT OR ITS SOFTWARE EXCEED THE AMOUNT PAID CUSTOMER PRODUCT.

  • Page 6: Table Of Contents

    All manuals and user guides at all-guides.com User Manual Contents About the Product……………………………………..7 Package Contents…………………………8 Device Design………………………………9 Description…………………………………..9 Setup……………………………………………………14 Connecting to AC power ....... 14 Pairing and connecting Bluetooth devices ........... 16 AUX………………………………………………….21 Battery……..........23 Troubleshooting .......... 24 Safety Precautions……………………………………28 Proper Use ...........

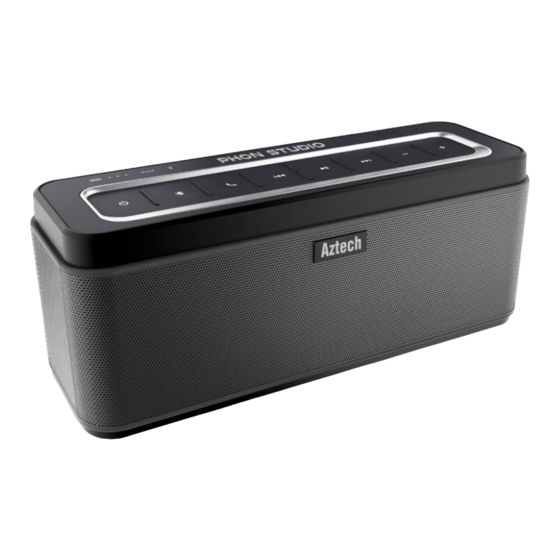

  • Page 7: About The Product

    All manuals and user guides at all-guides.com User Manual About the Product Prepare to have fun with your new powerful PHON STUDIO ABT100M. With rechargeable, high capacity 6600mAh polymer Li-ion battery of this device, you can rock out with up to 10 hours of continuous playing.

  • Page 8: Package Contents

    Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents vary different models. PHON STUDIO ABT100M Power Adapter 3.5mm Audio Cable User Manual Warranty Policy Note: You may also download the Quick Installation Guide, and the User Manual...

  • Page 9: Device Design

    All manuals and user guides at all-guides.com User Manual Device Design Description Control buttons are located on the top of the speaker. Long press for 2 seconds to turn the speaker on or off. Page 9 of 32...
  • Page 10 All manuals and user guides at all-guides.com User Manual Press to select the Bluetooth source. The speaker attempts to connect the last paired device. If there are no paired devices, the speaker becomes discoverable. Once Bluetooth is connected, press again speaker discoverable and allow pairing with another Bluetooth device.
  • Page 11 All manuals and user guides at all-guides.com User Manual Use this button to navigate between tracks when Bluetooth device is connected. Playing and Pausing Press incrementally decrease speaker volume. Press and hold to continuously decrease speaker volume. Press to increase speaker volume. Press hold continuously...
  • Page 12 All manuals and user guides at all-guides.com User Manual Status indicators Illuminate when an audio source or speaker state is activated. Indicates Bluetooth speaker state when the Bluetooth source is selected. Quick blinking between blue and red means it is discoverable and ready to pair with a Bluetooth device.
  • Page 13 All manuals and user guides at all-guides.com User Manual battery indicator light will display blinking red, Normally, it will display green. Indicates the battery power level: 30%, 60%, 100% Page 13 of 32...

  • Page 14: Setup

    All manuals and user guides at all-guides.com User Manual Setup Setting up the device is easy. Just follow the detailed instructions provided in this manual. Connecting to AC power Plug the power cord on the AC power supply into the DC connector on the speaker.
  • Page 15 All manuals and user guides at all-guides.com User Manual Plug the AC power supply into a live AC (mains) outlet. The battery begins to charge. NOTE: The first time using your speaker, connect it to AC (mains) power and charge the battery for four hours.

  • Page 16: Pairing And Connecting Bluetooth

    All manuals and user guides at all-guides.com User Manual Pairing and connecting Bluetooth devices To pair and connect a Bluetooth device to the speaker: Page 16 of 32...
  • Page 17 All manuals and user guides at all-guides.com User Manual Long press power icon for 2 seconds to turn the speaker on. NOTE: If you are using the speaker for first time, speaker automatically becomes discoverable (Bluetooth status indicator blinks between blue and red).
  • Page 18 All manuals and user guides at all-guides.com User Manual Turn on Bluetooth on your device. Locate the Bluetooth device list and select the device named PHON STUDIO. If your device prompts you for a passcode, enter 0000 (four zeroes). When pairing is completed and your device is connected to the speaker, the Bluetooth status indicator on the speaker changes from quick blinking blue and red...
  • Page 19 All manuals and user guides at all-guides.com User Manual Speaker Memory The speaker can remember up to eight paired devices. If you pair the speaker with an additional device, the device least recently connected is no longer paired with the speaker. Reconnecting a device When powered...
  • Page 20 All manuals and user guides at all-guides.com User Manual a. Begin by turning on the NFC function of the device you wish to connect to your speaker. b. Touch the device to the NFC area of your speaker (located at the top of the speaker), speaker should...

  • Page 21: Aux

    All manuals and user guides at all-guides.com User Manual a. Plug one end of 3.5mm audio cable (attached) into the AUX port. The speaker will turn model automatically. AUX indicator light will turn on which is on the top of the speaker.
  • Page 22 All manuals and user guides at all-guides.com User Manual Technical Information Power Bank Output: 5V, 1A Output Power: 12.5W x 2 Battery Capacity: 6600mAh Playback time: Hours (Depending on music) THD: ≤ 0.5% SNR: ≥ 90dB Item Size: 218mm x 74mm x 84.5mm Page 22 of 32...

  • Page 23: Battery

    All manuals and user guides at all-guides.com User Manual Battery Recommended charging time is four hours to fully charge the battery. You can use the speaker while charging the battery. NOTE: Battery performance varies with the content played and loudness at which it is played.

  • Page 24: Troubleshooting

    All manuals and user guides at all-guides.com User Manual Troubleshooting Speaker will not turn on. If operating on AC power, ensure your speaker is connected to a working AC(mains) by the AC power supply included with your speaker. If operating on battery power, the battery may be in protection mode or discharged.
  • Page 25 All manuals and user guides at all-guides.com User Manual Ensure bluetooth is activated on your device, you have selected in the Bluetooth device list, connection has been confirmed by your device. Your Bluetooth device may be out of range. Try moving it closer to the speaker.
  • Page 26 All manuals and user guides at all-guides.com User Manual The speaker indicates a connection but is not playing music. Ensure the device you want to hear is connected to the speaker and playing audio. Ensure the speaker is not muted and the speaker volume is turned up.
  • Page 27 All manuals and user guides at all-guides.com User Manual Turn disable Bluetooth functionality on all other nearby paired devices and reconnect the device you want to her. Turn the speaker off and back on. Page 27 of 32...

  • Page 28: Safety Precautions

    All manuals and user guides at all-guides.com User Manual Safety Precautions Do not open, service, or change any component. Only qualified technical specialists allowed service equipment. In the event that your device may be damaged or in need of repair, please contact professional...
  • Page 29 All manuals and user guides at all-guides.com User Manual Observe safety precautions to avoid electric shock Check voltage before connecting to the power supply. Connecting to the wrong voltage will damage the equipment. We are not responsible for any personal injury or property damage caused by improper use of this product.

  • Page 30: Proper Use

    All manuals and user guides at all-guides.com User Manual Proper Use Please charge your new device before first use. To prevent damage and risk of electrical shock, do not expose this device to dust, vibration, rain, water or liquids of any kind. place device close...
  • Page 31 All manuals and user guides at all-guides.com User Manual Do not use excessive force when pressing buttons or handling your device. To clean your device, use only a dry, soft cloth or minimally damp cloth without any corrosive solvent or cleaning agent.
  • Page 32 All manuals and user guides at all-guides.com User Manual Copyright © 2014 Aztech Technologies Pte Ltd ( CRN:199800635M ). All rights reserved Page 32 of 32...
