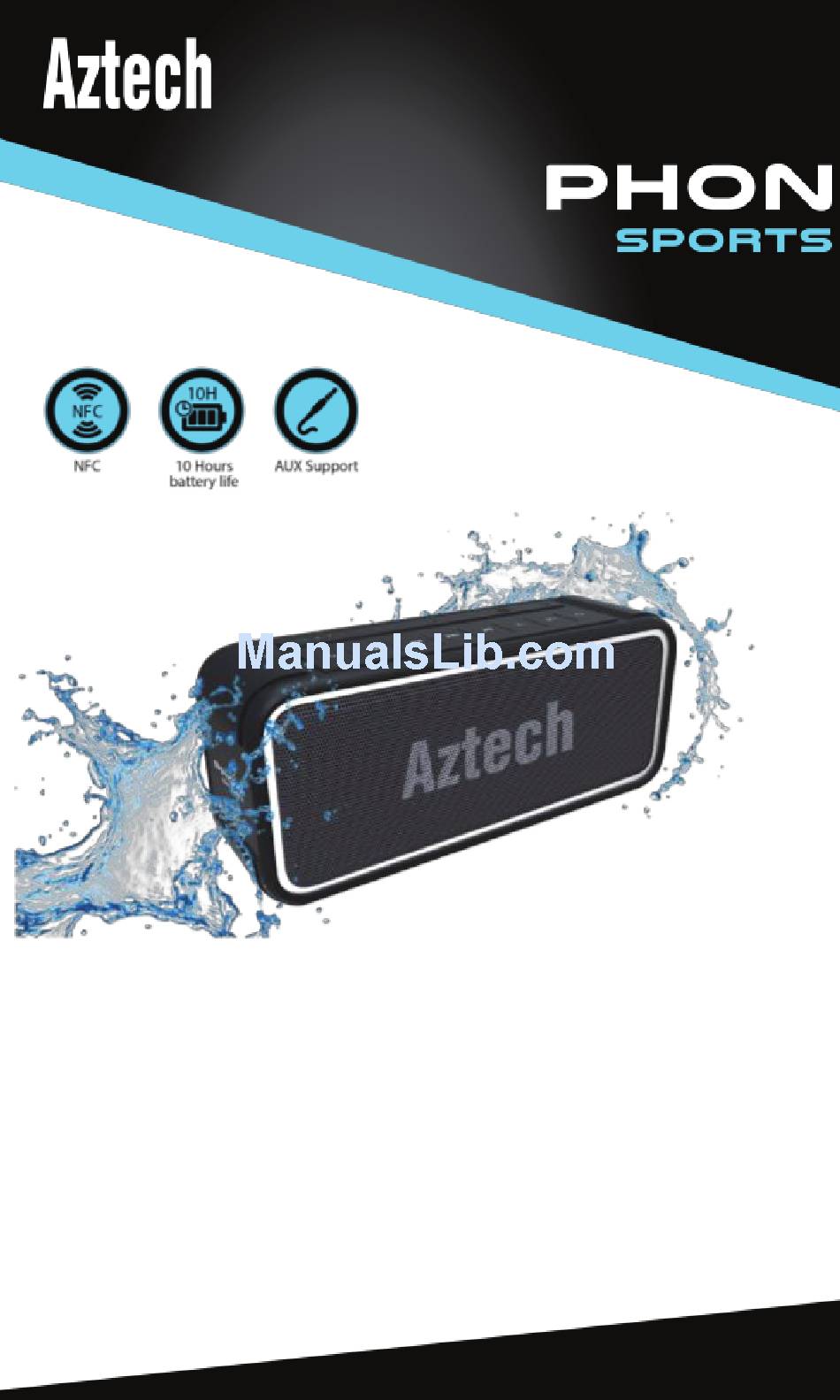

- Page 1 USER MANUAL...
- Page 2 User Manual © Copyright 2014 All rights reserved. part this document reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission.
- Page 3 User Manual LIMITATION OF LIABILITY AND DAMAGES THE PRODUCT AND THE SOFTWARES WITHIN PROVIDED "AS IS," BASIS. MANUFACTURER MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED TO AS “THE SELLERS”) DISCLAIM ALL WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTIES ARISING...
- Page 4 User Manual INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF BUSINESS PROFITS, OR DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY ARISING OUT OF THE USE OR THE INABILITY TO PRODUCT SOFTWARES, INCLUDING LIMITED THOSE RESULTING FROM DEFECTS IN THE PRODUCT OR SOFTWARE OR DOCUMENTATION, OR LOSS OR INACCURACY...
- Page 5 User Manual EXCLUSION OR LIMITATION OF LIABLITY FOR DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE LIABILITY OF EACH EVERY KIND RELATION PRODUCT OR ITS SOFTWARE EXCEED THE AMOUNT PAID CUSTOMER PRODUCT.
-
Page 6: Table Of Contents
User Manual Contents About the Product……………………………………. 7 Package Contents ……………………….9 Device Design…………………………… 10 Description ………………………………..10 Setup……………………………………………………17 Charging Speaker ........17 Pairing and connecting Bluetooth devices …………………………………18 AUX………………………………………………….21 NFC………………………………………………….21 Technical Information....... 22 Proper Use ........... 22 Safety Precautions …………………………………..24 Page 6 of 28... -
Page 7: About The Product
User Manual About the Product Maximize the use of your speaker with your new powerful PHON SPORTS ABT100S. With the rechargeable, high capacity 4400mAh Lithium battery of this device, you can rock out with up to 10 hours of extended playtime at 50% volume. - Page 8 User Manual Need to make a call? No problem! The built in functionality allows you to easily make and receive calls right from your speaker. Among the supported media connections are: AUX Cable, Bluetooth 4.0, and NFC. Page 8 of 28...
-
Page 9: Package Contents
Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents vary different models. PHON SPORTS ABT100S Power Adapter USB Charging Cable 3.5mm Audio Cable User Manual Warranty Policy Note: You may also download the Quick... -
Page 10: Device Design
User Manual Device Design Description Control buttons are located on the top of the speaker. Page 10 of 28... - Page 11 User Manual POWER BUTTON. Press and hold to turn Press again turn off. Press and hold for 8 seconds to reset device should operational issues occur. MODE BUTTON. Press to switch between Bluetooth, AUX, and MicroSD modes. If there is no AUX Cable or MicroSD card inserted, speaker will automatically enter default Bluetooth Mode.
- Page 12 User Manual VOLUME INCREASE VOLUME DECREASE BUTTON. Press increase/decrease the volume. PHONE BUTTON. While in Bluetooth mode, press and hold to activate Siri or S-Voice. Press again disable. Incoming call: Press once to answer, press again to end. Press and hold to decline call.
- Page 13 User Manual Status indicators Illuminate when an audio source or speaker state is activated. CHARGING INDICATOR. Flashing Red: Battery is low. Solid Green: Device is charging. BATTERY-LEVEL INDICATOR. Lights indicate remaining power. Flashing: Device is charging. Solid: Device is fully charged. AUX INDICATOR.
- Page 14 User Manual MICROSD INDICATOR. When indicator light is on, MicroSD Mode is enabled. BLUETOOTH INDICATOR. When indicator light is on, Bluetooth Mode is enabled. When Bluetooth is in pairing mode, indicator will flash. Once a device has been paired, indicator will remain solid. THERMAL SENSOR.
- Page 15 User Manual Back of the speaker: CHARGING PORT. with included Power Adapter (DC 15V/ 1A). USB POWER PORT. Provides power to connected devices. (5V/ 1A output). *This function enabled when speaker is on. Page 15 of 28...
- Page 16 User Manual AUX IN PORT. Connects speaker to external media devices. MICROSD PORT. Insert MicroSD card into slot to play stored media. Page 16 of 28...
-
Page 17: Setup
User Manual Setup Setting up the device is easy. Just follow the detailed instructions provided in this manual. Charging Speaker Insert the provided Power Adapter into the charging port of the device. Charging begins automatically even if the device is powered off. -
Page 18: Pairing And Connecting Bluetooth Devices
User Manual Pairing and connecting Bluetooth devices To pair and connect a Bluetooth device to the speaker: Power on speaker and hold your phone or other device within 3 feet of the speaker, press and hold the Play / Pause Button for 3 seconds, the speaker will then enter pairing mode and the indicator light should be flashing. - Page 19 User Manual Ensure Bluetooth is enabled on the device you wish to pair with the speaker. The speaker will display PHON SPORTS when scanning available devices. When selecting PHON SPORTS from the list, if prompted for a Password (sometimes called a “Passkey”, “PIN Number”), enter 0000.
- Page 20 User Manual When in Bluetooth mode. You can switch to AUX Mode or MicroSD Mode by pressing the Mode Button. Incoming calls will override music and other media with an incoming call voice prompt, simply press the Phone button to answer/ end call or press and hold to decline the call.
-
Page 21: Aux
User Manual Insert the AUX cord into the designated port to automatically switch the speaker to AUX mode. While in AUX mode, AUX indicator will glow. Connect your audio device to the AUX input with the supplied 3.5mm audio cable. Turn on the NFC function on the device you wish to connect to your speaker. -
Page 22: Technical Information
User Manual Technical Information Power Bank Output: 5V, 1A Output Power: 10W x 2 Battery Capacity: 4400mAh Playback time: 10 Hours (Depending on music) THD: ≤ 1.0% SNR: ≥ 90dB Dimensions: 200mm x 65mm x 87mm Proper Use prevent damage risk electrical shock, do not expose this device to dust, vibration, rain, water,... - Page 23 User Manual place device close proximity to open flames or extreme heat sources. Always place your device on level, flat, and stable surfaces. Avoid placing items on top of the speaker. Do not use excessive force when pressing buttons or handling speaker. To clean your speaker, use a dry, soft cloth, minimally...
-
Page 24: Safety Precautions
User Manual Safety Precautions Do not open, service, or change any component. Only qualified technical specialists allowed service equipment. In the event that your device may be damaged or in need of repair, please contact professional maintenance or qualified service center for assistance. - Page 25 User Manual Observe safety precautions to avoid electric shock Check voltage before connecting to the power supply. Connecting to the wrong voltage will damage the equipment. Please do not allow the use of this speaker by small children without proper adult supervision. We are not responsible for any personal injury or property damage caused by improper use of this...
- Page 28 User Manual Copyright © 2014 Aztech Technologies Pte Ltd ( CRN:199800635M ). All rights reserved Page 28 of 28...
