MAINTENANCE
1. The maintenance of the appliance must be performed by an authorized
service personal only.
2. Before any maintenance or service turn off the main power of the house.
Make sure that the is power off by checking with a voltmeter.
3. If the water has too much lime, a water purificating system is
recommended to purify water from lime. The failures caused by lime
scale deposits is not under warranty.
4. For open outlet water heaters used with spray head and spray head
must be descaled regularly.
5. Clean front casing with a cloth using detergent.(do not use gasoline,
solvent, thinner , etc. for cleaning casing)
INSTALLATION
MOUNTING OF DEVICE FOR OPEN OUTLET
(MODEL 105A5S1T.)
Mounting of Device to Shower and Parts to be used
CAUTION !
The water outlet must not be connected to any
tap/valve or fitting other than those specified.
MOUNTING OF DEVICE FOR CLOSED OUTLET
(MODEL 105A5S1TC)
Mounting of Device to Main
Pipe Line
* Water inlet and outlet of
the device is R 1/2".
* Connect the blue colour
cold water inlet pipe to cold
water pipe line with a
flexible hose.
* Connect the red colour
hot water outlet pipe to hot
water pipe line with a
flexible hose.
WARNING:
All poles shall be disconnection with contact opening at least 3.5 mm means for
disconnection must be incorporated in the fixed wiring should be in accordance
with the national wiring rules. The appliance must be connected to water supply
should be according the national installation rules.

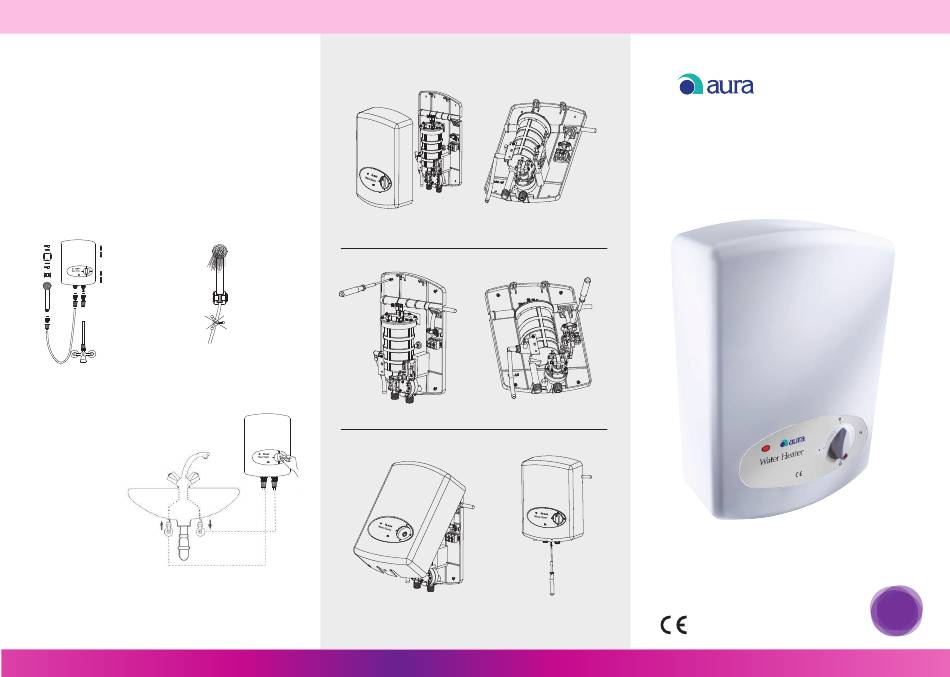

MOUNTING PLAN ON THE WALL
FIGURE 1
FIGURE 2
Remove the front cover in order to be
Strip ends of the insulated cable, make a
able to mount the product to the wall and
hole in the water leakporoof gasket, pass
to make the wire connections.
the wire through the back cover.
FIGURE 3
FIGURE 4
Fix the back cover to the wall with 4
After fixing the cable with clamps, attach
dowelled screws.
the cable end to clip and screw it.
FIGURE 5
FIGURE 6
Mount the front cover after fixing back
Mount the power level switch to the
cover to the wall
front cover and screw it.

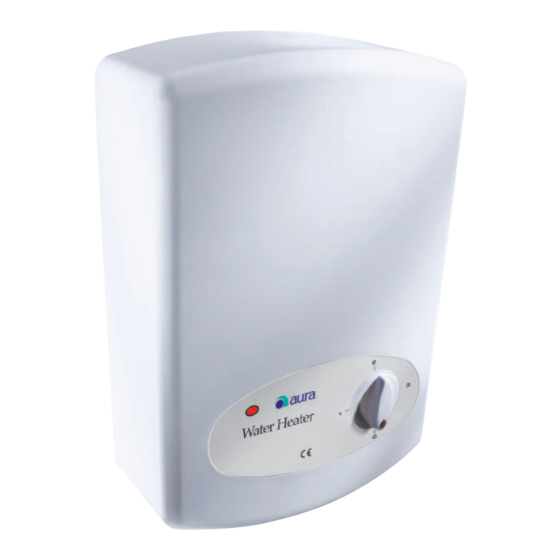

Instant
Water Heater
USER MANUAL
MODEL
105 A5 S1T.
105 A5 S1TC
