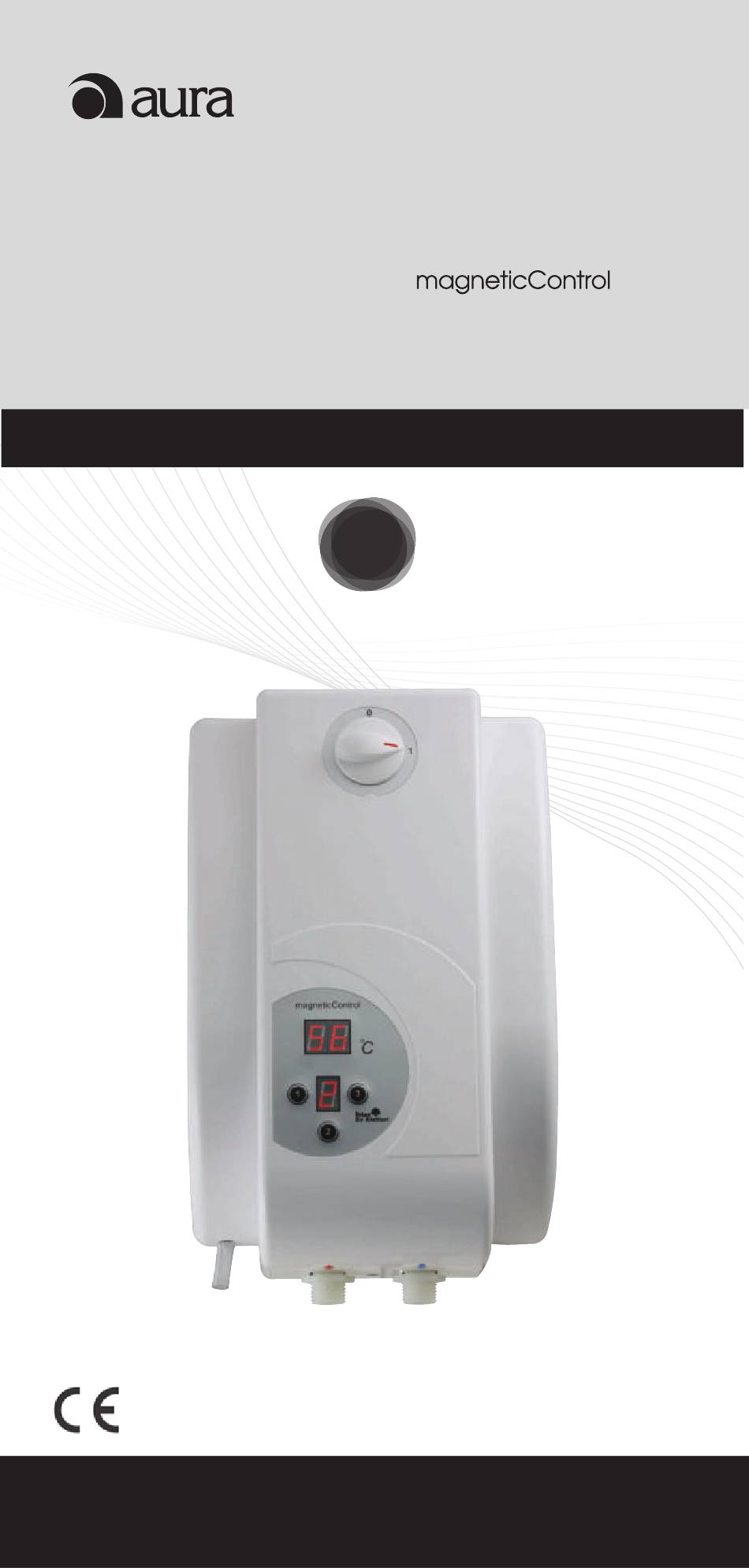

- Page 1 Water Heater User Manual MODEL 105DJ. 105DJC...
- Page 2 Dear Customer, Thank you for choosing our product. We hope that Magnetic Control Water Heater, which has been manu- factured in modern facilities in pursuant to high-quality standards, will provide the best e ciency for you. Therefore, please read the entire user manual thorough- ly and keep it for future reference.
-
Page 3: Safety Precautions
DESCRIPTION Front Body Shower Body Outer Hanger Inner Hanger Shower Hose Faucet Water Inlet Hose Casting with Clips Display and Control Panel 10. On/O Switch 11. Rear Body 12. Mounting Holes SAFETY PRECAUTIONS 1- This appliance must be grounded. 2- Disconnect this appliance from the electrical supply before cleaning, servicing or removing the cover. -
Page 4: General Specifications
GENERAL SPECIFICATIONS ON/OFF SWITCH There is a two-position switch (“1” and “0”) on your water heater. This switch is used for energizing or cutting the power from the system. When the switch is at “1” position, it means that the system is energized and when it is at “0”... - Page 5 CAUTION! when the ow rate is insu cient, “WATER” will be displayed in the temperature display, the selected level value will blink and the heaters will not function. In this case, ow rate must be raised using the faucet. 5- In order to turn o your water heater, rst deactivate the heaters by pressing the current level button.
- Page 6 INSTALLATION MOUNTING OF DEVICE FOR OPEN OUTLET (MODEL 105DJ) Mounting of Device to Shower and Parts to be used CAUTION ! The water outlet must not be connected to any tap/valve or fitting other than those specified. MOUNTING OF DEVICE FOR CLOSED OUTLET (MODEL 105DJ/C) Mounting of Device to Main Pipe Line...
- Page 7 MOUNTING DIAGRAM Figure 1 Figure 2 The cable connections of the product are The ends of the antigron cable are exposed, made, the package is opened at the front a hole is made in the sealing gasket and it is side for wall mounting, the card cable is mounted on the back cover removed from the card...
- Page 8 BOSB,Mermerciler Sanayi Sitesi, 7.Cadde No:14, 34524-Beylikdüzü-İstanbul/Turkey Tel:(+90) 212 875 35 62 Fax:(+90) 212 875 36 64 www.iea.com.tr - info@iea.com.tr...
