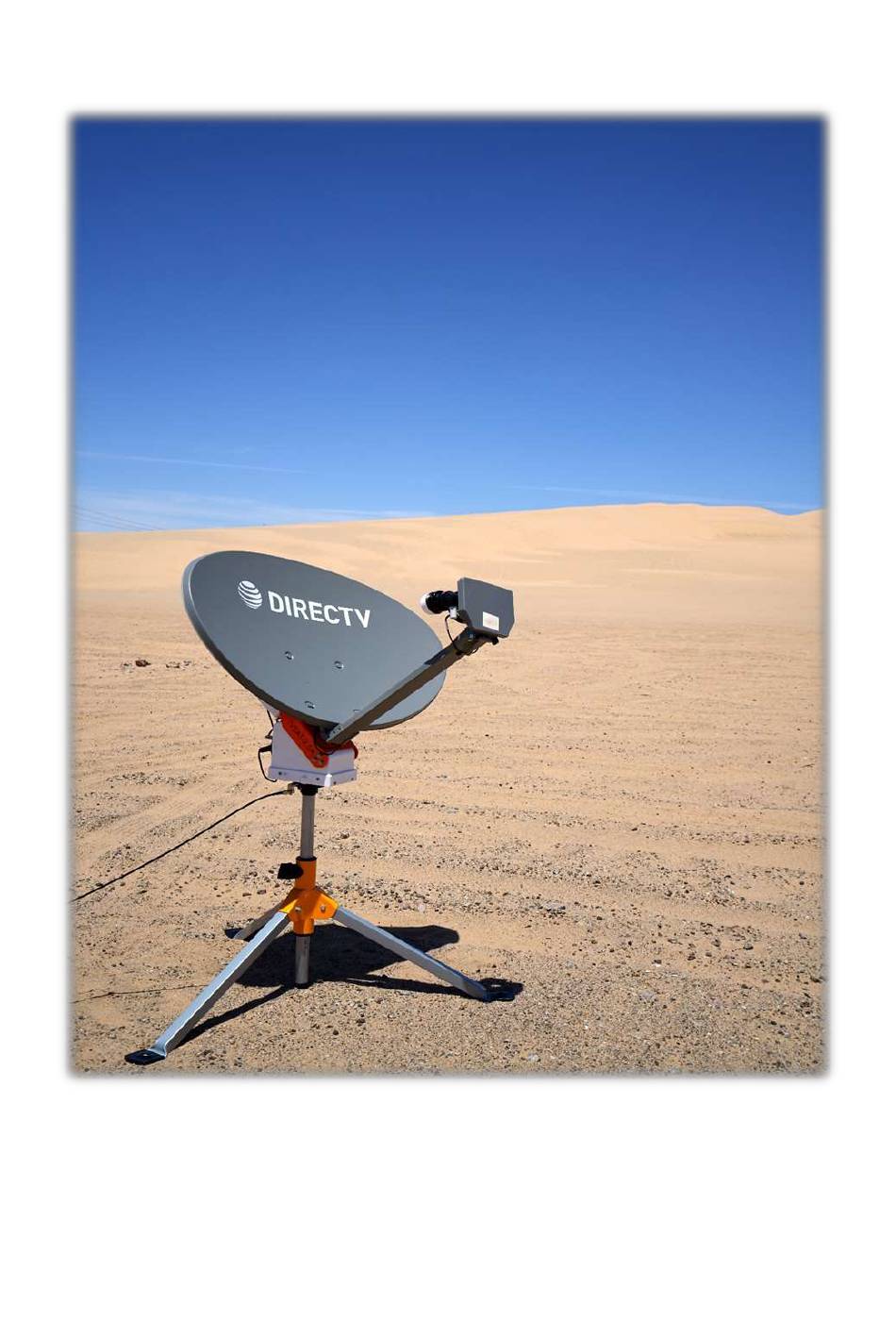

- Page 1 TV SAT 2.5A Installation Manual...
-
Page 2: Table Of Contents
Content 1. Introduction Safety Information Components 2. Installation Connection of the components 3. Troubleshooting 4. Specification [날짜]... -
Page 3: Introduction
1. Introduction 1.1 Safety Information Please read the user manual carefully before you start the installation. If you have already installed similar products, the procedure may not be the same as for this product. Improper handling can cause serious damage to this device. ■... -
Page 4: Components
1.2 Components Reflector Antenna unit SWM Power Inserter 10M Coax Cable Tripod 1M Coax Cable Antenna unit Hard case Reflector bag Knob Nut Camping Peg LNB + Tripod Camping Peg bag 5/16” Reflector 5/16” Nut (2) Reflector Bolt [날짜]... -
Page 5: Installation
2. Installation 2.1 Connection of the components Install the control unit and the set-top box is not inside the vehicle in the region of an airbag. Maintain a careful installation of the cable in order to avoid short circuits. Pay attention also to existing cables. - Page 6 Put the antenna dish on the dish bracket and fix with bolt and nut at marked area. Connect Main LNB and Side LNB connectors. Turn on the power adapter. Connect to the connecting diagram. [날짜]...
- Page 7 Turn on the set-top box. Antenna starts scanning satellites in full EL/AZ range (It takes about 5~10 min for full scanning). Antenna starts scanning satellites in full EL/AZ range (It takes about 5~10 min for full scanning). Tighten the lockingknob in order to secure the pointing to target satellite.
-
Page 8: Troubleshooting
3. Troubleshooting No satellite signal Objects such as trees, bridges and large houses located at the satellite’s angle of incidence cause the signal to be lost. If the satellite signal is lost due to severe weather conditions, the current program of the TV or receiver will be interrupted (the picture will pixelate, freeze or disappear). -
Page 9: Specification
to receive the TV signals, the receiving location must be within the footprint. In the peripheral areas of the footprint, reception interference may occur. Satellite frequency of a TV channel was changed TV stations change their frequency sporadically, which then no longer matches the frequency in the receiver. - Page 10 Temp -20° ~ 70° Power 10 Vdc to 24V dc, 1.3A Humidity 95% @ 40°C [날짜]...
