DirecTV SlimLine Installation Manual

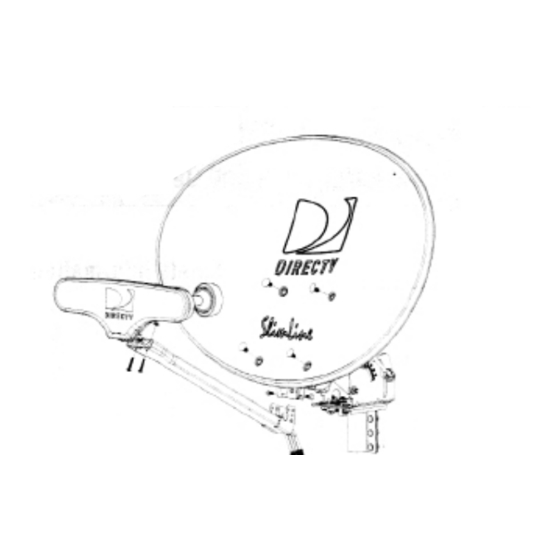

Multi-satellite dish antenna with integrated ka/ku lnbs and built-in multi-switch
Hide thumbs
Also See for SlimLine:
- Installation manual (17 pages) ,
- Installation manual (15 pages) ,
- Installation manual (15 pages)
Related Manuals for DirecTV SlimLine
Summary of Contents for DirecTV SlimLine
- Page 16 KaKu 99°-101°-103° For use up to 4 Tuners Note: In this scenario BBC’s must be Installed on all KaKu HD IRD tuners SAT/VHF/UHF Diplexer VHF/ All Outdoor F-Connectors must be tightened to no less A Diplexer can not be used than 30 inch lbs to include in a KaKu cable run LNB’s...
- Page 17 SWiM Integrated LNB Installation KaKu - HD DVR SWiM compatible IRD Single tuner SWiM compatible IRD 4 way single port DC power passing splitter rated from 2-2150MHz BBC’s are not required in this scenario All Outdoor F-Connectors Weather Seal identifier must be tightened to no less than 30 inch lbs to include LNB’s...
- Page 18 PVTP2-2 PVTP3-2 PVTP5-2 Tripod Towers Portable or Permanent Tripods for smaller Dishes or Off-air Antennas ¯ Sturdy steel construction ¯ Zinc / galvanized surfaces resist rust ¯ Mount on roofs, decks or any sturdy surface ¯ Swivel feet rotate to accommodate pitched surfaces Includes Tripod only - reflector, LNB and...
-
Page 19: Product Specifications
Product Specifications PVTP2-2 PVTP3-2 PVTP5-2 Tripod Towers (radius) Securing bolts are ½” hex head drive Mechanical Leg Dia. PVTP2-2 20 3/4” 9 3/4” 15” 1.0” PVTP3-2 32 3/8” 12 5/8” 18” 1.25” PVTP5-2 54 1/2” 20” 27.25” 1.25” Related Products EZP10 Sealing pads and six hex head lag screws.
