INSTRUCTIONS FOR USE
INSTRUCTIONS FOR YOUR SAFETY
Please read carefully and retain for future reference. It is a requirement of IEC/EN 60601-1 that these
instructions are made available to the operator and qualified maintenance staff at all times.
The Mopec Swordfish System has been examined and found to be in compliance with the standard
for Medical Electrical Equipment IEC/EN60601-1.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Swordfish and is the answer not in the manual?

Questions and answers

Related Manuals for Mopec Swordfish

Summary of Contents for Mopec Swordfish

  • Page 1 Please read carefully and retain for future reference. It is a requirement of IEC/EN 60601-1 that these instructions are made available to the operator and qualified maintenance staff at all times. The Mopec Swordfish System has been examined and found to be in compliance with the standard for Medical Electrical Equipment IEC/EN60601-1.

  • Page 2: Table Of Contents

    CONTENTS �oreword uipment Classification afety and arnings eneral escription e uence of peration opec aw Unit opec ower upply orta le opec acuum Unit �itting Accessories and etacha le arts � reventive aintenance And Inspection � opec �use eplacement opec ower upply rou leshooting Cutting ints...
  • Page 3 � �� v EQUIPMENT CLASSIFICATION Type B Equipment - Protection against electrical shock Saw Unit Watertight Equipment IP67 Power Supply Splash Proof Equipment IP65 Mode of Operation:- Continuous with Intermittent Loading up to 3 mins. Duty Cycle 50%...
  • Page 4 A� � his e uipment must e grounded efore use. � rained personnel must only use this product. 3. lease read all the instructions efore use. Chec all e uipment efore use. Use the appropriate safety e uipment. �o not immerse the ower �upply and acuum unit in i uid Use good uality disinfectants as approved y the ospital Infection Control.

  • Page 5: Eneral Escription

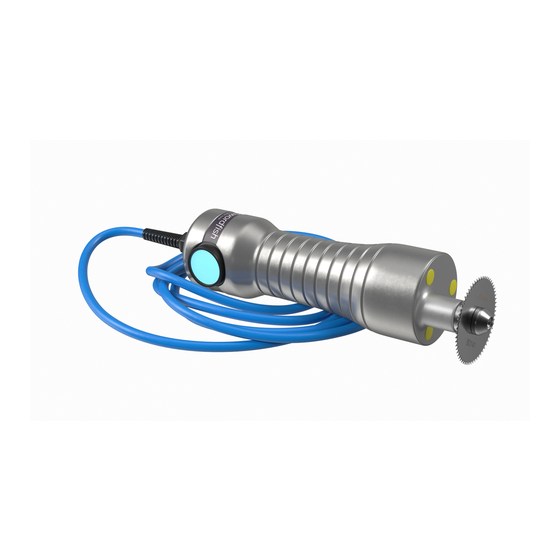

    GENERAL DESCRIPTION The M 5000 Oscillating Saw has been developed to help minimize the risk of cross infection in sensitive areas, providing it is used in accordance with the manufacturer’s instructions. The complete system comprises three basic units. THE SAW UNIT This unit is fed from the power supply.
  • Page 6 5000 SAW UNIT Captive Blade Clamp Square Drive �a��pie�e On/Off (I/O) Momentary Button Watertight �t�ai� �e�ie� Saw Unit Suppy Cable...
  • Page 7 Status Indicator Filtration Unit Output energized when lit. Status Indicator Status Indicator Saw Unit Output Saw Unit overload detected energized when lit. when flashing. Complete system will shut down. Then Auto-reset to “System off” status in approx. 20 seconds. Captive Retaining Screws OUTPUT INPUT FILTRATION UINT...
  • Page 8 Handle Vacuum Hose Hose/Filtration Unit Connector Vacuum Filtration Unit Cowelling Top Cover Hose/Cowling Connector Toggle Clamp Saw Unit Supply Lead Saw Unit ON/OFF Button Full System Cable Clip Status Indicator lights Filtration Unit Powe OUTPUT INPUT FILTRATION UINT MAINS SUPPLY ONLY ONLY Supply Lead...

  • Page 9: Reventive Aintenance And Inspection

    FITTING OF ACCESSORIES AND DETACHABLE PARTS BLADE REPLACEMENT � Untighten the Captive Blade Clamp with Allen wrench provided and remove. � Replace or index blade as required, ensuring it is seated properly on the square drive shaft. If not discard, or resulting damage or inefficiency of the saw could result. 3 �irmly retighten the Captive Blade Clamp with Allen wrench provided.
  • Page 10 FUSE REPLACEMENT ISOLATE FROM ELECTRICAL SUPPLY BEFORE REMOVING COVER The third fuse is an anti surge fuse. Fuse type and ratings are marked adjacent to the fuse holders or alternatively see page 14. Undo the four captive retaining screws to remove the cover. Prior to replacement ensure that the rubber seal set into the underside cover has not been disturbed.
  • Page 11 TROUBLESHOOTING The information contained in this section covers common problems and suggests solutions. If your system’s problem is not covered here, or you still need help, please contact the agent/manufacturer. Note. Disconnect equipment from the electrical supply before attempting to implement any solutions of an electrical nature Symptom Possible Cause Solution...
  • Page 12 TROUBLESHOOTING- continued Symptom Possible Cause Solution Check the power supply connection Saw unit status Faulty connection. indicator lit but not is properly engaged. running although filtration unit does. Defective motor. Contact manufacturer. Replace blade. Excessive noise from Distorted blade. saw unit. Check blade is fitted in accordance Badly fitting or loose blade.

  • Page 13: Cutting Ints

    CUTTING HINTS The M 5000 oscillating saw has been designed and constructed to provide effortless and highly efficient cutting in its appropriate areas of usage. We suggest a trial cutting period applying the least pressure possible to the workpiece until fully accustomed with the efficiency.

  • Page 14: Accessories And Etacha Le Arts

    ACCESSORIES AND DETACHABLE PARTS Order Code Description 0V �120V 0V�120V Bone 240V Dust Collector Filter Service Kit 2" Segmented 2.5" Circular 2.5" Segmented 3" Circular Blade Nut Driver Depth Gauge 64mm Depth Gauge 76mm Vacuum Hoods (10Pack) Vacuum Pipe with QR Fittings Captive Blade Clamp Kit Inc Allen Wrench...
  • Page 15 5000 SCHEMATIC WIRING...

  • Page 16: Ilter Ervice Ecord

    FILTER SERVICE RECORD This page is provided to document your filter service history to meet the requirements of the C.O.S.H.H. legislation. Although the complete filter service kit includes Vacuum Cowellings and Paper Filters, provision for these are not included in the service record as they are regarded more consistent with the day to day servicing of the equipment.

  • Page 17: Conditions Of Arranty

    CONDITIONS OF WARRANTY Should the equipment covered by this warranty become inoperative because of defective material(s) or workmanship, undertake at their own discretion to repair or replace it at no charge to the purchaser, subject to the following conditions :- 1 That the equipment has been used with care and shows no sign of abuse, neglect or accidental damage.
  • Page 18 TECHNICAL INFORMATION Power Supply Transformer manufactured to IEC - EN60742 Output - Saw 40 VDC Enclosure -to IEC529, DIN40050 Protected to IP65 Protection- Electronic Current Limiting Device Double Pole Fused Constructed -to IEC60601-1 Weight 1.7kg Input voltage - 230Vac or 110Vac Cable 4.0mm fitted Hand Piece Motor -DC Permanent magnet...
