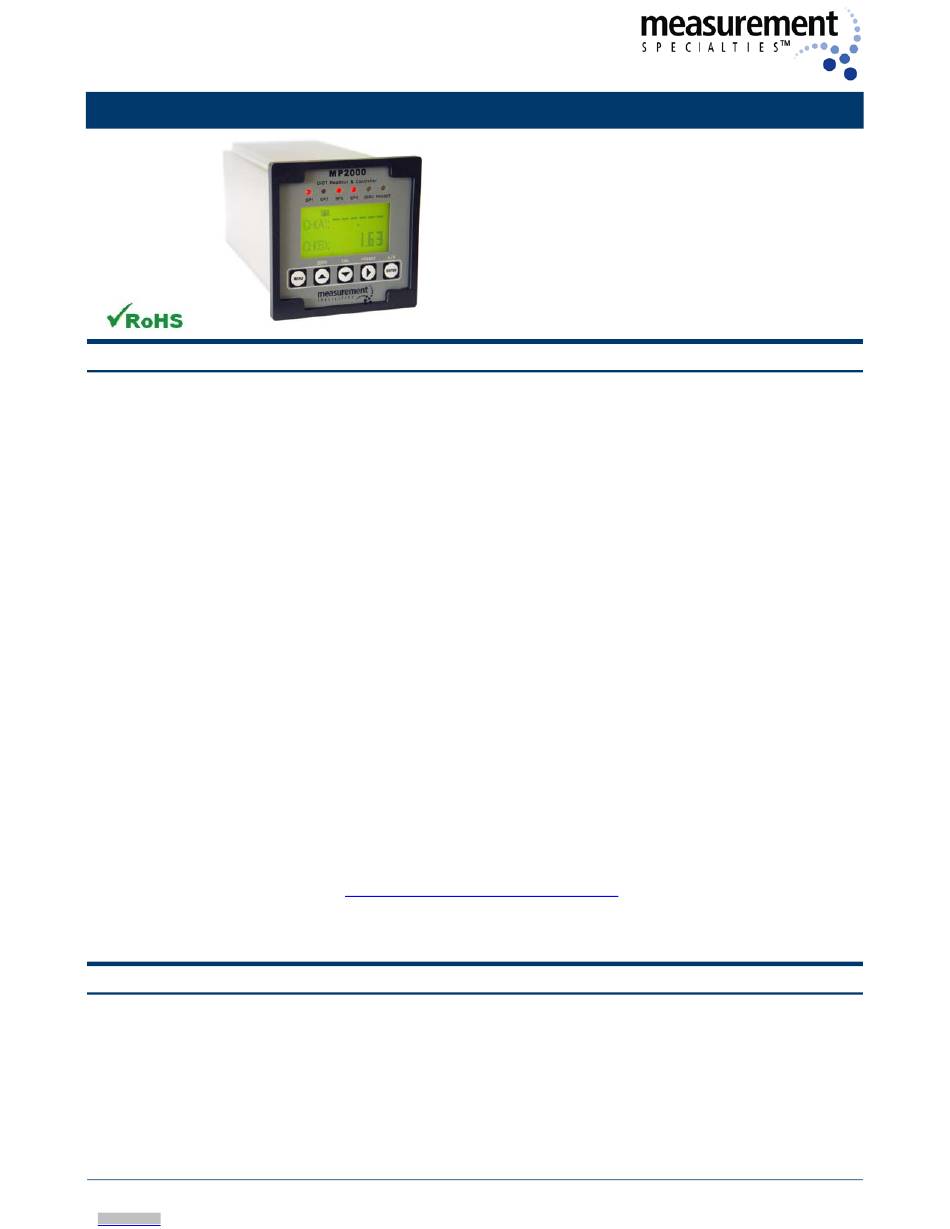

MP-2000
DESCRIPTION

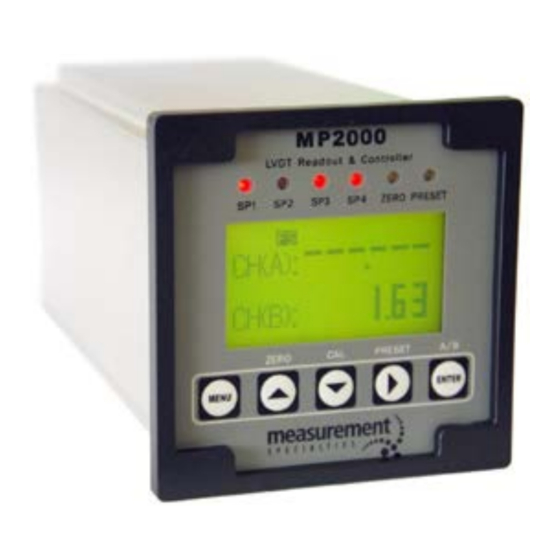

The MP-2000 is a dual channel, microprocessor based readout and set-point controller designed for industrial and process
control applications utilizing any LVDT/RVDT-based measurement device. In addition to displaying real-time readings of
LVDTs, RVDTs and gage heads, the MP2000 is also capable of displaying values such as MIN, MAX, TIR (Total Indicated
Run-out), A+B (sum of two channels) and A-B (difference between two channels). A 17-bit analog-to-digital converter
provides excellent performance and resolution, while a standard 9- pin RS-232 communications interface provides serial
data output to a PLC or PC COM port.
The MP-2000 features four user-programmable, opto-isolated, open-collector set-point outputs, which can be used to
monitor any display parameter. Any combination of high or low set-points may be selected, while programmable high and
low hysteresis values may be used to create 'set-point dead band' for prevention of control relay chatter. An optional 'Relay
Board' with a current handling capability of 5A per relay is available and highly recommended.
A front panel pushbutton permits auto-zeroing (tare) over the full range. Auto-calibration eliminates calculation of slope or
gain factors. All calibration and setup parameters are stored in nonvolatile memory for retention on power down or
interruption. The zero and min/max reset functions can be hard wired for remote control. The large, easy to read, bit-mapped
display provides user-friendly, menu driven prompts for simple push-button system setup, calibration, and monitoring of in-
process measurement parameters. A real-time scaled analog output, proportional to the digital readout is provided for each
LVDT/RVDT channel. An RS-232 output is provided for data transfer to a computer at 1200 to 19.2K baud.
Also see our other LVDT/RVDT signal conditioner models:
LiM-420
LVM-110
LDM-1000
ATA-2001
IEM-422
PML-1000
Measurement Specialties, Inc. (NASDAQ MEAS) offers many other types of sensors and signal
can be downloaded from our web site at:
MEAS acquired Schaevitz Sensors and the Schaevitz
FEATURES
•
Versatile dual channel display
•
Software selectable gain and excitation
•
4 user-programmable set-points with LED indicators
•
Master/Slave sync input/output for multiple MP-2000s
•
Remote zero and min/max reset
•
Rugged extruded aluminum housing
MP-2000 Rev. 5
Arrow.com.
Downloaded from
– Dual Channel LVDT/RVDT Readout/Controller
24VDC supply, 4-20mA (3-wire) output, open circuit board
±15VDC supply, ±10 and 0 to 10VDC outputs, open circuit board
10 to 30VDC supply, DC voltage and 4 to 20mA outputs, DIN rail mountable
Line powered, DC voltage and current outputs, push-button programmable
Line powered, 4-20mA output, NEMA-13 rated enclosure
AC or DC supply, DC voltage, current and RS485 outputs, 1/8
http://www.meas-spec.com/datasheets.aspx
•
Large backlit dual channel display
•
Menu driven setup and calibration
•
100 to 240 VAC line powered
•
MIN, MAX, TIR, A+B and A-B functions
•
2.5, 3.3, 5 and 10kHz selectable excitation
•
Analog and RS-232 outputs
•
Four user programmable set-points
•
Splash-proof front panel with status LEDs
•
¼ DIN standard panel mounting
th
DIN panel meter,
TM
trademark in 2000.
APPLICATIONS
•
Pass/fail part sorting
•
Concentricity/roundness gaging
•
Press cycle control
•
Part classification
•
Material thickness measurement
•
Industrial process control
www.meas-spec.com
1/5
conditioners. Data sheets
2015-July
