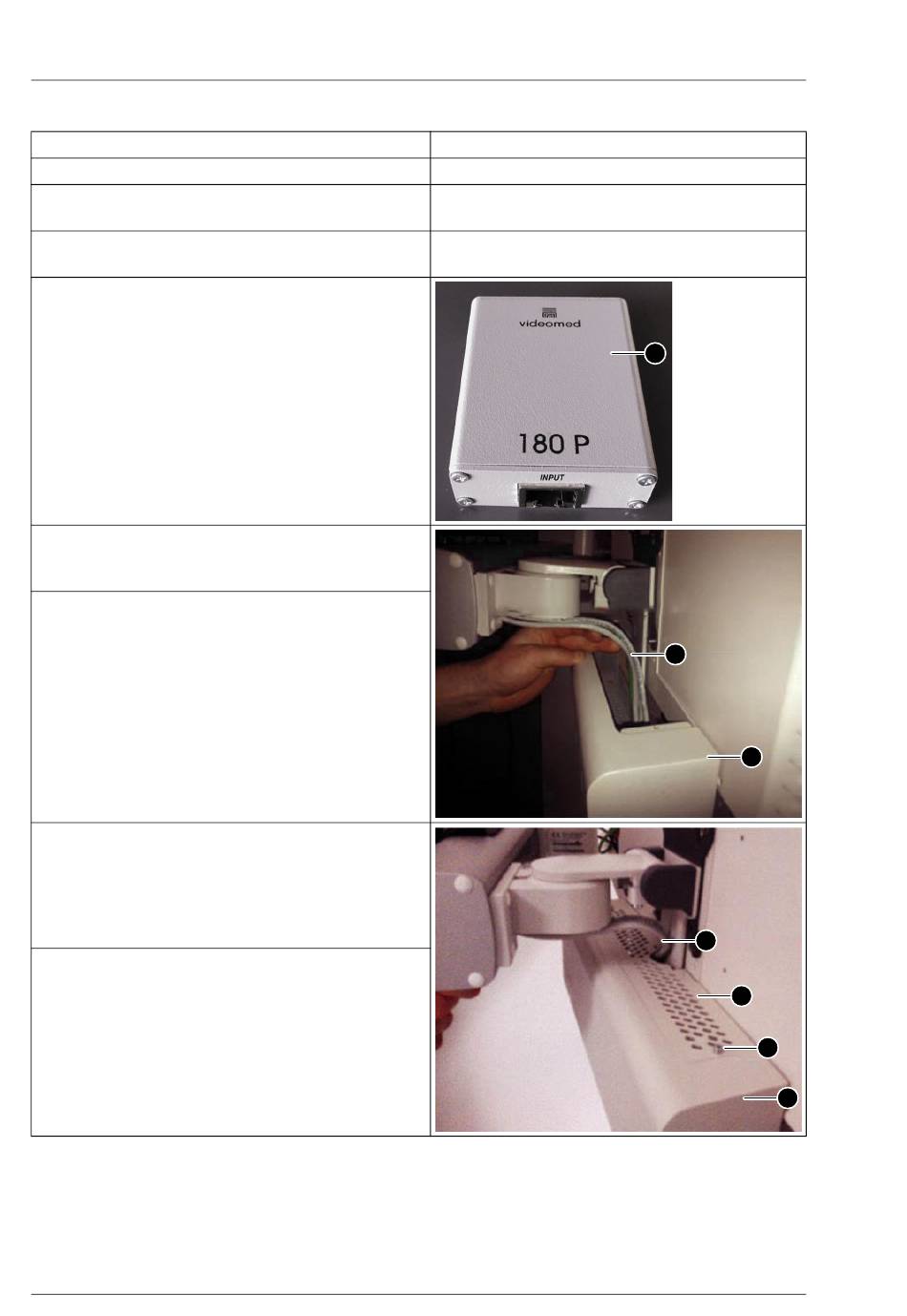

Components installation
Step
1. Install the power supply unit in the false ceiling.
2. Move up the power cables by using the monitor
support arm and connect the device's plug.
3. Create a cable passage in the monitor arm
cover.
4. Connect the DVI output of the 180 P device [1]
to the DVI input of the touchscreen inside the
cover [7].
5. Insert connection cables [6] from the 180 P
device to the respective connections on the
monitor.
6. Insert the 180 P device into cover [7] by tilting
the monitor forward.
Roll up the cable at the access.
7. Connect the DVI cable and power cable to the
monitor.
Arrange the connection cables in parallel, so
that they protrude from cover [7] forming an
arc [8].
Fix the connection cables with cable ties.
8. Fix cover [9] to cover [7] with 2 screws [A].
