Service Support Spirit

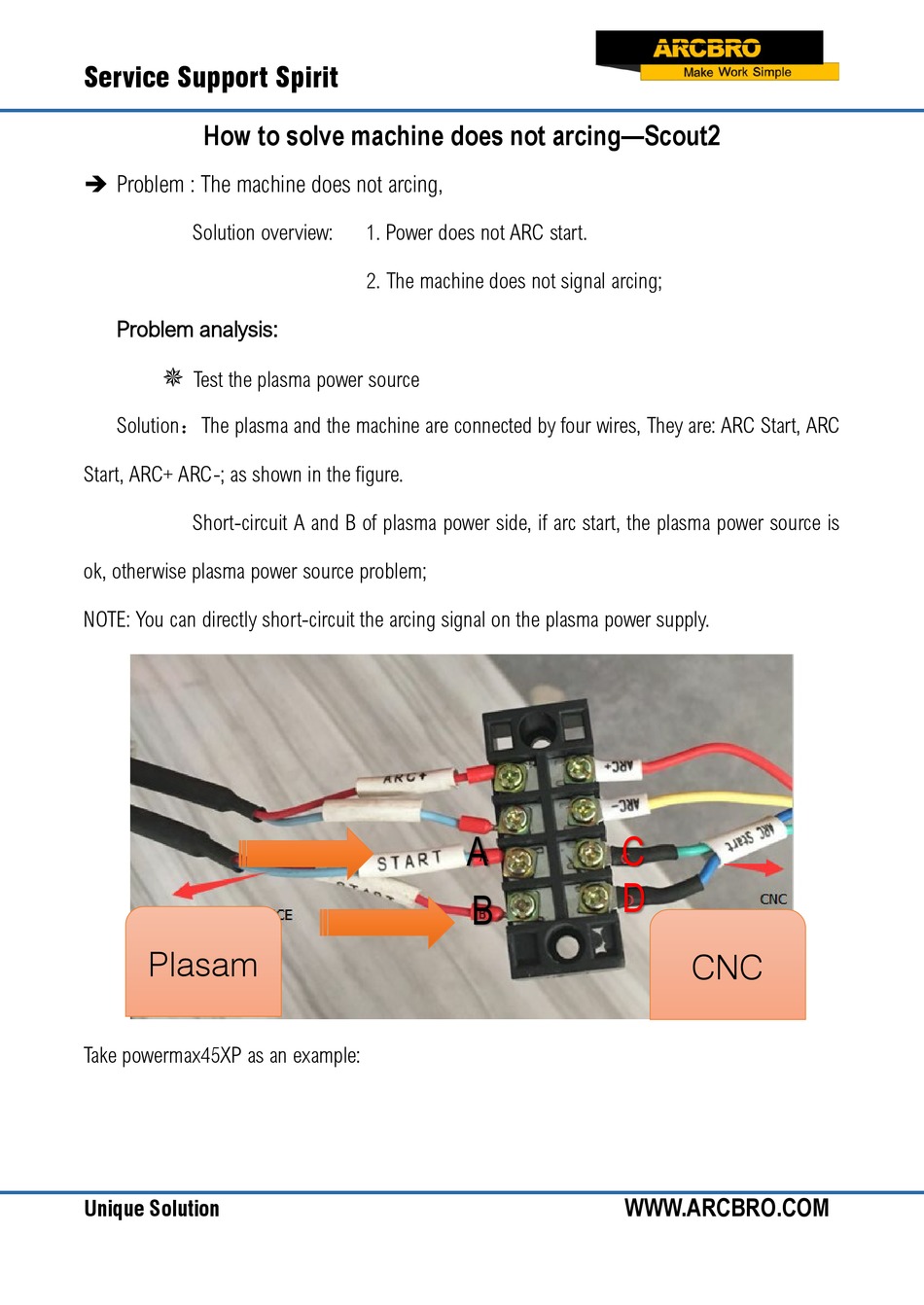

How to solve machine does not arcing—Scout2
Problem : The machine does not arcing,
Solution overview:
Problem analysis:
Test the plasma power source
Solution：The plasma and the machine are connected by four wires, They are: ARC Start, ARC
Start, ARC+ ARC-; as shown in the figure.
Short-circuit A and B of plasma power side, if arc start, the plasma power source is
ok, otherwise plasma power source problem;
NOTE: You can directly short-circuit the arcing signal on the plasma power supply.
Plasam
Take powermax45XP as an example:
Unique Solution
1. Power does not ARC start.
2. The machine does not signal arcing;
A
B
C
D
CNC
WWW.ARCBRO.COM
Advertisement
Table of Contents
Related Manuals for ARCBRO Scout2
Summary of Contents for ARCBRO Scout2
- Page 1 Service Support Spirit How to solve machine does not arcing—Scout2 Problem : The machine does not arcing, Solution overview: 1. Power does not ARC start. 2. The machine does not signal arcing; Problem analysis: Test the plasma power source Solution：The plasma and the machine are connected by four wires, They are: ARC Start, ARC...
- Page 2 Service Support Spirit Problem analysis: Check THC and CNC; Power the machine, Press【Piercing】Button on the CNC panel or【ARCING TEST】Button on the THC panel Check THC of ARCON light is on or not and output ARCING Signal. ARCING TEST WWW.ARCBRO.COM Unique Solution...
- Page 3 --Check ARCING Signal ,Keep pressing 【Piercing】Button, At the same time, Use a multimeter to check. If there is a ON between ARCSTART_1 and ARCSTART_2. Prove that the CNC is working; If there is a OFF between ARCSTART_1 and ARCSTART_2. Prove that the CNC is Bad ,Please contact ARCBRO; WWW.ARCBRO.COM Unique Solution...
- Page 4 Service Support Spirit ARCING Signal Multimeter WWW.ARCBRO.COM Unique Solution...
