Service Support Spirit

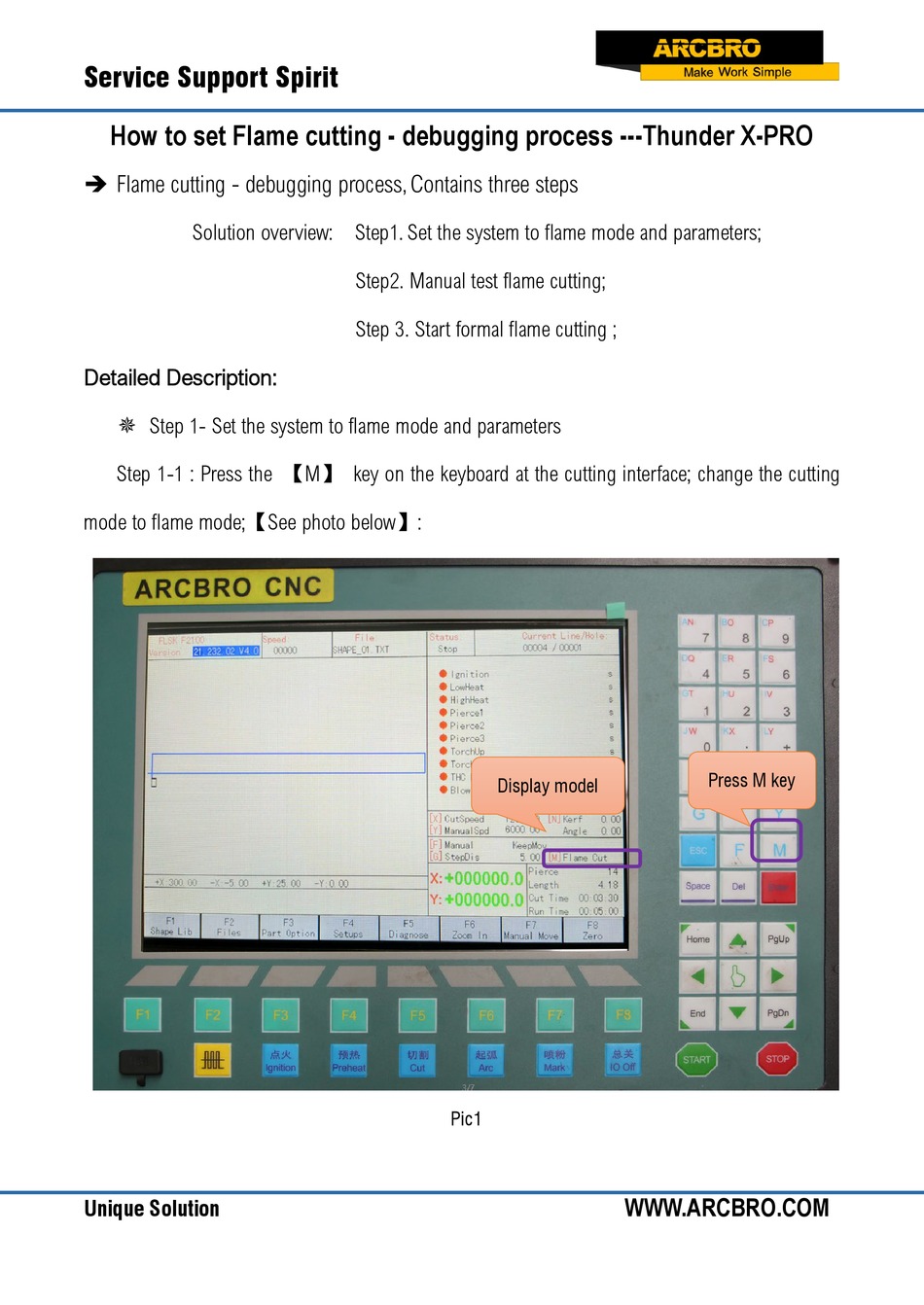

How to set Flame cutting - debugging process ---Thunder X-PRO
Flame cutting - debugging process, Contains three steps
Solution overview: Step1. Set the system to flame mode and parameters;
Detailed Description:
Step 1- Set the system to flame mode and parameters
Step 1-1 : Press the 【M】 key on the keyboard at the cutting interface; change the cutting
mode to flame mode;【See photo below】:
Unique Solution
Step2. Manual test flame cutting;
Step 3. Start formal flame cutting ;
Display model
Pic1
Press M key
WWW.ARCBRO.COM
Advertisement
Table of Contents
Related Manuals for ARCBRO Thunder X-PRO
Summary of Contents for ARCBRO Thunder X-PRO
- Page 1 Service Support Spirit How to set Flame cutting - debugging process ---Thunder X-PRO Flame cutting - debugging process, Contains three steps Solution overview: Step1. Set the system to flame mode and parameters; Step2. Manual test flame cutting; Step 3. Start formal flame cutting ;...
- Page 2 Step 2- Manual test flame cutting;{ We use oxygen+ acetylene as an example} Step 2-1 : Connect acetylene and oxygen to the gas pipeline of the machine - red for gas pipeline and blue for oxygen pipeline； WWW.ARCBRO.COM Unique Solution...
- Page 3 Step 2-2 : Ignition→Adjust the intensity of the flame Press the 【Ignition】 key on the keyboard;→ Open preheated oxygen and acetylene valves, Feel gas ejected by hand;→Ignition with a flame igniter Note：When igniting, the oxygen output gas is too large and the flame is extinguished; WWW.ARCBRO.COM Unique Solution...
- Page 4 The strength of the flame is adjusted according to the thickness of the steel plate ALL OFF Key Ignition Key Cut Key Step 2-3 : Test flame cutting Select a graphic in the system gallery to test flame cutting; Flame cutting process: WWW.ARCBRO.COM Unique Solution...
- Page 5 However, it is also possible to press the 【Cut】button according to the preheat condition; Then perforation-cutting In the cutting process, you can adjust the cutting speed according to home and end; adjust the Adjust the capacitance value of the CHC---control the height of capacitance the torch value WWW.ARCBRO.COM Unique Solution...
- Page 6 100-130 Propane-Oxygen cutting parameter Cutting Oxygen pressure Propane pressure Tip No. Cutting speed(mm/min) thickness(mm) （MPa) （MPa) 3-10 0.025 600-700 5-20 0.025 550-600 20-30 0.025 450-550 30-50 0.03 380-450 50-70 0.035 320-380 75-100 0.035 250-320 100-150 0.04 160-250 WWW.ARCBRO.COM Unique Solution...
- Page 7 Service Support Spirit 150-200 0.04 130-160 250-300 0.04 100-130 WWW.ARCBRO.COM Unique Solution...
