eletor SC-12 Instruction Manual

Climate controller with output current permissible up to 12a

Advertisement

Quick Links

SPEED CONTROL-12 v2a

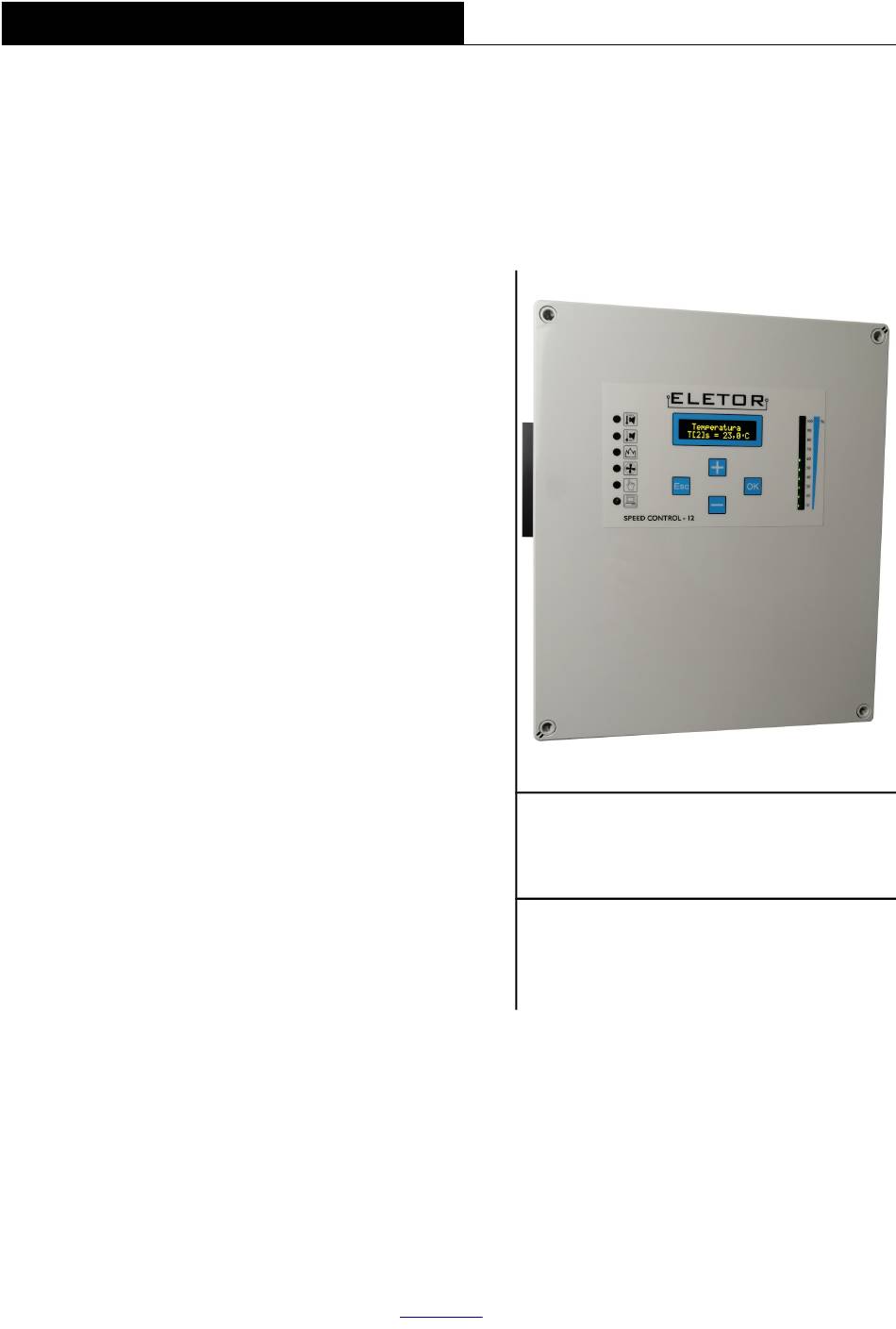

Microprocessor climate controller belonging to the SPEED CONTROL family. The device
versatility is guaranteed by the variety of its inputs/outputs and the intuitive software that
is available in two languages: Polish and English. Apart from some basic functions such
as: adjusting the temperature, heating, min/max fan speed and the alarms, the device
also allows to test and maintain calibration records of the actuators cooperating with the
controller.
Parameters and features:
1. Ventilation 1
st
stage:
output current smooth regulation up to the maximum of 12A
thermal overload protection
soft start function
bypass relay full calibration
minimal fan speed calibration
energy saving programme with inlet flaps opened in advance
2. Ventilation 2
nd
stage, separated relay up to 6A:
3. Heating, separated relay up to 6A
4. NO/NC alarm outputs:
power outage signalisation
max/min temperature threshold exceedance signalisation
built-in acoustic alarm
5. Three independent 0-10V outputs:
cooperation with the extension modules
inlet flaps and chimney damper control
variable-capacity heating control
6.Two analog inputs for the temperature measurement
7. Digital port for the temperature measurement (up to four sensors)
8. Two function-relay outputs (to choose):
cooperation with linear actuators
stage 3 and stage 4 ventilations
9. Two analog 0-10V inputs
10. Potentiometer DC10V power supply
11. Additional DC12V power supply
12. PC cooperation up to 1200 m
13. Power consumption of <10W
14. IP65 hermetic enclosure
15. Power supply voltage 230VAC 50Hz
ELETOR
ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379
www.eletor.pl
|
Instruction Manual
Climate controller with output
current permissible up to 12A
ELETOR SC-12
email:produkcja@eletor.pl
2019.08.16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-12 and is the answer not in the manual?

Questions and answers

Summary of Contents for eletor SC-12

  • Page 1 12. PC cooperation up to 1200 m 13. Power consumption of <10W 14. IP65 hermetic enclosure Climate controller with output 15. Power supply voltage 230VAC 50Hz current permissible up to 12A ELETOR SC-12 2019.08.16 ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
  • Page 2: Controller Installation

    (cut out from the bottom part). The wires should be inserted into the rubber cable glands and then connected. The illustration below presents the arrangement of the connectors of this device. ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
  • Page 3 The exemplary scheme of connecting the elevator is presented below - (the circuit breaker 1P-B6 is required). By deactivating the elevator function, FUNC1 and FUNC2 outputs work respectively as the relays of the and 4 stage ventilation. ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
  • Page 4: Working Principle

    In other words, it is necessary to set the minimal fan speed. Such function is similarly called “Minimal speed” and it can be set after entering ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
  • Page 5 When the temperature in the piggery has different parameters than those set by the user, the programme of the controller may connect with the alarm control panel and activate the alarm. ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
  • Page 6: Controller Programming

    Indicates the length of the breaks between the airing process work cycles 5 min (in minutes). Airing level Indicates the power of the ventilation during the airing process (in 30 % percentage). ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
  • Page 7 Testing the 0-10V outputs. By pressing “+” and “-” buttons it is possible to 0.0 V adjust the voltage value on: the expansion modules, inlet flaps and smooth heating. This function is especially useful during the calibration of inlet flaps ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
  • Page 8 In “Calibration Ope” the inlets should be opened to the 0 -> 324 maximum and then the parameter should be confirmed by pressing the “OK” button. In “Calibration Clo” the inlets should be closed and then the ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
  • Page 9: Error Messages And Warnings

    The overload alarm, activating at 75°C. The device stops working until it cools Cut of power down. Sensor failure Signals that the sensor is not connected to the device or that the sensor/connecting cable is damaged. ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
  • Page 10 Instead, it should be reprocessed in accordance with current requirements ( EU Commission WEEE directive 2012/19/EU). The product was manufactured in compliance with RoHS EU directive (also known as Directive 2011/65/EU). ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
  • Page 11: Technical Data

    The controller SPEED CONTROL-12 v2 comes with: one temperature sensor • four rawlplugs • two PG13.5 cable glands • three PG11 cable glands • four PG9 cable glands • ELETOR ELETOR, Zbiczno 43D, 87-305 Zbiczno, Poland tel. 056 4939379 www.eletor.pl email:produkcja@eletor.pl...
