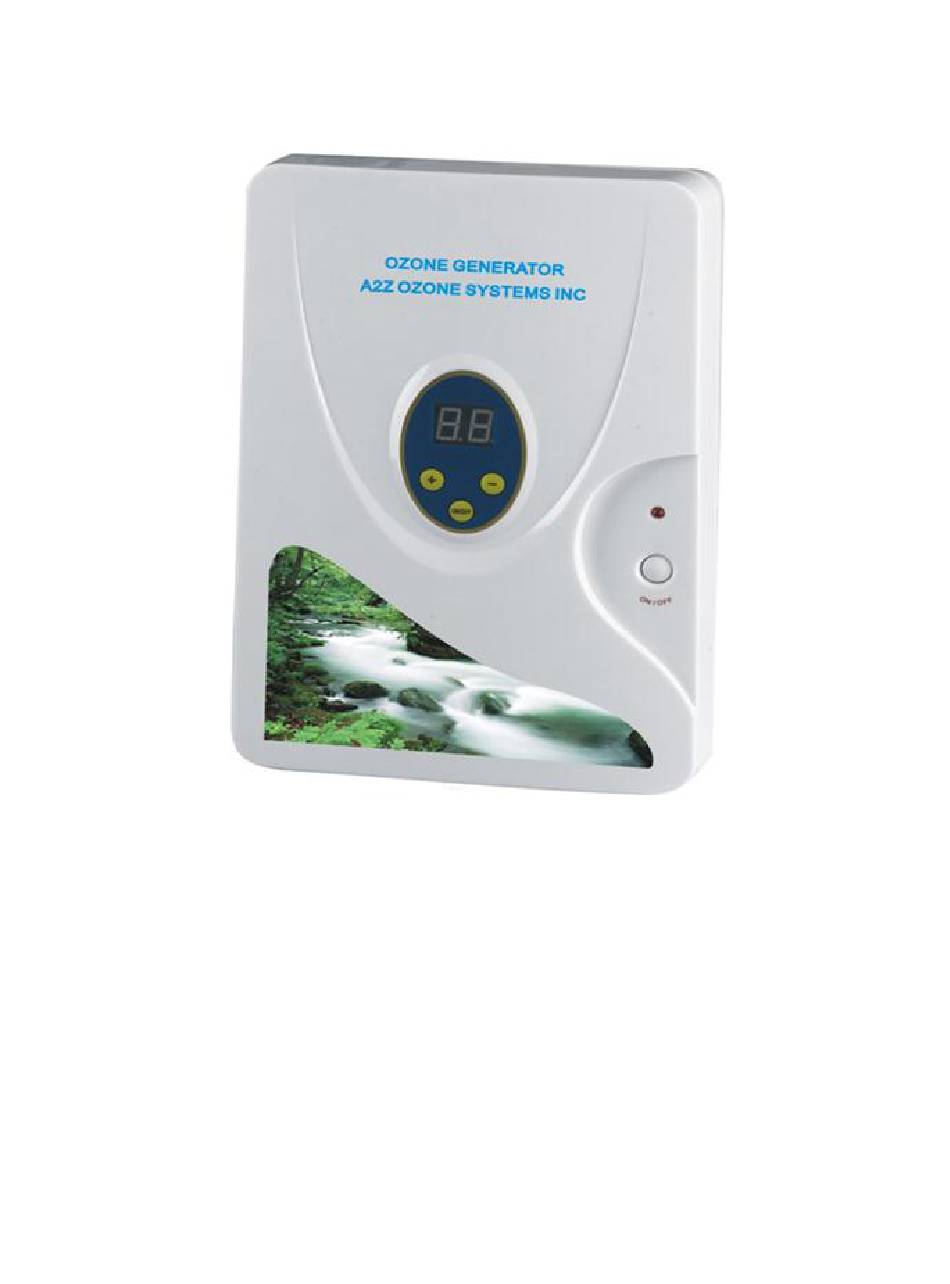

- Page 1 MULTI FUNCTION PORTABLE OZONE GENERATOR OPERATING MANUAL MODEL AQUA-6 220/240V 50Hz/60Hz 03132010...
-
Page 2: Table Of Contents
Table of Contents Safety Information page 3 Technical Specifications page 3 Timer Function Table page 4 Parts Included page 4 Internal Tube Instructions page 5 Internal Fuse Instructions page 5 Operating Instructions page 5 ... -
Page 3: Safety Information
270 x 190 x 75 mm Timer Settings See Timer Function Table Note: AQUA-6 comes in two different electric input configurations; one for 110/120VAC 50/60HZ and the other for 220/240VAC 50/60HZ. Be sure to check the unit voltage input before plugging in the unit. -
Page 4: Timer Function Table
Timer Function Function Description Run 2 minutes and turn off , one time run only Run 5 minutes and turn off, one time run only Run 10 minutes and turn off, one time run only Run 15 minutes and turn off, one time run only Run 20 minutes and turn off, one time run only Operates for 2 minutes every hour, repeats every hour Operates for 5 minutes every hour, repeats every hour... -
Page 5: Internal Tube Instructions
Attach one end of the ozone supply tubing into the ozone vent at the bottom of the generator and a stone diffuser into the other end of the tube. Extend the tubing so that the diffuser stone and the Aqua-6 purifier are as far apart as possible. -
Page 6: History Of Ozone
To cancel a setting, simply press the on/off button below the LCD. The LCD will blink (00) indicating it is ready for a new setting. After the function is turned off, please allow air compressor to run for 10 seconds, then unplug or cut power to the unit. - Page 7 Ozone is clearly superior to virtually all other forms of purification. When you use the AQUA-6, you won’t have to purchase or store any chemical or purification materials or change any filters. Everything you need is generated within the small, lightweight AQUA-6 unit.
-
Page 8: Air Treatment
AIR TREATMENT USES The AQUA-6 Purifier can be used to destroy airborne odors caused by such things as wet carpet, basement mold and mildew, pet odor, pollen, smoke odor, chemical odor, paint odor and fire damage. Simply use the timer settings on the Purifier to select the duration of ozone treatment. -
Page 9: Water Treatment
(2 minutes per gallon). SPA AND POOL TREATMENT The AQUA-6 Purifier can be used on spas, hot tubs, and wading pools up to 1,000 gallons, allowing you to reduce the chemical usage significantly. You will never need to put up with dry skin, red eyes, faded suits, or green hair again! Ozone is pH neutral, so it will not adversely affect the acid/alkaline balance of your water. -
Page 10: Disinfecting Toothbrush, Dentures, Etc
Plug the AQUA-6 Purifier into a ground fault circuit interrupter (G.F.C.l.) protected outlet. Set the unit at desired function and turn on the unit. Disinfect Tooth Brush, Dentures, etc. A simple way to promote gum health and prevent the spread of harmful bacteria and microorganisms is to soak your toothbrush in ozonated water for at least 3 minutes before or after each use. -
Page 11: Warranty
A2Z Ozone – 90 DAYS LIMITED WARRANTY The limited warranty set forth below applies to products manufactured by A2Z Ozone Systems Inc. - and sold by A2Z Ozone Systems or its authorized dealers. This limited warranty is given only to the first retail purchaser of such products and is not transferable to any subsequent owners or purchasers of such products. - Page 12 number clearly marked on the outside of the package. All preauthorized defective parts must be returned to A2Z Ozone within thirty (30) days. Under no circumstances may any product be returned to A2Z Ozone without prior authorization. You must call or write prior to returning product or your returned goods shipment will be refused. Upon receipt of preauthorized returned goods, A2Z Ozone will repair or replace, at its option, the defective product(s) and return them freight (prepaid for products under warranty).
-
Page 13: Registration Card
Purchase Date_______________________Date Installed____________________ AQUA-6 Product Purchased: Comments / Questions: DO NOT FORGET TO CUT OUT, PLACE IN ENVELOPE AND MAIL TO THE FOLLOWING ADDRESS FOR INSTANT WARRANTY COVERAGE! A2Z Ozone Systems Inc. ATTN: Warranty Dept. 1844 Cargo Court Louisville, KY 40299, USA... - Page 14 A2Z Ozone Systems Inc. 1844 Cargo Court Louisville, KY 40299, USA +1 502-499-4977 +1 502-499-4976 fax www.A2Zozone.com...
