A2Z Ozone Systems Aqua-6 Operating Manual

Ozone generator
Hide thumbs Also See for Aqua-6:

Advertisement

Table of Contents

register your product at
a2zozone.com/pages/warranty
Aqua-6
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aqua-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for A2Z Ozone Systems Aqua-6

Summary of Contents for A2Z Ozone Systems Aqua-6

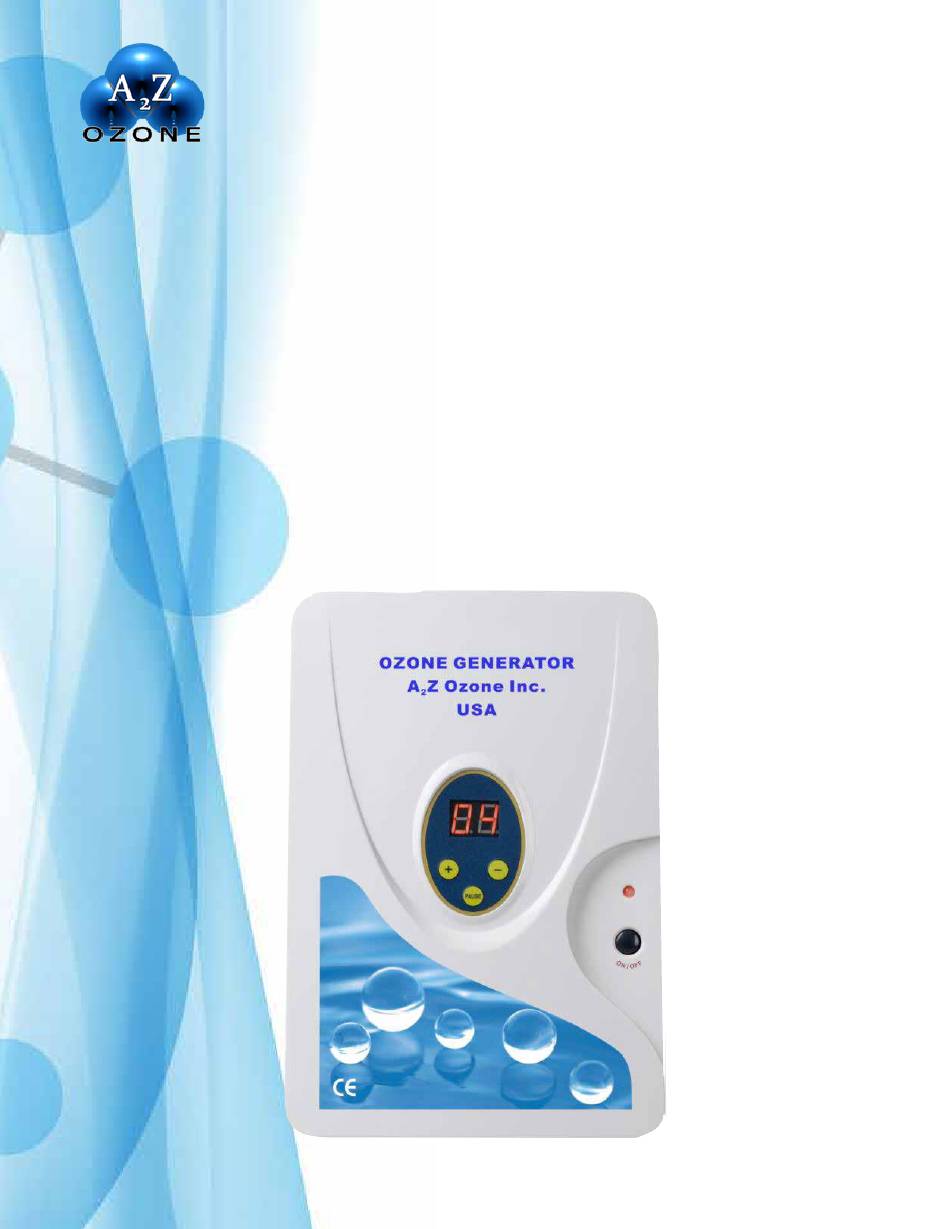

  • Page 1 Aqua-6 Operating Manual...

  • Page 2: Table Of Contents

    Table of Contents • Important Safety Information ............. 2 • Technical Specifications ............... 3 • Aqua-6 Features ................4 • Timer Functions ................6 • Operating Instructions ..............7 • Water Applications ................. 9 • Air Applications ................13 • Maintenance ..................15 •...

  • Page 3: Important Safety Information

    • Do not breathe in ozone directly. NOTE: The Aqua-6 is NOT a universal voltage input. To prevent damage, be sure to check the unit voltage input before plugging in the unit. If the plug type is U.S., the unit is 110 VAC.

  • Page 4: Technical Specifications

    Technical Specifications Items Included: 1. Aqua-6 Multi-Purpose Ozone Generator 2. Aqua-6 Multi-Purpose Ozone Generator operating manual 3. Two sets of long tubes for ozonation (each 36 inches long) 4. Two short spare tubes for internal replacement if needed (1.75” and 2.75”) 5.

  • Page 5: Aqua-6 Features

    Where the PTFE tubing is attached to the unit. One end of the Ozone Outlet ozone supply tubing is attached to the ozone outlet on the Aqua-6 unit, while the other end is attached to a diffuser stone. Where the electrical cord is attached to the unit. Wait for the air...

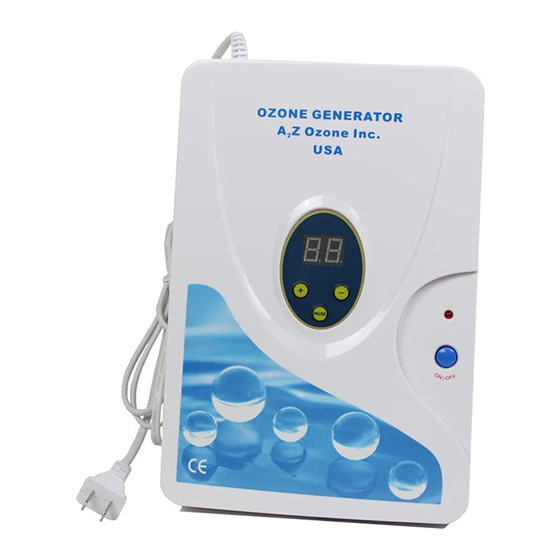

  • Page 6 OZONE GENERATOR A Z Ozone Inc. PAUSE...

  • Page 7: Timer Functions

    Timer Functions Function # Description Run 2 minutes and turns off, one time run only Run 5 minutes and turns off, one time run only Run 10 minutes and turns off, one time run only Run 15 minutes and turns off, one time run only Run 20 minutes and turns off, one time run only Operates for 2 minutes every hour, repeats every hour Operates for 5 minutes every hour, repeats every hour...

  • Page 8: Operating Instructions

    • Press the plus (+) or minus (–) buttons to select another function if desired. • Keep in mind, only run another function on the Aqua-6 after a cooldown cycle. This unit is not made for continuous use.
  • Page 9 • This will allow the ozone to purge out and will prolong the unit’s operating life span. • The unit is now powered down and ready for storage or transport. NOTE: This unit is not made for continuous operation. Do not intentionally run the unit without a 15 minute pause in between each run time.

  • Page 10: Water Applications

    Be sure to extend the tubing so that the diffuser stone and the Aqua-6 are as far apart as possible. NOTE: If the diffuser stone is placed more than 4 inches deep in the water, the air compressor pressure and water pressure will equalize.
  • Page 11 • Then let utensils sit for 30 minutes in ozonated water Fish Tank The Aqua-6 can be used to keep fish tank water clean and odor free. • These guidelines are for a typical sized fish tank: • Set the Aqua-6 on Function #6...
  • Page 12 • Gargle the ozonated water and say goodbye to bad breath Spa & Pool Treatment The Aqua-6 can be used on spas, hot tubs and wading pools up to 500 gallons. This allows chemical usage to be reduced significantly. Limit dry skin, red eyes, faded suits or green hair that is the result of chlorine exposure.
  • Page 13 • Place the diffuser stone near the center of the body of water for maximum ozone saturation. • Plug the Aqua-6 into a ground fault circuit interrupter (GFCI) protected outlet. • Turn the unit on and set it to the desired program function.

  • Page 14: Air Applications

    The Aqua-6 can be used for general air applications with the programmed timer functions. Mount the Aqua-6 on the wall and choose to release ozone periodically into the air for a hands-free air treatment. This can be particularly useful for pet odor, smoke odor or food odor.
  • Page 15 • Next, turn your car A/C on with recirculation turned on. • Choose Function #5. • This will run the Aqua-6 for 20 minutes and allow the car to circulate the ozone through the cooling system to help oxidize smells and allergens in the cooling vents.

  • Page 16: Maintenance

    • Unplug the unit before beginning. • Open the 6 screws on the back of the Aqua-6. • Four of the screws are located under soft pads.

  • Page 17: Troubleshooting

    Bad ozone board Sometimes this creates a burning smell. To fix the ozone board, purchase the Aqua-6 repair kit. You will still hear the high voltage pitch, but no air will be flowing No Ozone Bad air pump through the unit.

  • Page 18: Warranty

    The limited warranty set forth below applies to products manufactured by A2Z Ozone Systems Inc. - and sold by A2Z Ozone Systems or its authorized dealers. This limited warranty is given only to the first retail purchaser of such products and is not transferable to any subsequent owners or purchasers of such products.
  • Page 19 Phone ( ) ________________ Purchase/Product Info: Purchased Date: _______________________Date Installed____________________ Product Purchased: AQUA-6 MULTI-PURPOSE OZONE GENERATOR Comments / Questions: DO NOT FORGET TO CUT OUT, PLACE IN ENVELOPE AND MAIL TO THE FOLLOWING ADDRESS FOR INSTANT WARRANTY COVERAGE! A2Z Ozone Systems Inc.
