- Page 1 Si011186 REMOVAL PROCEDURE S E R V I C E M A N U A L 15000 Btu/h Class Outdoor Unit Non-Inverter Pair Type...

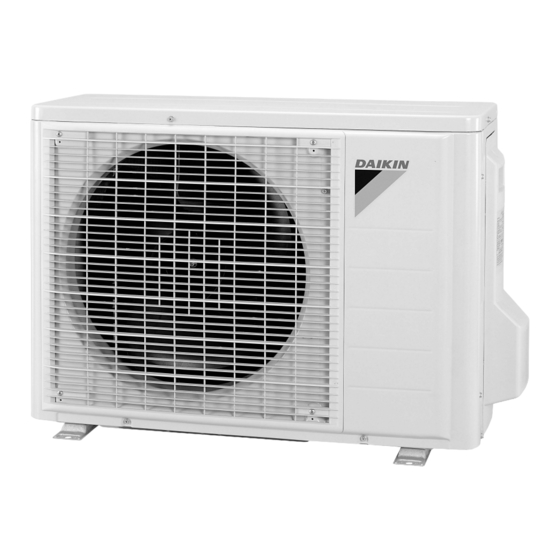

- Page 2 Service Manual Removal Procedure Outdoor Unit Applicable Model Cooling Only R15LV2S...
-
Page 3: Table Of Contents
Si011186 Table of Contents 1. Removal of Outer Panels / Fan Motor.............2 2. Removal of Electrical Component ASSY ..........10 3. Removal of Sound Blanket..............11 4. Removal of Capillary Tube..............12 5. Removal of Compressor ASSY.............13 Removal Procedure... -
Page 4: Removal Of Outer Panels / Fan Motor
Removal of Outer Panels / Fan Motor Si011186 1. Removal of Outer Panels / Fan Motor Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points 1. Appearance features (R15226) Take care not to cut your finger by the fins of the... - Page 5 Si011186 Removal of Outer Panels / Fan Motor Step Procedure Points Remove the 3 screws and remove the top Top panel panel. (R16334) Remove the 4 screws and remove the discharge grille. (R16335) The discharge grille has 4 hooks. (R16336) Removal Procedure...
- Page 6 Removal of Outer Panels / Fan Motor Si011186 Step Procedure Points Remove the 8 screws and remove the front panel. (R16337) Front panel Unfasten the hooks. The front panel has 4 hooks. Pull and remove the front panel. Hook (R16338) Removal Procedure...
- Page 7 Si011186 Removal of Outer Panels / Fan Motor Step Procedure Points 3. Remove the fan motor. Nut size: M6 Remove the nut of the outdoor fan. 10 mm (R12236) Outdoor fan (R15230) Remove the outdoor Align the mark of the fan.
- Page 8 Removal of Outer Panels / Fan Motor Si011186 Step Procedure Points Remove the screw and Put the fan motor lead wire remove the fan motor through the back of the fan fixing frame. motor when reassembling so as not to be entangled with the outdoor fan.
- Page 9 Si011186 Removal of Outer Panels / Fan Motor Step Procedure Points Release the fan motor lead wire from the hooks. (R16416) Remove the 4 screws and remove the fan motor. motor (R15235) Removal Procedure...
- Page 10 Removal of Outer Panels / Fan Motor Si011186 Step Procedure Points 4. Remove the right side panel. Remove the 7 screws and disconnect the connecting wire and the power supply wire. Remove the screw and remove the wire clamp. Wire clamp Connecting wire Power supply wire...
- Page 11 Si011186 Removal of Outer Panels / Fan Motor Step Procedure Points Remove the 4 screws on the right side. Right side panel (R15238) Remove the screw near the connection port. (R16418) Unfasten the hook of When reassembling, make the right side panel. sure to fit the hook.
-
Page 12: Removal Of Electrical Component Assy
Removal of Electrical Component ASSY Si011186 2. Removal of Electrical Component ASSY Procedure Warning Be sure to for wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Pull out the terminal to compressor (blue) for compressor (C terminal):... -
Page 13: Removal Of Sound Blanket
Si011186 Removal of Sound Blanket 3. Removal of Sound Blanket Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Untie the 2 strings and Preparation open the sound blanket. Remove the outer panels according to the “Removal of Outer Panels / Fan Motor”. -
Page 14: Removal Of Capillary Tube
Removal of Capillary Tube Si011186 4. Removal of Capillary Tube Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Before working, make sure that the refrigerant Warning gas is empty in the circuit. -
Page 15: Removal Of Compressor Assy
Si011186 Removal of Compressor ASSY 5. Removal of Compressor ASSY Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the nut and remove the terminal cover. - Page 16 Removal of Compressor ASSY Si011186 Step Procedure Points Before working, make sure that the refrigerant Warning gas is empty in the circuit. Be careful not to get yourself Be sure to apply nitrogen burnt with the pipes and other Discharge side replacement when parts that are heated by the...
- Page 17 Revision History Month / Year Version Revised contents 08/2012 Si011186 First edition...
- Page 18 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.
