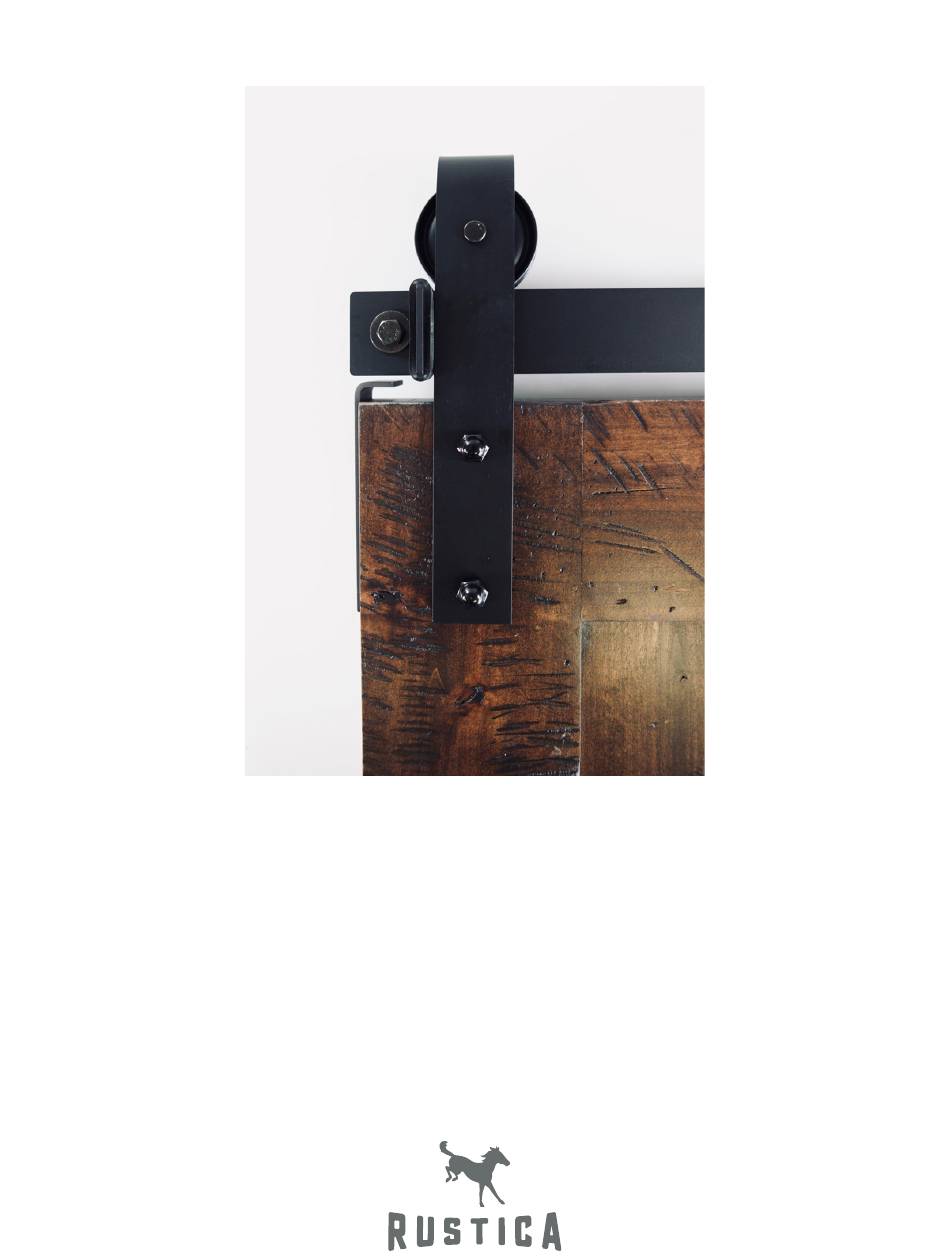

- Page 1 CLASSIC BARN DOOR HARDWARE ASSEMBLY INSTRUCTIONS...
-
Page 2: Recommended Tools
CLASSIC BARN DOOR HARDWARE RECOMMENDED TOOLS Drill with 1/8”, 1/4”, and 9/16” and 5/8” Socket Wrench with 3/8” Drill Bits, 1-1/8” Combination Wrench 9/16” and 5/8” Sockets Forstner Bit or 1-1/8” Spade Bit, and Phillips Bit Pencil Level Tape Measure... - Page 3 CLASSIC BARN DOOR HARDWARE PARTS Hanger Assembly Anti-jump Bracket Adjustable Spacers Lag Screw Anti-jump Block (For use Acorn Nut on bi-parting door systems) Fastener Screw Hard Stop & Rubber Door Guide Bumper Phillips Screw Splice Plate (needed only Track 1” Washer for tracks longer than 8’)
- Page 4 CLASSIC BARN DOOR HARDWARE ASSEMBLY INSTRUCTIONS NOTE: Doors using Floor Mount Door Guides will have a groove on the bottom. Ensure this groove is on the opposite end of the Door Hanger Installation. Lay the door with the front facing up on a flat, level surface.
- Page 5 CLASSIC BARN DOOR HARDWARE ASSEMBLY INSTRUCTIONS Drill two pilot holes all the way through the door for each hanger using a drill with an 1/8” drill door for each hanger using a drill with an 1/8” drill bit. Door Front Turn the door over.
-
Page 6: First Things First
CLASSIC BARN DOOR HARDWARE ASSEMBLY INSTRUCTIONS FIRST THINGS FIRST Check to see if the floor below the track is level. If the floor rises more than 1/2”, the door may rub or not slide open completely. If the floor is not level, measure from the highest point of the floor surface to the recommended track placement and adjust track placement accordingly. - Page 7 CLASSIC BARN DOOR HARDWARE ASSEMBLY INSTRUCTIONS Drill out the marked holes using a drill with a 1/4” drill bit. Attach one end of the track to the wall with a spacer, one hard stop, one lag screw, and one washer (provided) using a socket wrench with 9/16”...
- Page 8 CLASSIC BARN DOOR HARDWARE ASSEMBLY INSTRUCTIONS Hang the door. DOOR GUIDE INSTALLATION With the door in the closed position, ensure the door is hanging straight using a bubble level. Position the Door Guide part way into the groove in the bottom of the door.
- Page 9 CLASSIC BARN DOOR HARDWARE ASSEMBLY INSTRUCTIONS ANTI-JUMP GUIDE INSTALLATION Place the Anti-Jump bracket on the door side, moving the bracket up until it is between 1/8” and 1/16” from the bottom edge of the rail. Mark the placement with a pencil.
-
Page 10: Don't Be A Stranger
WE LOVE WHAT YOU’RE DOING WITH THE PLACE CONGRATULATIONS ON YOUR DECISION TO BRING HOME AN AMERICAN MADE PRODUCT OF THE HIGHEST QUALITY. WE HOPE YOUR DIY DOOR SYSTEM BRINGS ART AND FUNCTION INTO YOUR LIFE. DESIGNED AND CRAFTED ENTIRELY IN THE U.S.A.
