Soft Close System
INSTALLATION INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Soft Close System and is the answer not in the manual?

Questions and answers

Related Manuals for RUSTICA Soft Close System

Summary of Contents for RUSTICA Soft Close System

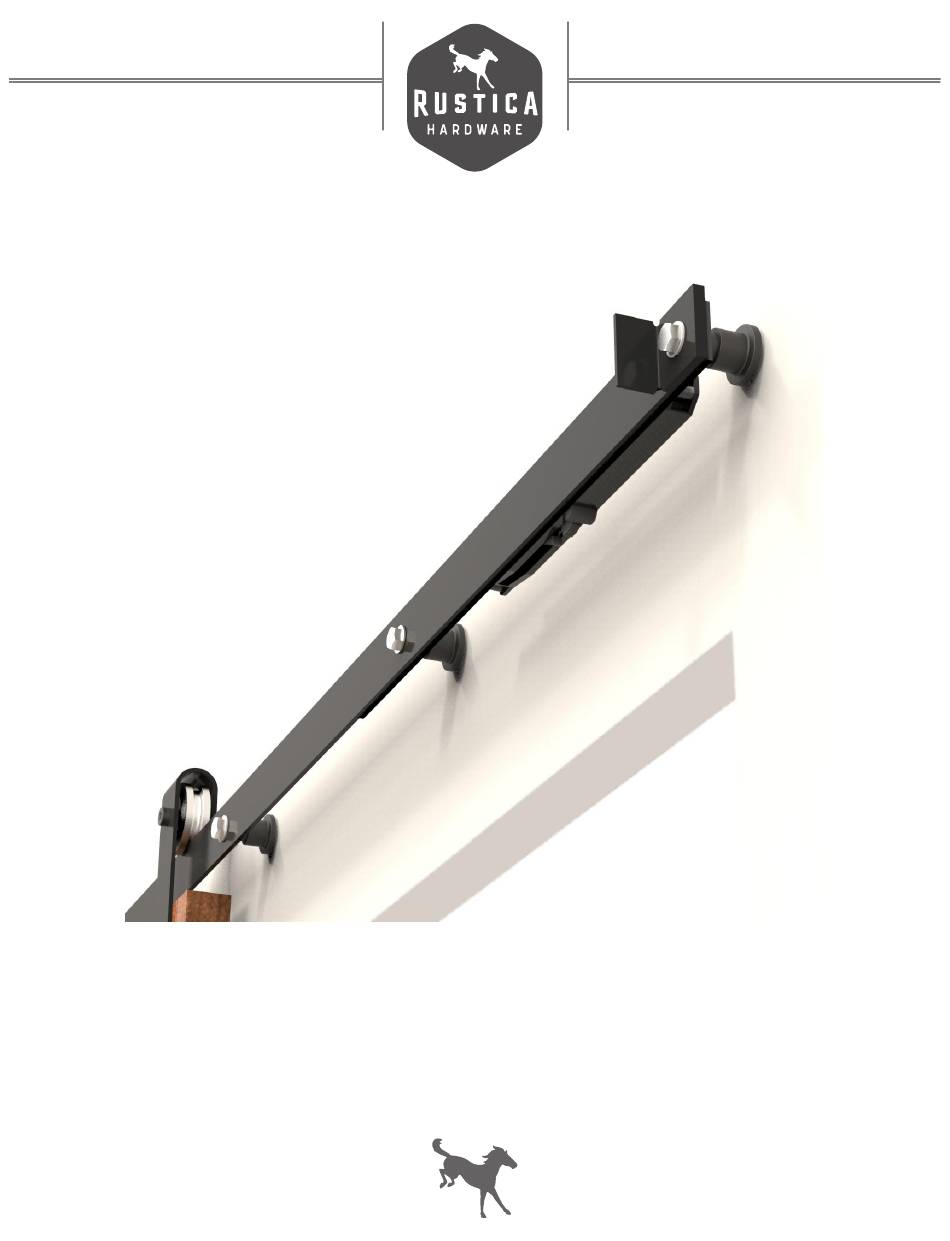

  • Page 1 Soft Close System INSTALLATION INSTRUCTIONS...
  • Page 2 SOFT CLOSE SYSTEM Recommended Tools Drill with 1/8” Drill Bit and Socket Wrench with Phillips Screw Driver Phillips Bit 9/16” Socket SOFT CLOSE SYSTEM Parts B.(1) A.(1) C.(4) D.(2) PARTS A. Soft CloseAssembly R B. Soft Close Assembly L C. Phillips Screw D.
  • Page 3 SOFT CLOSE SYSTEM Installation Instructions 1. Inspect Soft Close Mechanisms (A and B) to to ensure there is a left and right assembly (Figure 1). Set aside. Figure 1 2. Remove the last two lag screws, washers, and hard stop from the track (Figure 2).
  • Page 4 SOFT CLOSE SYSTEM Installation Instructions 4. Place the soft close mounting bracket and mechanism against the back of the track with the soft close mechanism facing the wall (Figure 4). Figure 4 5. Reinstall the lag screws, washers and hard stop (Figure 5).
  • Page 5 SOFT CLOSE SYSTEM Installation Instructions 10. To adjust the tension for the soft close, turn the phillips screw on the bottom of the mechanism using a phillips screw driver (Figure 7). Figure 7 RUSTICAHARDWARE.com...
  • Page 6 WE LOVE WHAT YOU ARE DOING WITH THE PLACE CONGRATULATIONS ON YOUR DECISION TO BRING HOME AN AMERICAN MADE PRODUCT OF THE HIGHEST QUALITY. WE HOPE YOUR Soft Close System BRINGS ART AND FUNCTION INTO YOUR LIFE. Designed and crafted entirely in the U.S.A.
